Hegel V10 Phono Preamplifier
Warning! For qualified personnel only!
Instructions for how to:
- Set the MC impedance freely between 50 and 500 ohms
- Set the MC impedance to 33 ohms
- Add an additional 6dB to the MC gain stage
Internal Settings
1. Turn the V10 on its
head on a soft surface
2. Remove the 4 screws
holding the lid in place
using a 2mm hex key
3. Turn the V10 the right
side up again, and careful-
ly slide the lid backwards
off the chassis
You will need:
- 1x V10
- 1x 2mm Hex key (5/64" Allen key US)
- 1x small flat head screwdriver
- 1x tweezers
- 1x soft surface
Warning!
Remove power cable
before taking of the top cover!
Close to the input terminals
you will find:
- 2 potentiometers
- 2 jumpers
These can be adjusted
Advertisement
Related Manuals for Hegel V10
Summary of Contents for Hegel V10

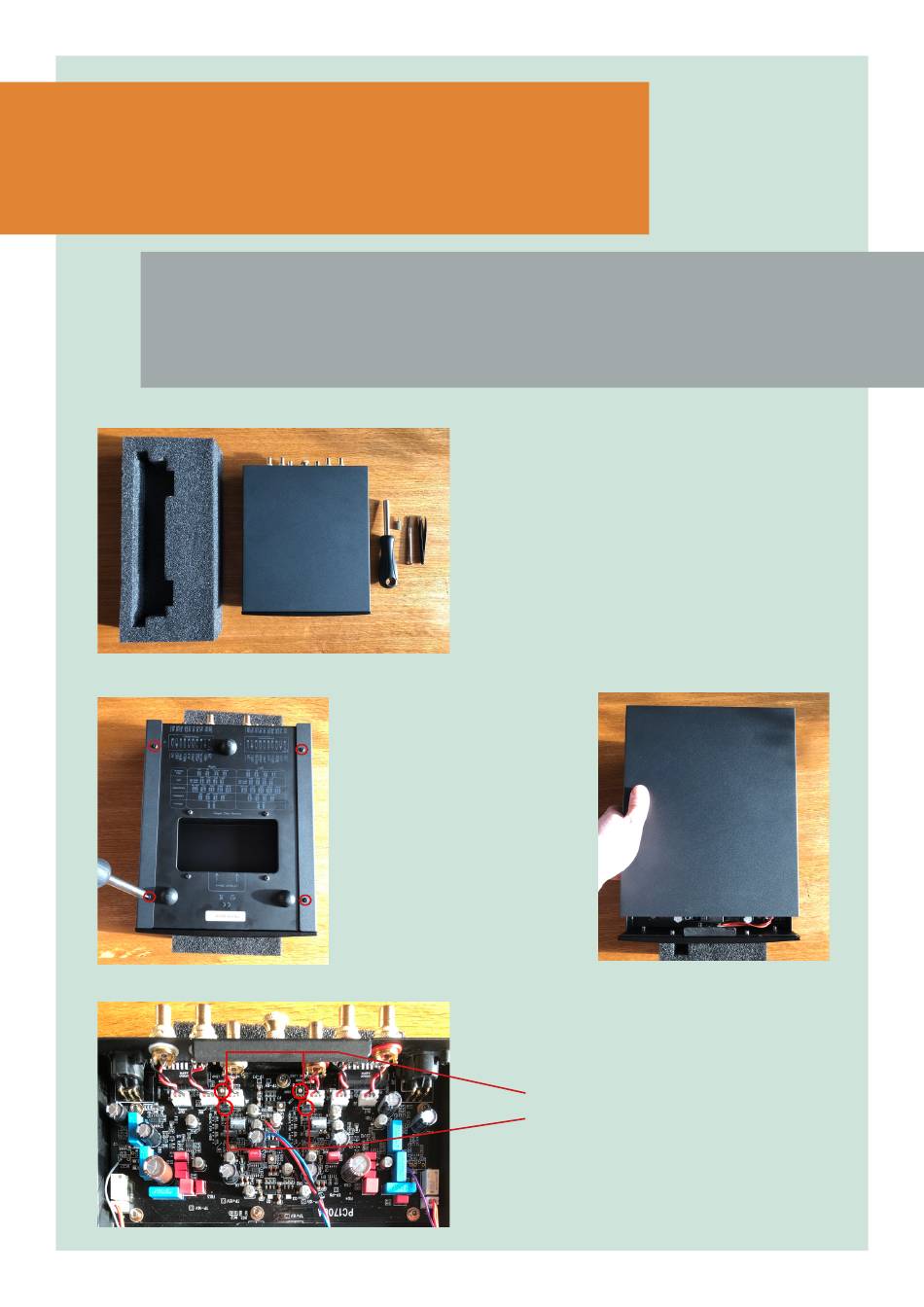

- Page 1 - 1x soft surface Warning! Remove power cable before taking of the top cover! 1. Turn the V10 on its head on a soft surface 2. Remove the 4 screws holding the lid in place using a 2mm hex key 3.
