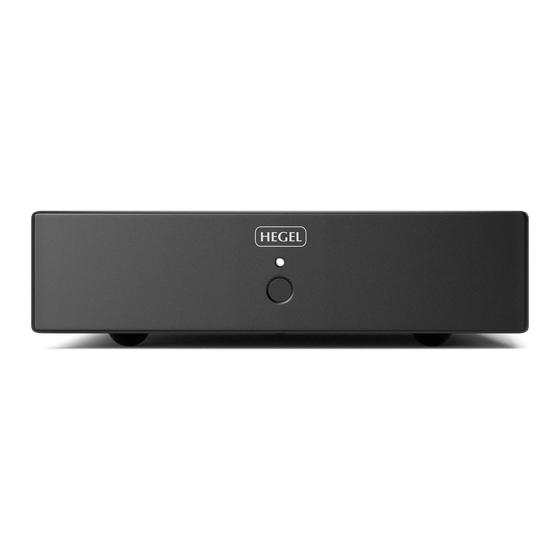

Summary of Contents for Hegel V10
- Page 1 V10 User Manual...
- Page 2 Therefore, we are constantly looking for this moment. ways to lower distortion and noise. With the Hegel V10 we want to make this By lowering the noise floor, we unveil all special experience even better. Developed the subtle layers in the music, while lower-...
-
Page 3: Table Of Contents
Index What’s in the box Quickstart General Use Connections Setup Special Functions General Information Additional Information... -
Page 5: What's In The Box
What’s In The Box Phono Preamplifier Power Adapter User Manual Protective Cover... -
Page 6: Quickstart
Quickstart 1. Connect your amplifier Connect with RCA or XLR cables from the V10 to a line input on your amplifier Right 2. Connect your turntable Connect RCA cables from the turntable to the V10 Use either the MM or the MC input depending on... - Page 7 Quickstart 3. Connect the Power Adapter M30103 4. Turn on the Phono Preamplifier Power Switch...
-
Page 8: General Use
NOTE: When adjusting the DIP switches, 2: High sensitivity make sure the power is turned off. Use this mode if the V10 switches off even though you are playing music 3: Disabled The V10 will not automatically switch off... -
Page 9: Connections
AC Power Connection • AC Power adapter 2x 18VAC 300mA NOTE: The RCA output signal level is 6dB 230V/120V/100V AC depending on lower than the XLR output signal level. country. • The AC Power Connection is found under- neath the V10. -
Page 10: Setup
NOTE: When adjusting the DIP switches, make sure the power is turned off. Reverse numbering On the V10 the left and right side DIP switch- How to Adjust es are numbered in reverse order. The DIP switches are adjusted by switching... - Page 11 Impedance The MM input has a gain of 40dB while the For MC cartridges adjusting the impedance MC input has a gain of 60dB. With the V10 according to the cartridge specifications can gain settings you can increase the output have an impact on the sound.
-
Page 13: Special Functions
That is why, in addition to the universal have made it possible to set the impedance DIP switch gain settings, it is possible to of the V10 freely between 50 and 550 increase the gain of the V10’s MC amplifier ohms. -
Page 14: General Information
Place the power adapter in the bottom of 46dB MC: 54dB / 59dB / 64dB / the original cardboard box. 66dB Insert the V10 phono pre-amplifier into the MC Load Impedance 100 ohm / 300 ohm / 47kohm plastic bag. -
Page 15: Additional Information
Additional Information Warning Use and Placement Hegel products should only be opened The Hegel V10 should be placed on a flat, or serviced by certified technicians. The hard surface for proper cooling. The phono devices contain electronic components pre-amplifier should not be placed next to or that may cause severe electric shock. - Page 16 www.hegel.com...
