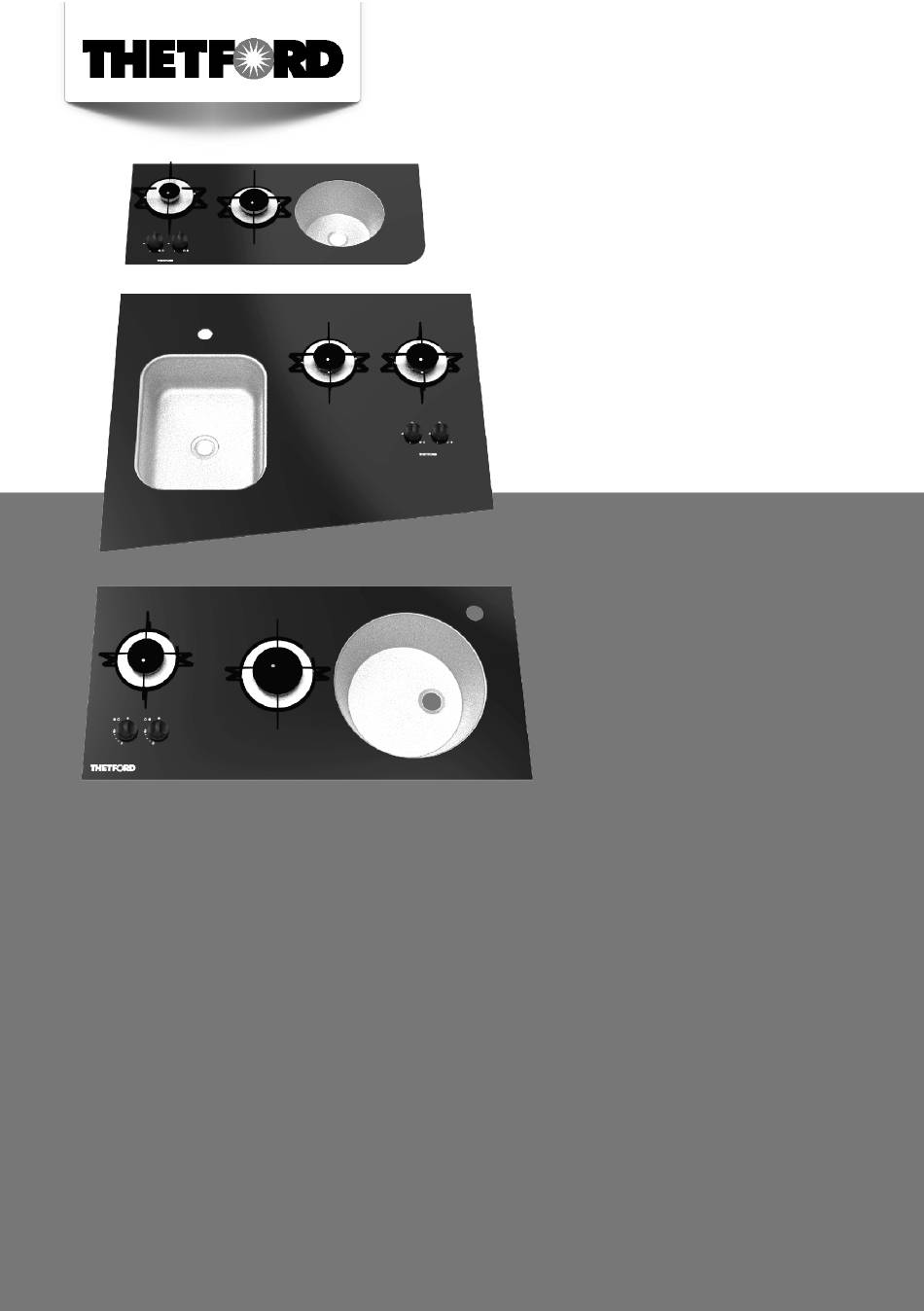

- Page 1 INSTALLATION MANUAL HOB-SINK COMBINATION 101 series...
-
Page 2: Table Of Contents
Service & questions......................15 1. Introduction General This is the installation manual for the Thetford SCU10171, SCU10182 and SCU10198. The manual is meant for qualified installers who will install the appliance in a caravan, camper or holiday home. Read the information and instructions carefully and follow them strictly to install the appliance safely and correctly. -
Page 3: Safety
Attention. Important information. Note. Additional information. Video. Additional instruction video available. 2. Safety READ THESE INSTRUCTIONS FOR USE CAREFULLY . FAMILIARISE YOURSELF WITH THE APPLIANCE. KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE. General Risk of serious injury through burning, explosion, clamping, electrocution, suffocation and poisoning or damage to the product. - Page 4 ■ The surrounding surfaces must be able to withstand the allowable temperature rise of 65°C above ambient temperature, as specified in the EN30-1-1 standard and in accordance with the design of this unit. ■ The temperature of the surrounding surfaces may rise if there are other additional devices besides the appliance.
-
Page 5: Serviceability
In terms of serviceability, this means that a dealer or authorised Thetford service partner must be able to remove and re-install the Thetford product within the time that is allowed according to the Thetford time-list, using standard tools and equipment. -
Page 6: Technical Specifications
4. Technical specifications Table 1: Burner specifications SCU10171 SCU10182 Gas input Injector Gas input Injector g/hr g/hr Gas burners 1 x 0.99 1 x 71 0.52 1 x 1.44 1 x 104 0.61 1 x 1.44 1 x 104 0.61 1 x 2.27 1 x 163 0.77... -
Page 7: Before Installation
This appliance is suitable for use with LPG [Liquefied Petroleum Gas] and should not be used with any other gas. Table 3: Gas category Class 3 Appliance Gas category & Pressure CAT I CAT I 3 + (28-30/37) 3 B/P (30) BUTANE (G30) 28 –... -
Page 8: Cabinet Requirements
Cabinet requirements The location must provide: ■ Wood cabinetry and worktop. ■ Support for at least the weight of the appliance as stated in Technical specifications plus any items placed on top. The total weight placed on top of the hob should not exceed 10kg. ■... - Page 9 If you are unable to maintain the minimum distances mentioned in the table below, protect with non-flammable material. Table 4: Cabinetry protection dimensions Model / ① ② ③ ④ Dimension (mm) SCU10171 SCU10182 SCU10198 Cabinetry ventilation and protection dimensions Maintain provision for the dispersal of unburnt gas beneath the appliance. Ensure any gas drop hole is located away from the burners.
-
Page 10: Installation Dimensions
contained cabinet which is not connected to externally vented chambers in adjacent furniture, other than the gas drop hole described above. Protect the underside of the appliance with a heat shield made from non- combustible material, if the space below the hob is used for storage or another appliance. - Page 11 SCU10182 dimensions: 824mm 55mm 358mm 365mm 55mm 14mm 16mm 100mm 170mm 178mm 376mm...
-
Page 12: Installation
SCU10198 dimensions: 815mm 35mm 360mm 170mm 190mm 57mm 102mm 83mm 51mm Schematic overview of mounting the appliance into the cabinet ■ Position the unit so it is centred and level in the cut-out ■ Attach the unit to the cabinet with screws where the holes for the screws are positioned 6. -
Page 13: Install The Appliance
Prepare See chapters 'Technical specifications' and 'Before installation' for more information. ■ Prepare the cabinet and worktop for the appliance. ■ Ensure the air gaps are according to specifications. ■ Ensure the gas dispersion hole has the correct size and is not blocked. Install the appliance ■... -
Page 14: After Installation
7. After installation Read the applicable instructions in chapter Safety first. Visual checks Check if: ■ All packaging materials have been removed. ■ The appliance is placed, mounted and levelled on a stable structure. ■ Vents and gas dispersal hole are not blocked/obstructed. ■... -
Page 15: Service & Questions
For our warranty clause, please refer to the conditions mentioned on www.thetford.com. Declaration of Conformity Thetford hereby declares that this product is in compliance with the essential requirements and other relevant provisions of the applicable Regulations, Directives and Standards. A copy of the Declaration of Conformity can be found at www.thetford.com. - Page 16 T +61 3 9358 0700 T +86 755 8627 1393 T +46 31 336 35 80 F not available F +86 755 8627 1673 F not available E infoaus@thetford.com.au E info@thetford.cn E infos@thetford.eu www.thetford.com.au www.thetford.cn Copyright 2016-2025 Thetford B.V. All rights reserved. SINS2105/0125-V06...
