BUILD IN APPLIANCES
ALL GAS (LPG) AND DUAL FUEL MODELS
CAUTION – ALL OUTER SURFACES WILL GET HOT WHEN IN USE

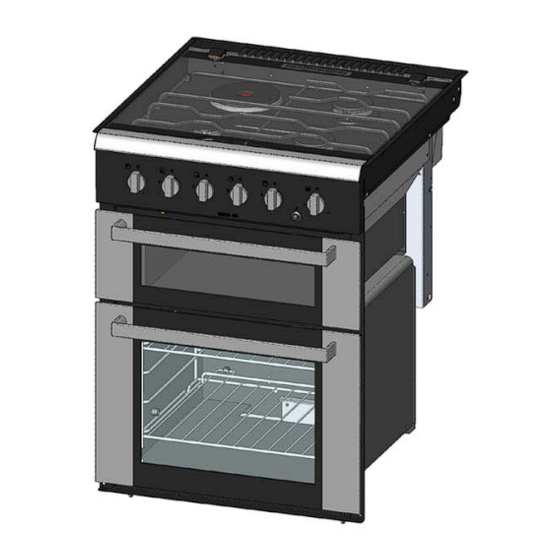

MODELS
S~CK12000 – 4 Burner (All Gas)
S~CK13000 – 3Burner+Hotplate (Dual Fuel)
USER AND INSTALLATION INSTRUCTIONS
PLEASE READ THOROUGHLY AND KEEP FOR FUTURE REFERENCE
FOR USE IN
GB, CH, ES, PT, IT, BE, FR, IE, DK, FI, GR, NL, NO, DE, SE, SL
THETFORD LIMITED
Unit 19, Oakham Drive, Parkwood Industrial Estate
Rutland Road, Sheffield S3 9QX, ENGLAND.
TEL: + 44 (0) 114 273 8157
FAX: + 44 (0) 114 275 3094
1
Advertisement
Related Manuals for Thetford S-CK12000
Summary of Contents for Thetford S-CK12000
- Page 1 PLEASE READ THOROUGHLY AND KEEP FOR FUTURE REFERENCE FOR USE IN GB, CH, ES, PT, IT, BE, FR, IE, DK, FI, GR, NL, NO, DE, SE, SL THETFORD LIMITED Unit 19, Oakham Drive, Parkwood Industrial Estate Rutland Road, Sheffield S3 9QX, ENGLAND.
- Page 2 • Ensure that all electrical cables are routed directly away and well clear of this appliance and other heat sources. • If it is not possible to install the appliance as per our recommendations, refer to Thetford / Spinflo for guidance.
- Page 3 Fig 3 – Installation Cabinet CONSTRUCTION MATERIALS ALL COOKING APPLIANCES BECOME HOT DURING USE. IT IS IMPORTANT THE INSTALLER VERIFIES THE FURNITURE CONSTRUCTION MATERIAL AND THAT IT IS SUITABLE FOR THE APPLICATION - I.E. PLASTIC MATERIALS USED IN THE CONSTRUCTION MAY HAVE A SOFTENING POINT LOWER THAN THE MAXIMUM ALLOWABLE TEMPERATURE RISE SPECIFIED IN THE EUROPEAN STANDARD (EN30).
- Page 4 SPECIFICATION • Use only the Gas Pressures specified This appliance is approved for use with Propane and Butane. We • recommend using Propane gas for this appliance. Butane gas may be used, although the appliance performance may • be compromised when the ambient temperature is below 10°C. Butane should not be used when ambient temperature is below 5°C •...
- Page 5 SPECIFICATION • Use only the Gas Pressures specified This appliance is approved for use with Propane and Butane. We • recommend using Propane gas for this appliance. Butane gas may be used, although the appliance performance maybe • compromised when the ambient temperature is below 10°C. Butane should not be used when ambient temperature is below 5°C •...
- Page 6 INTRODUCTION This appliance must be installed in accordance with the local, national and European regulations in force. Particular attention shall be given to the requirements regarding ventilation. Read the instructions before installing or using the appliance The appliance is designed for either high or low level installations. Failure to install the appliance correctly could invalidate any warranty or liability claims and lead to prosecution.
- Page 7 OPERATION To light: Push in the control knob and turn to full rate – see Fig.1. Hold a lighted match or taper to the burner and push the control knob in and hold. It is necessary to hold the knob depressed after the burner has ignited for approximately 10 - 15 seconds, to allow the thermocouple probe to reach temperature, before releasing the knob.
- Page 8 OPERATION • Children should be supervised to ensure they do not play with the appliance • Glass lids may shatter when heated. Turn off the hotplate and allow it to cool before closing the glass lid. • Remove all spillage from the surface of the glass lid before opening. •...
- Page 9 OPERATION • The appliance is fitted with a cooling system. The cooling fans will automatically switch on a few minutes after the grill and/or oven is turned on, and will remain on even after the appliance has been switched off. •...
-
Page 10: Operation
OPERATION Cooking Guidelines Best results will be obtained by the shelf positions in this guide. Although the oven heats up quickly, it is recommended a 10 minute preheat be allowed. The oven should reach full temperature in 15-20 minutes. Most cookery books give details of the shelf positions and gas mark settings for each recipe. If in doubt about a recipe you intend to use, study the recipe carefully then find a similar dish in our guide and use our shelf position and gas mark setting recommendation. - Page 11 INSTALLATION Regulations and Standards In your own interest of safety, it is law that all gas appliances are installed and serviced by a competent registered person who will undertake to work to safe and satisfactory standards. Failure to install the appliance correctly could invalidate any warranty or liability claims and lead to prosecution.
- Page 12 INSTALLATION Position A horizontal difference of 200mm must exist between the edge of the burner and combustible material unless protected by a layer of non-combustible material. Shelves or cabinets above the appliance should be a minimum of 500mm measured from the burner port – see Fig. 2. Unless the appliance is fitted with a glass lid a non-combustible heat shield (splash back) must be fitted onto the rear wall directly behind this appliance.
- Page 13 INSTALLATION Connection - Electrical Ensure that all electrical cables and wires are routed well clear of any heat source, including this appliance. Excess cord must be routed away from the appliance and must not come into contact with the oven or grill body. The plugs must be accessible after installation to aid servicing.
