- Page 1 AIPK1|Single Door 2-Wire Video Intercom Kit Quick Start Guide June 21, 2023...

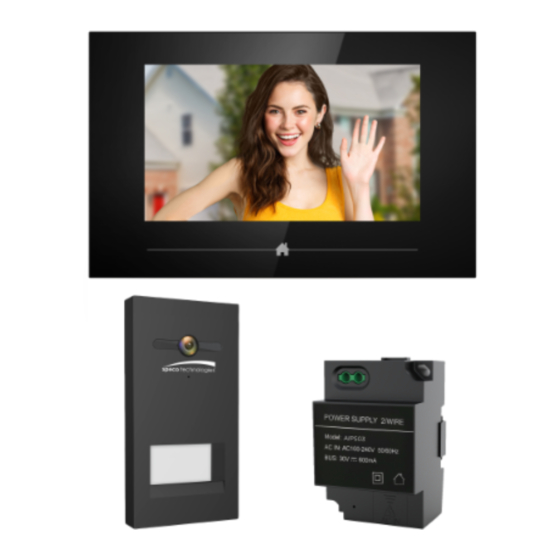

- Page 2 Quick Start Guide Kit Includes 1 – Indoor Station: AIIS07 1 – Outdoor Station: AIOS06 1 – Power Supply: AIPS03 Features Ø Call, message, capture photos and record functionality. Ø Door Lock/Unlock feature. Ø Able to monitor doors. Ø Password protected. Ø...
- Page 3 -600TVL doorbell camera -Front image 1) Calling residents- To initiate a call, press the upper/lower button. This will start the call to the Indoor monitor. The ringtone will repeat for 30 seconds until the call is answered. 2) Unlock- The door can be unlocked through either the Indoor Monitor or by the external push button. 3) Lock- The door can be locked through the Indoor Monitor.
- Page 4 Power Supply Wiring 1) Begin wiring the power supply by first stripping (2) two-wire cables and stripping (1) AC power cord. Remove the AC power cap. Loosen the top screws and connect a striped AC power cord (twin-core power line) through the 2-pin connector. Tighten it after putting the wires through the two-pin connector.
- Page 5 2) Begin by wiring the indoor station to the power supply. On the back of the indoor station take out the phoenix connector and loosen up the first two pins. This is where the wires for Bus-A and Bus-B will go.
- Page 6 Speco Technologies is constantly developing and improving products. We reserve the right to modify product design and specifications without notice and without incurring an obligation. Rev. 6/21/2023. We are not responsible for typographical errors. ©2023 Speco Technologies. All rights reserved.
