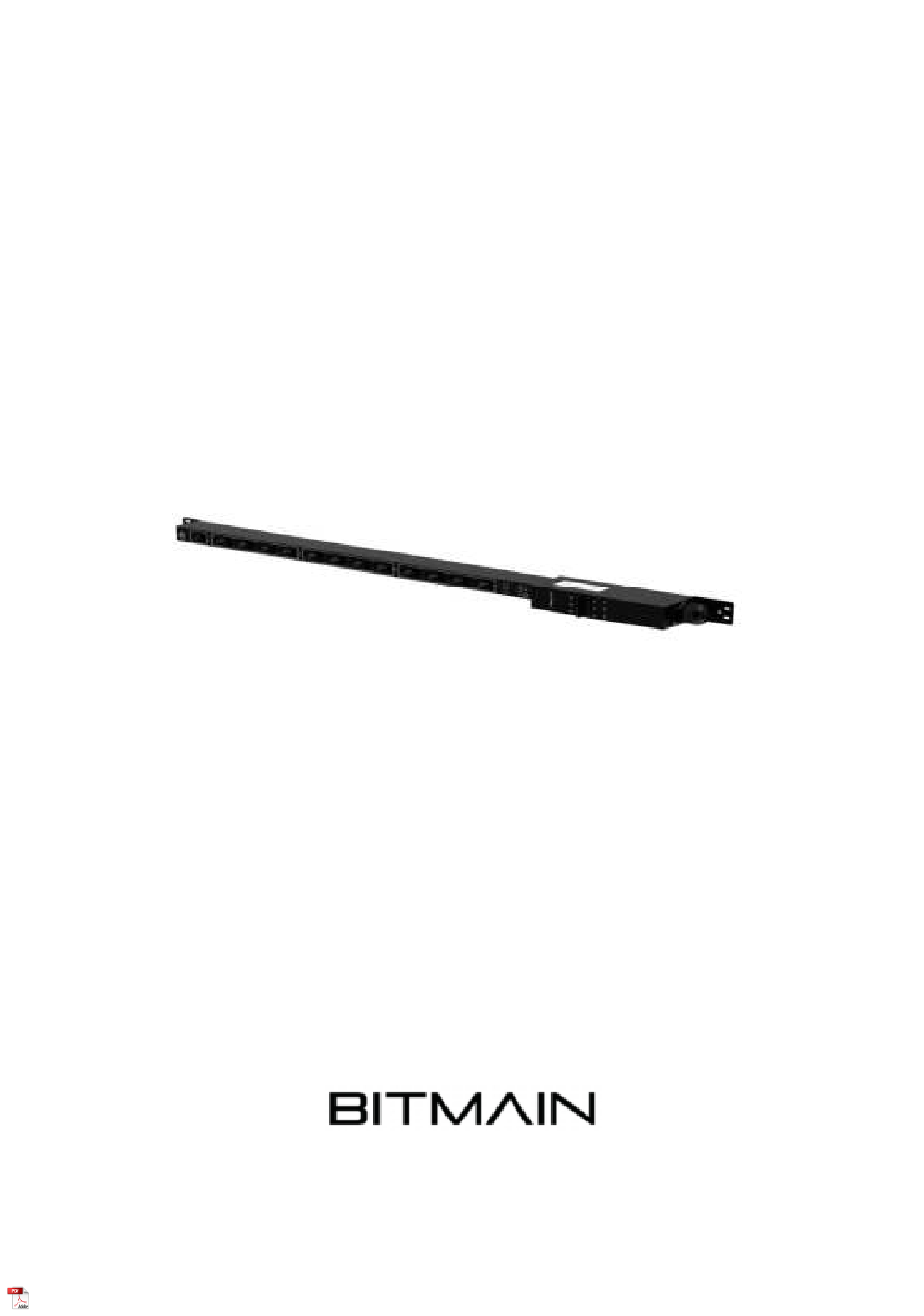

- Page 1 ANTPDU PW12V1 Product Manual Dec. 2023 BITAMIN TECHNOLOGIES INC. www.bitmain.com...
-
Page 2: Product Specification
PW12V1 Product manual 1.Product specification： Product Name ANTPDU information Model PW12V1 Input parameter Input voltage 346~480VAC,3P+N+PE Frequency 50/60Hz Input current 3Phase 100A Output parameters Output rating 83kW Output voltage 3Phase 346~480VAC Output voltage 200~277VAC Single phase Output bits 12 Port 6pin+1Port 4pin... -
Page 3: Product Installation
3. Overview PW12V1 is a new generation of supercomputer power distribution unit. The product is equipped with 12 output ports, which can realize three-phase or single-phase voltage and current output of each output socket according to the actual needs of customers. Equipped... - Page 4 PW12V1 Product manual equipment, only to remind customers that each phase load balance, three-phase imbalance will correspondingly increase the overall loss, the need to adjust according to the current display is to try to access the same number of miners in each group.
- Page 5 PW12V1 Product manual Caution ！ PDU Installation Please try to install the outlets centered on the shelf so that each cable is long enough to connect to the miner. ‐ 5 ‐ ...
- Page 6 PW12V1 Product manual 4.7 Three‐phase unbalance alarm light schematic ！ Caution When the red light is on, the user should pay attention to the current imbalance display, need to check whether the server is load balanced, the product should be used to test the load current imbalance light situation.
