Document No.
9100-127-2676-99 Rev. A
Release Date: 3/1/16
_____________________________________________________________________
INSTALLATION AND MAINTENANCE
MANUAL
FOR
D1RW-ANT-01
GPS Antenna
For use with D256-6001-PEC
Refer to the Photocell Manual for additional information
Overview:
The GPS Antenna allows the controller to synchronize to a Satellites GPS pulse.
By locking on to the position of the Satellites the system will flash on every edge
by means of the pulse per second pulse.
The system can also be used when two structures are to be synchronized together
to flash at the same time.
Parts Supplied:
Qty. 1 Manual

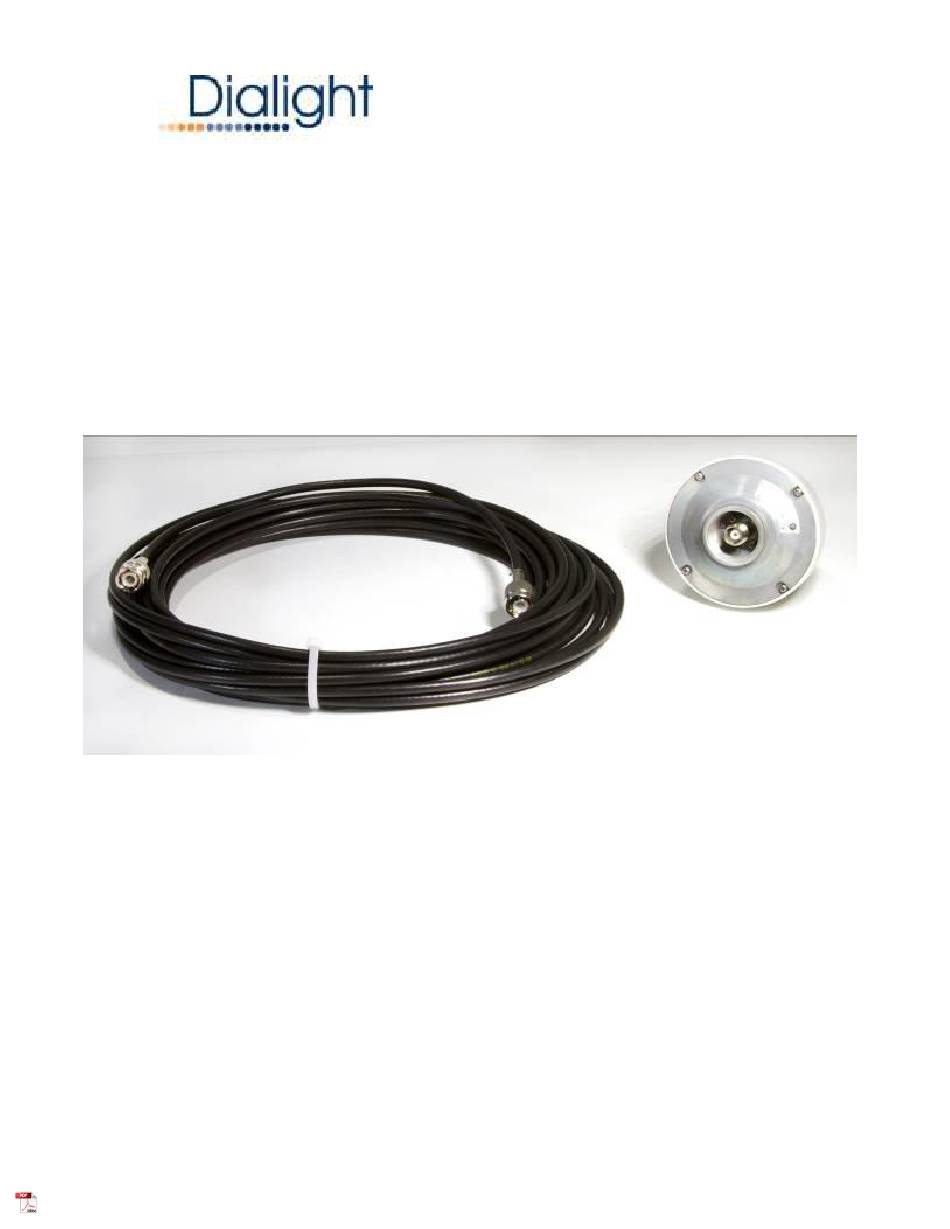

Qty. 1 GPS Bullet Antenna
Qty. 1 TNC to BNC 30foot (10meters) cable
Qty. 1 Galvanized steel ¾ inch adaptor
