Dialight VIGILANT Series Manual

Hide thumbs Also See for VIGILANT Series:
Table of Contents

Advertisement

Quick Links

Download this manual
Document: 9100-127-3481-99
Revision D
Release Date: 07/18/2022
VIGILANT
SERIES
®

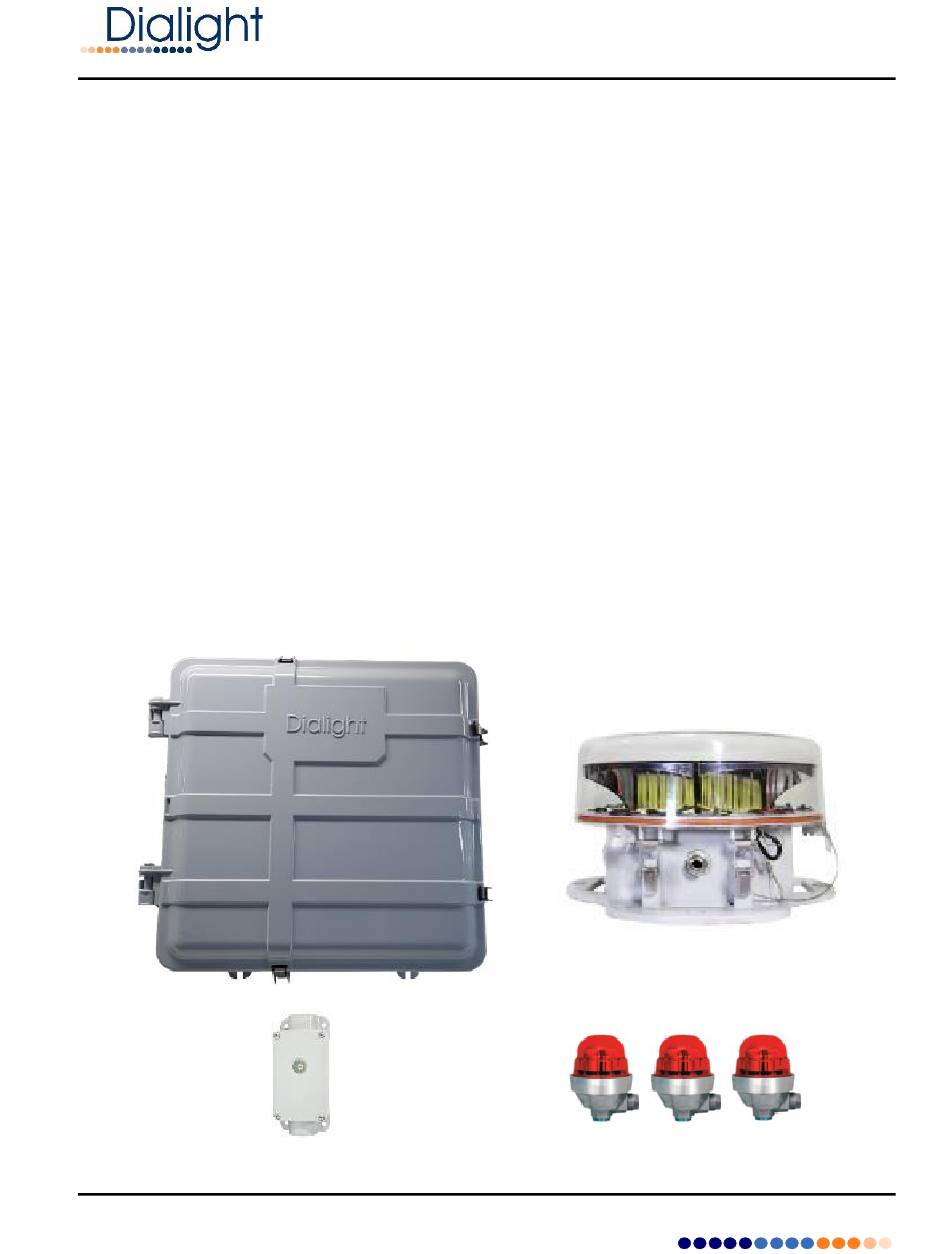

Dual Red/White (L-864/865)
White Lighting System (L-865)
D1xWCTR4x9 - Controller/Power Supply
with
D1xWFH408 or D1xWFH409 – Flashhead
RTOxR280x – L-810 DC Sidelights
D2566000PEC – Photocell
FAA Type D1 or E1 Systems
1501 Route 34 South, Farmingdale, NJ 07727
Tel: (732) 919-3119 Fax: (732) 751-5778 www.dialight.com
Page 1 of 34

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VIGILANT Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dialight VIGILANT Series

Summary of Contents for Dialight VIGILANT Series

  • Page 1 D1xWCTR4x9 - Controller/Power Supply with D1xWFH408 or D1xWFH409 – Flashhead RTOxR280x – L-810 DC Sidelights D2566000PEC – Photocell FAA Type D1 or E1 Systems 1501 Route 34 South, Farmingdale, NJ 07727 Tel: (732) 919-3119 Fax: (732) 751-5778 www.dialight.com Page 1 of 34...
  • Page 2  The cable information provided are for tower structures of less than 500 feet. SAVE THESE INSTRUCTIONS!! SAVE THESE INSTRUCTIONS!! 1501 Route 34 South, Farmingdale, NJ 07727 Tel: (732) 919-3119 Fax: (732) 751-5778 www.dialight.com Page 2 of 34...

  • Page 3: Table Of Contents

    NSPECTION : ............................34 OMMISSIONING HOTOGRAPHS : ................................ 34 ECHNICAL UPPORT : ..............................34 ERIAL UMBER ODING : ................................34 EVISION ISTORY 1501 Route 34 South, Farmingdale, NJ 07727 Tel: (732) 919-3119 Fax: (732) 751-5778 www.dialight.com Page 3 of 34...

  • Page 4: Warranty

    RTOCR2800x +48VDC L-810 LED Sidelight w/IR, Single or Double D2566000PEC Medium Intensity Photocell System not listed, please contact Dialight technical support at 844-436-5422. 1501 Route 34 South, Farmingdale, NJ 07727 Tel: (732) 919-3119 Fax: (732) 751-5778 www.dialight.com Page 4 of 34...

  • Page 5: Introduction

     Resetting system & external GPS option  Display Events and Alarm Descriptions  Alarm list and possible causes  INEM installation and setup 1501 Route 34 South, Farmingdale, NJ 07727 Tel: (732) 919-3119 Fax: (732) 751-5778 www.dialight.com Page 5 of 34...

  • Page 6: Notice And Warnings

    LIFT WITH YOUR LEGS AND NOT YOUR BACK  KEEP THE ENCLOSURE CLOSE TO YOUR BODY WHILE CARRYING  KEEP YOUR BACK STRAIGHT WHEN LOWERING 1501 Route 34 South, Farmingdale, NJ 07727 Tel: (732) 919-3119 Fax: (732) 751-5778 www.dialight.com Page 6 of 34...

  • Page 7: Dimensions For Mounting The Enclosure

     Six (6) ¾-inch NPT entrance holes provided on bottom side of enclosure Dimensions for Mounting Photocell:  Four (4) ꝋ0.22” (5.6mm) thru holes provided for mounting 1501 Route 34 South, Farmingdale, NJ 07727 Tel: (732) 919-3119 Fax: (732) 751-5778 www.dialight.com Page 7 of 34...

  • Page 8: Lashheads

    Document: 9100-127-3481-99 Revision D Release Date: 07/18/2022 Dimensions for Mounting the D1xW L864/865 Flashheads: D1xWFH409 Flashhead Weight 21 lbs.(9.5kg) D1RWFH408 Flashhead 1501 Route 34 South, Farmingdale, NJ 07727 Tel: (732) 919-3119 Fax: (732) 751-5778 www.dialight.com Page 8 of 34...
  • Page 9 Multiple grounding points provided in the enclosure for protective and functional Earth/Ground connections. Flash Head Marker Lights, Input Voltage L810 Photocell Dry Contact Monitoring Earth Ground 1501 Route 34 South, Farmingdale, NJ 07727 Tel: (732) 919-3119 Fax: (732) 751-5778 www.dialight.com Page 9 of 34...

  • Page 10: Electrical Specifications

    The system has built in Lightning and RF immunity at each section, but for it to be effective proper ground connection techniques must be used. 1501 Route 34 South, Farmingdale, NJ 07727 Tel: (732) 919-3119 Fax: (732) 751-5778 www.dialight.com Page 10 of 34...

  • Page 11: System Cable Specifications

    Maximum distance is 500 feet (152 meters). Specification for 48Vdc L810 Side Marker Cable: Requires three conductors of 18AWG. Typical color code is Red, Black and Green. 1501 Route 34 South, Farmingdale, NJ 07727 Tel: (732) 919-3119 Fax: (732) 751-5778 www.dialight.com Page 11 of 34...
  • Page 12 Failure to meet any of the above cable requirements could void all factory warranties. If in doubt please contact your sales representative or Dialight.com. 1501 Route 34 South, Farmingdale, NJ 07727 Tel: (732) 919-3119 Fax: (732) 751-5778 www.dialight.com Page 12 of 34...

  • Page 13: Controller/Power Supply Component Layout

    LIGHTNING PROTECTION BOARD FILTER/SURGE BOARD RED LED DRIVER DRY CONTACT ALARM MODULE RS485 RS485 CONNECTOR BOARD LCD MODULE (door mounted) SIDELIGHT MODULE (door mounted) 1501 Route 34 South, Farmingdale, NJ 07727 Tel: (732) 919-3119 Fax: (732) 751-5778 www.dialight.com Page 13 of 34...

  • Page 14: Connection Of Input Power

    NOTE: The load and voltage loss of the cable must be quantified before selecting the cable size requirements. See electrical specifications for details. 1501 Route 34 South, Farmingdale, NJ 07727 Tel: (732) 919-3119 Fax: (732) 751-5778 www.dialight.com Page 14 of 34...

  • Page 15: Connection Of The Side Marker Lights

    Voltage to Individual L810 Pin 4 -48Vdc Voltage to Individual L810 NOTE: A maximum of 1.2 amps can be monitored through each port connection. 1501 Route 34 South, Farmingdale, NJ 07727 Tel: (732) 919-3119 Fax: (732) 751-5778 www.dialight.com Page 15 of 34...

  • Page 16: Photocell Connection

    Release Date: 07/18/2022 Photocell Connection: One photocell is used for all Dialight Medium Intensity Controllers, p/n D2566000PEC. No other photocell can be used as it will damage the system and void the warranty.  Open supplied photocell enclosure by removing four screws.

  • Page 17: Flashhead Cable Preparation

    5. Strip conductors back 3/8” for termination into terminal block. 6. Connect the four conductors to terminal block and ground connection as detailed the next section. 1501 Route 34 South, Farmingdale, NJ 07727 Tel: (732) 919-3119 Fax: (732) 751-5778 www.dialight.com Page 17 of 34...

  • Page 18: Flashhead/Controller Cable Connections

    White Connections (WHT) WHITE LED’s negative (Cathode connection) - Pin 3 (White/Black wire) WHITE LED’s positive (Anode connection) + Pin 4 (White wire) 1501 Route 34 South, Farmingdale, NJ 07727 Tel: (732) 919-3119 Fax: (732) 751-5778 www.dialight.com Page 18 of 34...
  • Page 19 NOTE: For commissioning the system, pictures must be taken of all the clamping washers and the cables secured under them. 1501 Route 34 South, Farmingdale, NJ 07727 Tel: (732) 919-3119 Fax: (732) 751-5778 www.dialight.com Page 19 of 34...

  • Page 20: Spare Parts - Controller/Power Supply

    7700865000100 FILTER/SURGE BOARD (AC Units) D7202SUR FILTER/SURGE BOARD (DC Units) D7204SUR LCD MODULE (door mounted) D7401LCD DC SIDELIGHT MODULE (door mounted) D7502SLM 1501 Route 34 South, Farmingdale, NJ 07727 Tel: (732) 919-3119 Fax: (732) 751-5778 www.dialight.com Page 20 of 34...

  • Page 21: System Configuration Screens

    For FAA Type A (Red only) the countdown starts at 45 flashes. NOTE: This screen may go back to the Startup screen if synchronization fails. Initial 15 Flashes In Process 1501 Route 34 South, Farmingdale, NJ 07727 Tel: (732) 919-3119 Fax: (732) 751-5778 www.dialight.com Page 21 of 34...
  • Page 22 NOTE: System will reset when tower style is changed. Tower style = E ‘Enter’ to change 1501 Route 34 South, Farmingdale, NJ 07727 Tel: (732) 919-3119 Fax: (732) 751-5778 www.dialight.com Page 22 of 34...
  • Page 23 Up to nine beacons can be supported. Press “ENTR”. ‘1’ typically selected for standard A/D/E-1 system. Number of 864/5 = 1 u/d=chg, enter=done 1501 Route 34 South, Farmingdale, NJ 07727 Tel: (732) 919-3119 Fax: (732) 751-5778 www.dialight.com Page 23 of 34...
  • Page 24 NOTE: This global change will affect all tiers of sidelights at once. NOTE: This change will not affect white flashes. Flash per min = 30 u/d=chg, enter=done 1501 Route 34 South, Farmingdale, NJ 07727 Tel: (732) 919-3119 Fax: (732) 751-5778 www.dialight.com Page 24 of 34...
  • Page 25 No alarm via dry contact or mod bus is generated. Trans PEC Alrm = YES Trans PEC Alrm = NO u/d=chg, enter=done u/d=chg, enter=done 1501 Route 34 South, Farmingdale, NJ 07727 Tel: (732) 919-3119 Fax: (732) 751-5778 www.dialight.com Page 25 of 34...
  • Page 26 CONFIG TYPE X ‘Enter to change’ Verify operation of the system with the photocell. Ensure no alarms are present during Day and Night modes. 1501 Route 34 South, Farmingdale, NJ 07727 Tel: (732) 919-3119 Fax: (732) 751-5778 www.dialight.com Page 26 of 34...

  • Page 27: User Interface Screens

    NOTE: If the installer selects more than one beacon on the A/D/E-1 system, an AL1 alarm (config ERR) will be lit and recorded in the alarm log. Tower Style: X X 86X ,X 810 B y 1501 Route 34 South, Farmingdale, NJ 07727 Tel: (732) 919-3119 Fax: (732) 751-5778 www.dialight.com Page 27 of 34...
  • Page 28 The system will automatically restore to normal operation after approx. 2 minutes. WARNING: Remote forcing through the GUI will remain indefinitely. 1501 Route 34 South, Farmingdale, NJ 07727 Tel: (732) 919-3119 Fax: (732) 751-5778 www.dialight.com Page 28 of 34...
  • Page 29 Date and time settings are stored in the controller; if power is lost, internal battery backup ensures settings will not be erased. MMM DD,YY “Time” ‘Enter’ to set Clock 1501 Route 34 South, Farmingdale, NJ 07727 Tel: (732) 919-3119 Fax: (732) 751-5778 www.dialight.com Page 29 of 34...
  • Page 30 NOTE: To erase all recorded events press and hold the CLR button for 5 seconds. This is a permanent erase so only do so when instructed by technical support or during a new system installation. 1501 Route 34 South, Farmingdale, NJ 07727 Tel: (732) 919-3119 Fax: (732) 751-5778 www.dialight.com Page 30 of 34...

  • Page 31: Manual Lighting Inspection

    Press “WHITE” (SW4) button located under the ‘DWN’ button on the left side of the LCD control board. This will automatically start a series of tests. MLI ‘CLR’ to exit Push WHT BTN 1501 Route 34 South, Farmingdale, NJ 07727 Tel: (732) 919-3119 Fax: (732) 751-5778 www.dialight.com Page 31 of 34...
  • Page 32 White) based on the configuration of the system from the Startup procedure. A and E Structures D Structures Manual LI TEST Manual LI TEST IN PROCESS IN PROCESS NWHT 1501 Route 34 South, Farmingdale, NJ 07727 Tel: (732) 919-3119 Fax: (732) 751-5778 www.dialight.com Page 32 of 34...
  • Page 33 ‘Enter’ to change After the Lighting inspection (LI) test is done, the user can check the LI list in the Alarm log. 1501 Route 34 South, Farmingdale, NJ 07727 Tel: (732) 919-3119 Fax: (732) 751-5778 www.dialight.com Page 33 of 34...

  • Page 34: Commissioning Photographs

    The serial numbers of the fixtures being installed are located on the Dialight label. Dialight refers to the serial numbers as Date Codes. The date code is used to determine warranty status of the unit. The Date Codes are set up as: The following YY,DDD, S/N.
