COMPANION ROVER 300 Owner's Manual

Portable power station
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ROVER
300
TM
PORTABLE POWER STATION
OWNERS MANUAL
Model No. 10001607

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ROVER 300 and is the answer not in the manual?

Questions and answers

Related Manuals for COMPANION ROVER 300

Summary of Contents for COMPANION ROVER 300

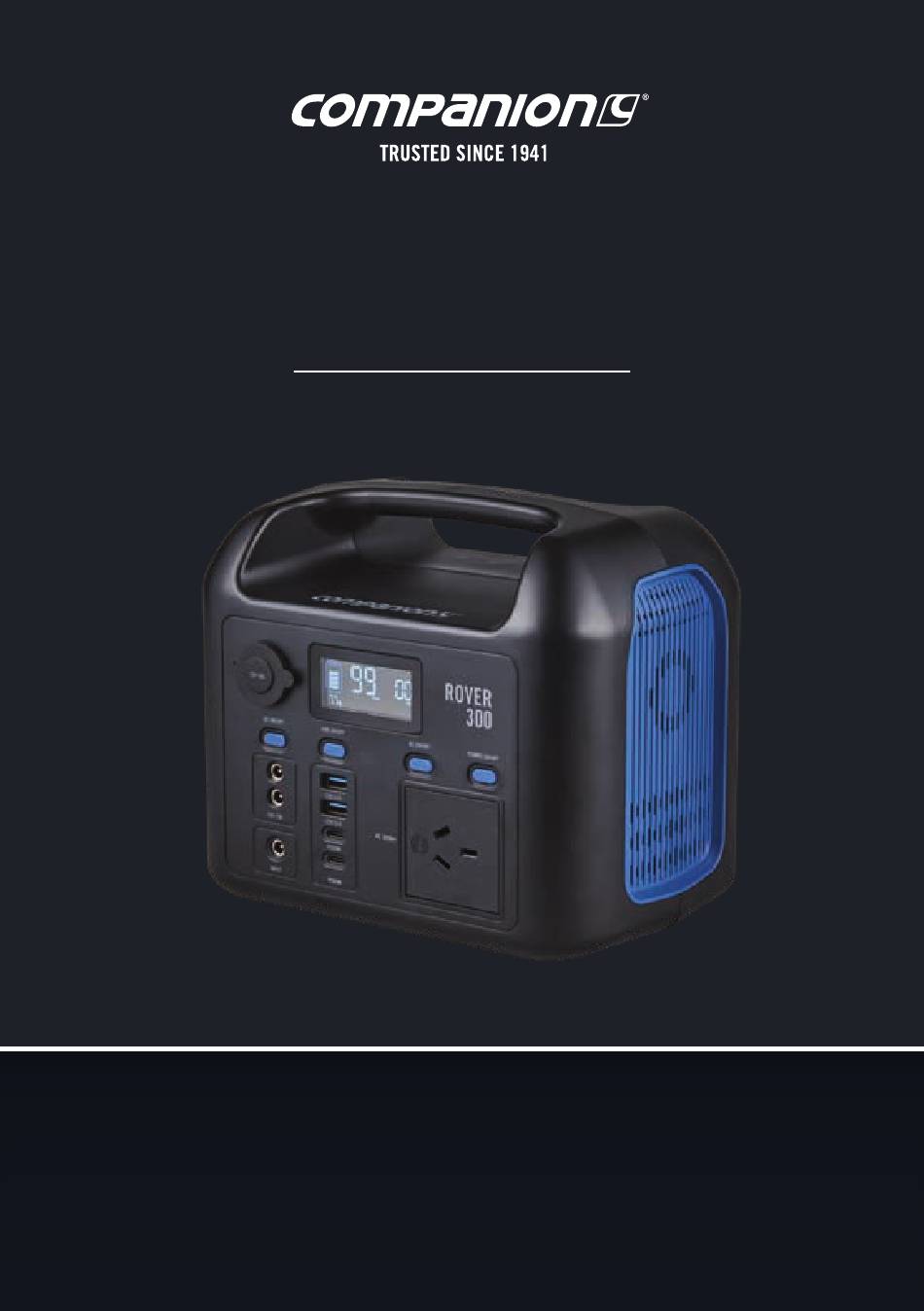

  • Page 1 ROVER PORTABLE POWER STATION OWNERS MANUAL Model No. 10001607...

  • Page 2: Before Use

    BEFORE USE A. The specifications and pictures in this manual are for reference only. B. When using for the first time, fully charge the product (at least 10 hours). When the battery bars no longer flash, this indicates that the battery is fully charged. ROVER 300 LITHIUM POWER STATION 240V AC WALL CHARGER...
  • Page 3 ROVER 300 PORTABLE POWER STATION YOUR ROVER DC CIGARETTE OUTPUT CHARGING INPUT USB-C 30W OUTPUT USB-C 60W OUTPUT USB-A OUTPUT LIGHT ON/OFF BUTTON REMAINING TIME DC OUTPUT USB-A OUTPUT USB-C OUTPUT AC OUTPUT...

  • Page 4: Lcd Battery Display

    • If battery falls below 7% the output function will be turned off triggering an E12 Alarm. This is to avoid full discharge of the battery and potential short circuits, faults and battery degradation. To solve, simply charge the Rover 300, the error will clear once the Rover 300 reaches 7% capacity. 1. LCD BATTERY DISPLAY There are 5 battery bars on the power display, corresponding to 20%, 40%, 60%, 80%, and 100%.
  • Page 5 ROVER 300 PORTABLE POWER STATION 3. CHARGING VIA SUPPLIED AC ADAPTER Plug the supplied AC wall adapter into the wall socket and connect to the Rover 300 via the DC input. • The battery is fully charged when all battery bars stop flashing and remain solid. After the battery is fully charged, it is best to unplug the charging cable.

  • Page 6: Operation

    OPERATION 1. POWER ON LED LIGHT LIGHT ON/OFF BUTTON A. Press and hold the POWER button for 3 seconds to power on. B. Short press the AC button to turn on the AC function (while the AC icon is displayed on the screen), press the AC button again to turn off the AC function when not in use.

  • Page 7: Lighting Mode

    ROVER 300 PORTABLE POWER STATION 2. LIGHTING MODE A. Short press the light button to turn on the light and highlight mode. B. Press the light button again to switch the light mode to low brightness. C. Press the light button again to switch the light mode to SOS. D.
  • Page 8 4. DC OUTPUT FUNCTION A. Press the DC on / off button to enter DC mode, and the DC/CAR interface is available. B. The car charger port and DC5521 (diameter 5.5mm) port provides a maximum output current of 10A, and the maximum current is automatically allocated according to the external device.
  • Page 9 ROVER 300 PORTABLE POWER STATION 5. AC OUTPUT FUNCTION A. Plug the AC power cord into the Rover 300 AC output port. B. Power the unit on and press the AC on/off button to deliver power to your device. C. Make sure the power of the connected AC device does not exceed 300W. AC OUTPUT: 230V •...

  • Page 10: Product Specifications

    PRODUCT SPECIFICATIONS BATTERY Battery type LiFePO4 Battery capacity 288Wh, 15Ah @ 19.2V Life cycle 2000 cycles (80% capacity afterwards) Battery maintenance every Charge once every 3 months PORT USB-A 1-2 interface (output) 5V 3A; 9V 2A; 12V 1.5A USB-C interface (output) 5V 3A;...

  • Page 11: Package Contents

    ROVER 300 PORTABLE POWER STATION • To avoid short-circuiting the product, please keep the product away from metal objects. • Do not heat the product, place it in fire, water or other liquids. Keep away from high temperature environments. • Do not expose product to direct sunlight. •...
  • Page 12 TROUBLESHOOTING YOUR ROVER ERROR CODE CAUSES SOLUTION Release the overload status, the DC output will be able DC output overload to be used normally Remove the short-circuit state, the DC output will be DC output short circuit able to be used normally AC output overload, over Release the overload, over temperature, over under temperature, over voltage, and...

  • Page 13: Warranty Policy

    ROVER 300 PORTABLE POWER STATION WARRANTY POLICY 1. Products distributed by Adventure Operations Australia Pty Ltd and any of our subsidiaries come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage.
  • Page 14 NOTES:...
  • Page 15 ROVER 300 PORTABLE POWER STATION NOTES:...
  • Page 16 WARRANTY - For details see www.companionoutdoor.com/warranty Companion is a registered trademark of ® Adventure Trading Australia Pty Ltd Designed by: Adventure Trading Australia Pty Ltd 71 Charles Ulm Place, Eagle Farm, QLD 4009 AUSTRALIA Made in China...
