Related Manuals for COMPANION Rover Li 40
Summary of Contents for COMPANION Rover Li 40

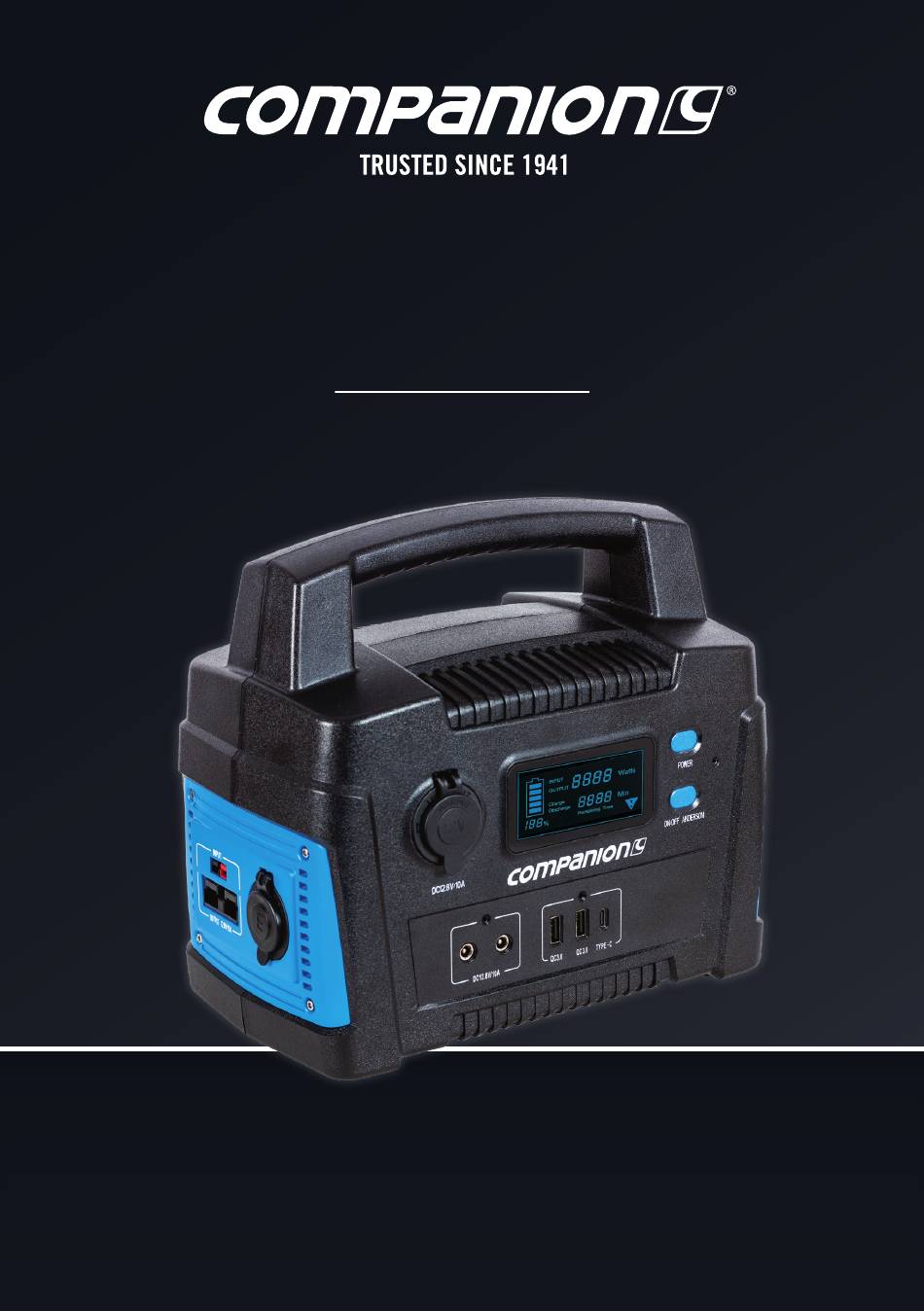

- Page 1 ROVER LiTHIUM 40AH POWER STATION OWNERS MANUAL Part No. 10000071...
-
Page 2: Safety Information
IMPORTANT: PLEASE READ, UNDERSTAND AND FOLLOW THIS INSTRUCTION MANUAL CAREFULLY BEFORE FIRST USE, AND STORE IT IN A SAFE PLACE FOR FUTURE REFERENCE. SAFETY INFORMATION • Follow the instructions within this manual carefully as to not cause harm to yourself or others •... -
Page 3: General Safety
40AH POWER STATION GENERAL SAFETY • Only use the device as intended • DO NOT insert foreign objects into the input/output ports • DO NOT attempt to open, repair or replace the internal battery or any parts • DO NOT pull on the cords to unplug input/output power from the device •... -
Page 4: Lcd Display

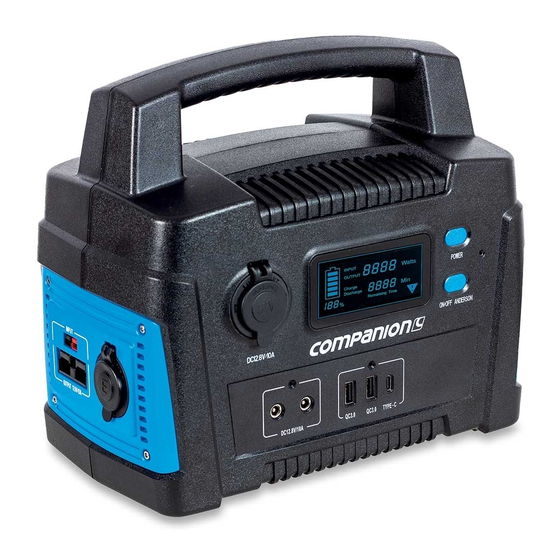

UNDERSTANDING YOUR APPLIANCE 1. ON/OFF POWER BUTTON 2. ANDERSON OUTPUT ON/OFF 3. 2 X USB OUTPUT, 1 X USB C OUTPUT 4. 2 X DC5525 OUTPUT 5. 12V CIGARETTE SOCKET OUTPUT 6. LCD DISPLAY 7. LED LIGHT POWER BUTTON 8. LED LIGHT 9. -
Page 5: Understanding The Lcd Display
40AH POWER STATION UNDERSTANDING THE LCD DISPLAY The LCD display will show the total input/output in watts and the remaining time to either charge or discharge. What the LCD screen displays depends on the Input and Output. For example, if two phones are attached, the screen will show the below - If an AC adaptor is also connected to the input, the screen will display the net amount of watts and the current charging status. - Page 6 TO RECHARGE BATTERY The Rover Li 40 uses a Lithium Ion Phosphate battery. There are three ways the battery can be charged - DC Cable, 240V AC Adaptor or Solar Panel. The power station can only be charged using one of the above options as all three use the one input.
- Page 7 40AH POWER STATION CHARGING BY DC CABLE (INCLUDED) Step 1. Turn on the power station by holding the power button for three seconds. Step 2. Insert the adaptor plug into the input socket on the side of the power station and the DC charger to your power source.
- Page 8 Charging by Solar Panel (not included) The power station has a built in MPPT controller so you do not need to use a solar ccontroller. The solar panel MUST be connected directly to the power station with unregulated solar. Step 1 .
-
Page 9: Powering Appliances
40AH POWER STATION POWERING APPLIANCES The power station consists of multiple outputs that can be used at the same time. Step 1. Turn on the power station by holding the power button for three seconds. Step 2. To switch the power station over to output mode, hold the power switch again for three seconds or until the two red LED light indicators above the DC5525 Output and USB Outputs illuminate. - Page 10 Anderson Output There is an Anderson output located on the side of the power station which uses the 50A connector. It has a maximum output of 10 Amp. To use this output you need to turn on the power station and then press the “Power” button for three seconds to activate the power outputs.
-
Page 11: Cleaning Instructions
40AH POWER STATION CLEANING INSTRUCTIONS Step 1. Ensure the device is disconnected from the mains before performing any cleaning or device maintenance. Step 2. DO NOT use sharp or hard objects, or cleaning agents to clean as these may damage the product. Step 3. -
Page 12: Troubleshooting
TROUBLE SHOOTING Situation Probable Cause Solution Check power station is turned on Turn on the power outputs by and relevant outlet power is turned pressing the “Power” button for 3 seconds after the power station Power outlets are not working is on. -
Page 13: Specifications
-10°C ~ 40°C Dimensions 270 x 154 x 242 mm Weight 6.3 kg 1 x Rover Li 40 1 x DC Charge Cable Pack Contents 1 x AC Charge Cable 1 x 50A Anderson to 30A Anderson Powerpole Cable 2 x DC Jack Adaptors (DC5521) - Page 14 NOTES...
-
Page 15: Warranty Policy
40AH POWER STATION WARRANTY POLICY 1. Products distributed by Adventure Operations Australia Pty Ltd and any of our subsidiaries come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. - Page 16 WARRANTY - For details see www.companionleisure.com.au/warrant Companion is a registered trademark of ® Primus Australia Pty Ltd Designed & Imported by : Adventure Trading Australia Pty Ltd 71 Charles Ulm Place, Eagle Farm, QLD 4009 AUSTRALIA Made in China...
Need help?
Do you have a question about the Rover Li 40 and is the answer not in the manual?
Questions and answers
hi there, can I charge the lithum battery via the 12-volt cig adapter and run a car fridge via the Anderson output at the same time ?
Yes, the COMPANION Rover Li 40 can be charged via a 12-volt DC charger (14V 5A), and it supports simultaneous use of outputs, including the Anderson output. However, the total maximum DC output is limited to 10A (140W combined). If the combined power draw of the fridge and charging input stays within these limits, it can operate both functions at the same time.
This answer is automatically generated
