SuperGlide Towing Systems
3100 SuperGlide
Owner / Operator Instructions
Gross Trailer Weight (Maximum)
Vertical Load Weight (Max. Pin Weight)
Introduction:
The following instructions will provide valuable information regarding the function and
proper use of the PullRite SuperGlide Towing System. Please take the necessary
time to read these instructions completely before attempting to use your
SuperGlide.
Note: Parts referenced in this document are labeled for identification in the drawings on pages 11 - 13.
Index
5
3100 SuperGlide Owner's Manual 10-13-05
Specifications:
Part Location and Identification
______
12,000 lbs.
3,000 lbs.
Pg.
2
2-3
3
3-4
4-6
6-7
8
9
9
10
11
12
13
14
15
Page 1
Advertisement
Table of Contents
Related Manuals for SuperGlide 3100
Summary of Contents for SuperGlide 3100
-

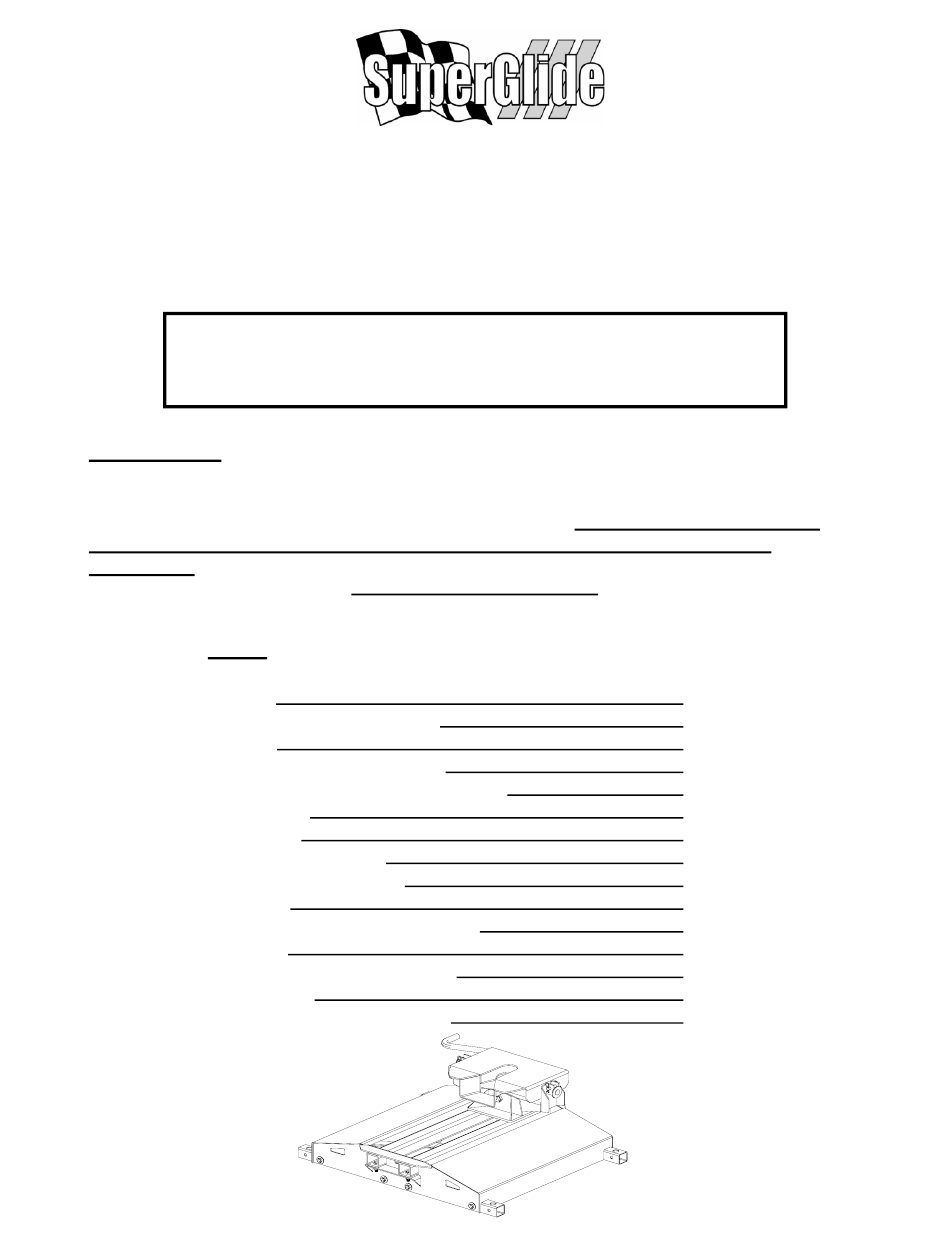

Page 1: Table Of Contents
3,000 lbs. Introduction: The following instructions will provide valuable information regarding the function and proper use of the PullRite SuperGlide Towing System. Please take the necessary time to read these instructions completely before attempting to use your SuperGlide. Part Location and Identification Note: Parts referenced in this document are labeled for identification in the drawings on pages 11 - 13. -
Page 2: Caution
1-800-443-2307, if more information concerning this problem is needed. • In most cases, the SuperGlide hitch will allow you to make a 90 degree turn. Please use extreme caution when turning this far. It is possible for the trailer to contact the cab of the truck. -
Page 3: Storage
Storage When storing the SuperGlide Hitch, you should be sure that the 5 Wheel Plate {A1} is covered with a light coating of oil, and that the Ways {D1} have a good coating of grease. Cover the whole assembly to prevent accumulation of dirt and grime. -
Page 4: King Pin Adapter Plate Installation
For use with heavy trailers, more bolts will be needed to secure this plate. Figure 6. If the Trailer Plate {J2} extends beyond the King Pin Box, then install the braces {K2-K4} as shown in Figure 4 {page 5}. 3100 SuperGlide Owner’s Manual 10-13-05 Page 4... - Page 5 5. Attach the Knee Braces {K2,3 & 4} to the king pin box and the Trailer Plate {J2}. Braces {k2} may have to be welded on if the interior of the king pin box is not accessible. 6. See Figure 5 on the next page for diagram and special notes. 3100 SuperGlide Owner’s Manual 10-13-05 Page 5...
-
Page 6: Hitching Up
Hitching can only be accomplished when the tow vehicle and the trailer are aligned within 16° of each other (Figure 6). 2. Block the trailer wheels so the trailer will not roll back. 3100 SuperGlide Owner’s Manual 10-13-05 Page 6... - Page 7 3. Lower your tailgate and back up to within about 6” of clearance between the SuperGlide hitch and the end of the Trailer Plate {J2}. Raise or lower the front of the trailer so the bottom of the Trailer Plate {J2}...
-
Page 8: Unhitching
DO NOT ATTEMPT TO TRIP THE LOCK MECHANISM WITH YOUR HAND, USE A PROBE TO SIMULATE THE KING PIN. 3100 SuperGlide Owner’s Manual 10-13-05 Page 8... -
Page 9: Turntable Cam Arm
I need to have a professional evaluate my Contact PullRite’s Customer Service Dept. at 800/443-2307. Your needs will Super Glide. be assessed and resolved by PullRite or you will be directed to an authorized PullRite Service Center. 3100 SuperGlide Owner’s Manual 10-13-05 Page 9... -
Page 10: Parts Listing
5/16”-18 x 3/4” Button Head Cap Screw Support Bracket Nuts 98150202 8 5/16”-18 Nylock Nut Trailer Plate Mounting Bolts 98010240 10 1/4”-20 x 1 1/4” Flat Head Allen Screw Trailer Plate Mounting Nuts 98410255 10 1/4”-20 Nylock Nut 3100 SuperGlide Owner’s Manual 10-13-05 Page 10... -
Page 11: Parts List Illustration
PARTS LIST ILLUSTRATION 3100 SuperGlide Owner’s Manual 10-13-05 Page 11... -
Page 12: Warranty
LIMITATIONS AS TO DURATION OF IMPLIED WARRANTY, SO THOSE LIMITATIONS MAY NOT APPLY TO YOU) PULLRITE TRAILER TOWING SYSTEMS MANUFACTURED BY: PULLIAM ENTERPRISES, INC. 13790 East Jefferson Blvd. Mishawaka, IN 46545 (574) 259-1520 or (800) 443-2307 info@pullrite.com • www.pullrite.com 3100 SuperGlide Owner’s Manual 10-13-05 Page 12... -
Page 13: Frequently Asked Questions
• Can I use a Teflon disc or lube plate on the king pin plate? The king pin box and SuperGlide plate or “head” move together and since there is no fric- tion, there is no need for any grease or a lube plate. Use of a Teflon disc or lube plate would cause the king pin to be short and problems hooking up will occur. -
Page 14: Accessories
This Adapter will allow your trailer to be pulled by a non-SuperGlide hitch the head of your SuperGlide. when used in conjunction with 3336 Conversion Adapter Owner / Operator Instructions Requires SuperGlide plate (not included) SuperGlide Trailer Plate NOTE: The SuperGlide Plate refers to the fifth wheel plate or “head”... -
Page 15: Telephone Number
Name and Address of Dealer: $______________________________ ____________________________________________ What influenced you to buy Comments: your hitch? ____________________________________________ A Friend Manufacturer’s Reputation ____________________________________________ Advertisement ____________________________________________ Video ____________________________________________ Dealer Recommendation ____________________________________________ Other____________________ *** Registration form also available on-line at www.pullrite.com*** 3100 SuperGlide Owner’s Manual 10-13-05 Page 15...
