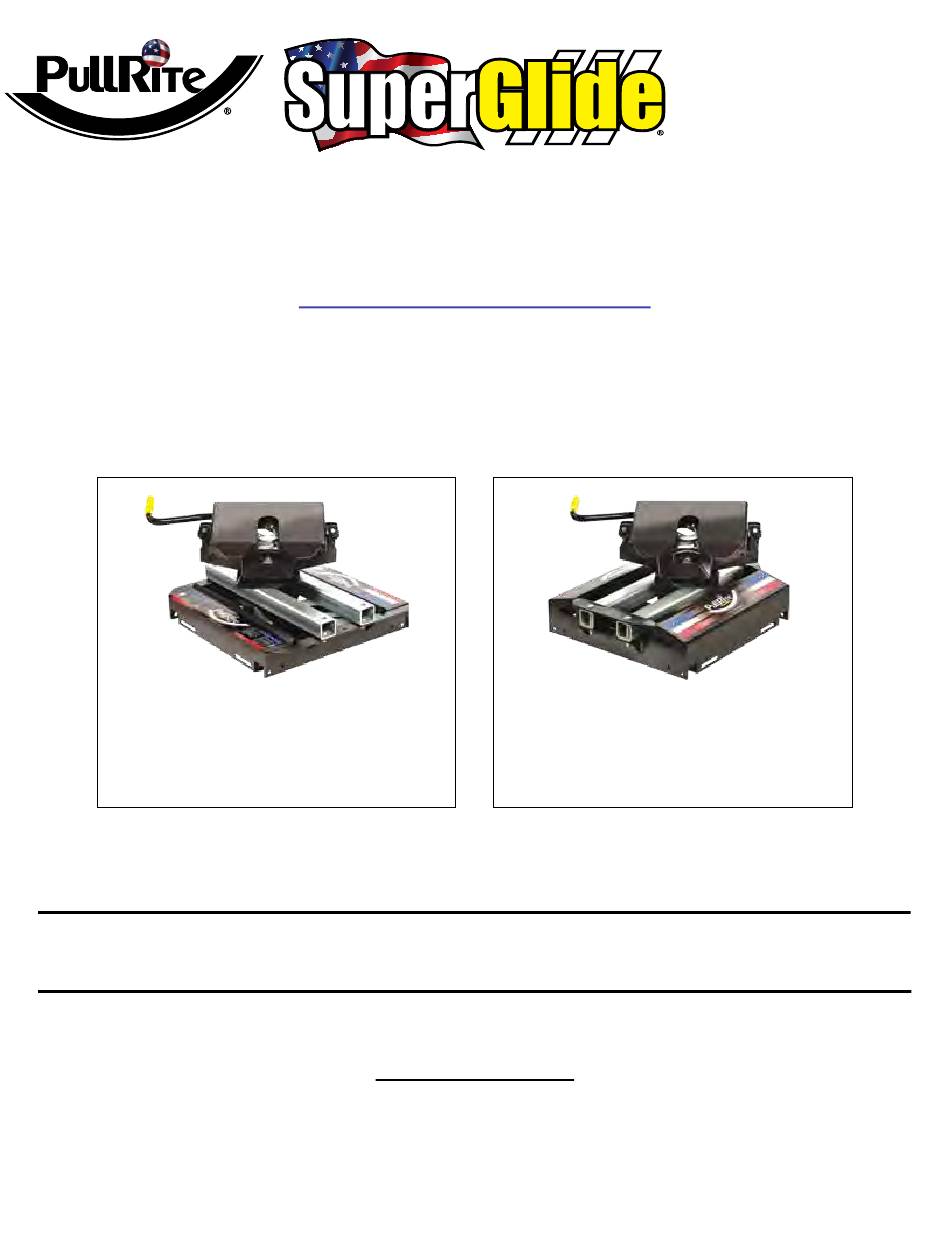

SuperRail Mounting Kit
#4100 SuperGlide
(16K)
Gross Trailer Weight (Maximum)
Vertical Load Weight (Max. Pin Weight)
Installation Instructions
• Fits 1999-2007 Chevy 1500 6'5" bed (except 2007 new body style)
Chevy
#3345
16,000 lbs.
4,000 lbs.
SPECIFICATIONS
• Fits 1999-2010 Chevy 2500 & 3500
• Hitch is located center of axle
#4400 SuperGlide
(18K)
Gross Trailer Weight (Maximum)
Vertical Load Weight (Max. Pin Weight)
18,000 lbs.
4,500 lbs.
Advertisement
Related Manuals for SuperGlide 3345
Summary of Contents for SuperGlide 3345
-
Page 1: Installation Instructions
Chevy SuperRail Mounting Kit #3345 #4100 SuperGlide #4400 SuperGlide (16K) (18K) Gross Trailer Weight (Maximum) 16,000 lbs. Gross Trailer Weight (Maximum) 18,000 lbs. Vertical Load Weight (Max. Pin Weight) 4,000 lbs. Vertical Load Weight (Max. Pin Weight) 4,500 lbs. Installation Instructions SPECIFICATIONS •... - Page 2 The Lubrication section of your Owners Manual spans several product releases and design changes. It is imperative that you read each section and determine which SuperGlide hitch you purchased, and how to care for it. There have been three major lubrication changes to the SuperGlide hitch: •...
- Page 3 MOUNTING HARDWARE PARTS IDENTIFICATION...
-
Page 4: Parts List
PARTS LIST CHEVY HD & LD SUPER RAIL MOUNTING KIT Description Part No. Qty. Used Material MOUNTING BRACKET KIT 3315 (See kit contents listed below) MOUNTING BRACKET HARDWARE KIT 331505 (See kit contents listed below) BASE RAIL KIT 3307 (See kit contents listed below) #3315 —... - Page 5 TRUCk PREPARATION Truck Preparation Check part quantities using the Parts List. Block vehicle wheels. You may wish to remove the wheels to give yourself greater working room. If your truck is equipped with a factory brake controller, the module should be removed from the frame during installation to prevent possible damage.
- Page 6 TEMPLATE METHOD 1. Lay the template in the truck bed, centering it from side-to-side, and parallel to the end of the truck bed using the dimension “X” listed in “Truck Bed Dimension Table. ” 2. Mark the 4 holes, while making sure the template does not move. NOTE: The TEMPLATE should be orientated as shown in the drawing below.
-
Page 7: Installation
INSTALLATION Part 1 — bracket Placement & beD hole locations Since most truck beds are not installed square to the frame or are the same distance from the back of the cab, the installer will need to make sure the bed holes line up properly with the center of each mounting post hole. The basic steps in this section are as follows: •... - Page 8 INSTALLATION WARNING: Prior to drilling any holes, be sure to check the inside of the frame to guard against drilling into the fuel tank, wiring, brake lines or fuel module. Locate the remaining three brackets in the same manner, referring to the illustration and checking each bracket carefully for proper centering.
- Page 9 INSTALLATION DRILLING THE PILOT HOLES Drill the first 1/16” pilot hole through the truck bed over the rear hole on the driver side where you made the mark during the “Marking Bed for Drilling. ” If the pilot hole is off center to the 1” mounting post hole, remember to adjust all the pilot hole locations accordingly. NOTE: Some truck beds are not installed square on their frame by the manufacturer. ...
- Page 10 You may need to loosen the bolts on the mounting brackets below if binding occurs. Adjust as needed and retighten the bolts. Reinstall the mounting posts, base rails and the SuperGlide hitch assembly until the assembly can be removed freely without...
- Page 11 hitch assembly — exPloDeD view...
