Masters
Assembly Instructions

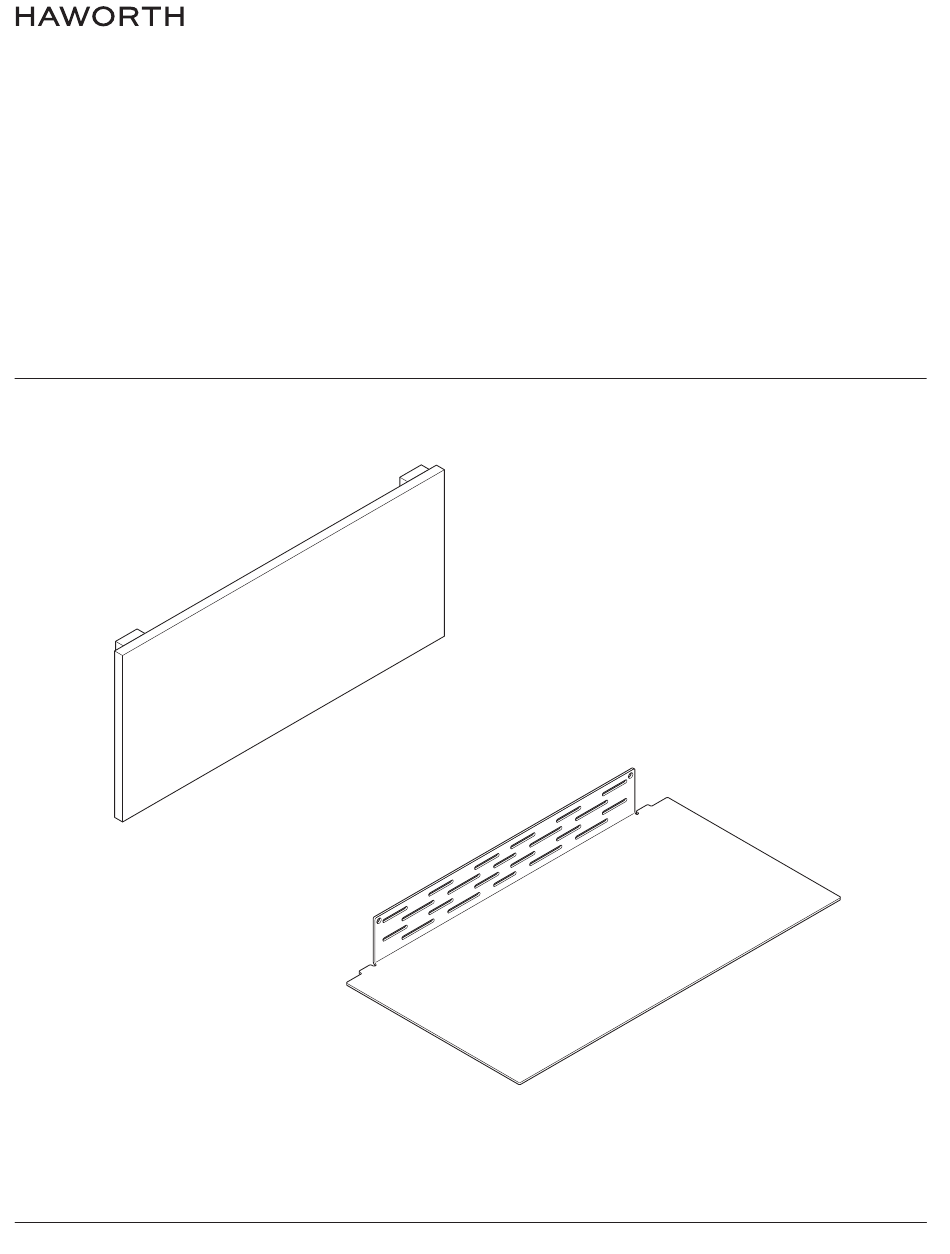

Congratulations on your
purchase of Wall Mounted
Tiles and Metal Shelf
For assembly assistance, visit haworth.com, call 800 426 8562, or email support@haworth.com
For assembly assistance, visit haworth.com, call 800 426 8562, or email support@haworth.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Haworth Masters
Summary of Contents for Haworth Masters
- Page 1 Masters Assembly Instructions Congratulations on your purchase of Wall Mounted Tiles and Metal Shelf For assembly assistance, visit haworth.com, call 800 426 8562, or email support@haworth.com For assembly assistance, visit haworth.com, call 800 426 8562, or email support@haworth.com...
- Page 2 Masters Assembly Instructions Tools Required 1/8” Drill Bit (D) Fench Cleat - Qty. 1 (E) Anti-dislodgement Brackets - Qty. 2 (F) Wall Mounted Tile - Qty. 1 (G) Wooden Leveling Spacer - Qty. 1 (S-3) #10 x 5/8” Pan Head Screw - Qty. 4 (H) Floating tMetal Shelf - Qty.
- Page 3 Masters Assembly Instructions Install cleats (D) align bottom of cleats on marked lines. Install wall tile (F) as shown. NOTE: Install tiles in sequence order, C, B, A, with the bottom NOTE: Install screws every 8 inches. tile being placed rst.
- Page 4 Masters Assembly Instructions Install oating metal shelf (H) as shown. NOTE: Install tiles in sequence order, C, B, A, with the bottom tile being placed rst. 3 TILE SET 4 TILE SET 2 TILE SET NOTE: Measure from top of shelf.
- Page 5 Masters Assembly Instructions WALL TRACK ATTACHMENT OPTIONS WALL ATTACHMENT OPTIONS NOTE: Due to varying wall construction, fasteners are not included and must be eld supplied. 3/4" WALL BOARD PLYWOOD FOR STEEL STUDS 12" MAXIMUM (BOTH SIDES) 3/4" PLYWOOD 16" ON CENTER MAXIMUM X - 7.50"...
- Page 6 Masters Assembly Instructions WALL TRACK ATTACHMENT OPTIONS BLOCK WALLS FOR POURED CONCRETE WALLS NOTE: Use the appropriate Toggle Bolt. NOTE: Due to varying wall construction, fasteners are (AN) not included and must be eld supplied. Customer Service: 800 426 8562 E.C.O.
