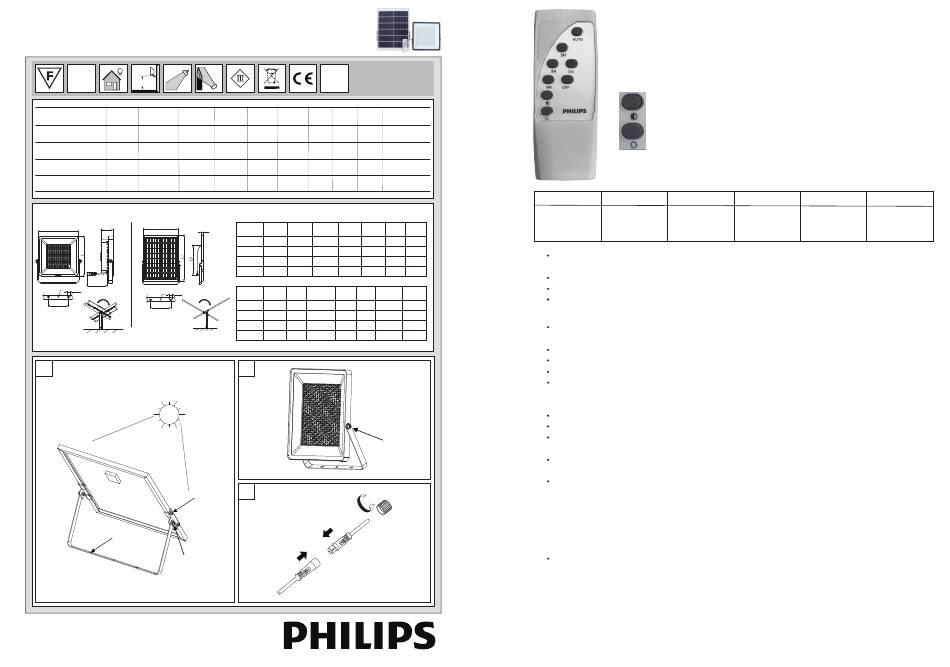

Philips SmartBright Mounting Instruction

SmartBright Solar Flood Light
BVP080 Mounting instruction/安装说明/คํ า แนะนํ า การติ ด ตั ้ ง /
Petunjuk pemasangan / Instrucciones de Montaje
IP65
X>0m 0.0m
Battery
Type Number Flux(lm) Battery type
parameter
Lithium iron
BVP080 LED10/757 060 G2 1000lm 3.2V/6AH
phosphate
Lithium iron
BVP080 LED20/757 100 G2 2000lm 3.2V/12AH
phosphate
Lithium iron
BVP080 LED30/757 150 G2 3000lm
9.6V/6AH
phosphate
Lithium iron
BVP080 LED48/757 200 G2 4800lm 9.6V/9.9AH
phosphate
W1
H
W
L4
d1
a×b1
d a×b
-60° 60° -60°
~
L3
L2
1
M5 Screw
Torque 3.2Nm
M6 Screw
Torque 10Nm
M6 Screw
Torque 3.2Nm
SIGNIFY LUMINAIRES (SHANGHAI) CO.,LTD
Address: 2F, Building 1, No. 2555 Hechuan Road, Minhang District, Shanghai, P.R. China
Postal code: 200233
昕诺飞灯具（上海）有限公司
上海市闵行区合川路2555号1幢二楼
邮编：200233
500 Hrs
Salt Spray Test
PV Remote Remote
CCT Ta Weight
parameter type distance
8W/5V infrared ≤ 8m 5700K 0-50℃ 2.37Kg
15W/5V infrared ≤ 8m 5700K 0-50℃ 2.83Kg
≤ 8m
20W/15V infrared 5700K 0-50℃ 4.46Kg
35W/15V infrared ≤ 8m 5700K 0-50℃ 6.20Kg
Unit: mm
TYPE
W L H W1 L1
H1
1000lm 200 200 60.4 350 235
2000lm 200 200 60.4 350 350
3000lm 300 300 63.5 350 450
4800lm 300 300 63.5 350 680
TYPE L2 d axb L3 d1 axb1
60°
~
1000lm 180 8.5 15x8.5 100 8.5 15x8.5
2000lm 180 8.5 15x8.5 100 8.5 15x8.5
3000lm 180 8.5 15x8.5 180 8.5 15x8.5
4800lm 180 8.5 15x8.5 180 8.5 15x8.5
2
Torque 3.2Nm
3
b
a
Philips and the Philips shield emblem are registered trademarks of Koninklijke Philips N.V.
luminous
area
0.029m²
0.029m²
0.073m²
0.073m²
Period 1
20% Light output
H1 L4
for 1hr
15 200
Note:
15 200
Before installation, please connect the product to the solar panel (put the solar panel to face the sunlight) to active the charge
15 200
controller inside the product and then use the remote control to set the different working mode.
15 200
To force Sleep mode (or Storage purposes), please press OFF to force the luminaire to Sleep mode (for storage purposes).
The factory default working mode for this product is AUTO.
L5
LED indication on luminaire: Green ON (Charging), Green Flash (Battery low capacity <30%).
4800
Application NOTES:
4800
4800
This product is not for pole mounted. The product must be installed in a sunny place that is not shaded by trees, buildings,
4800
wall, etc. so that the solar panel can receive the maximum sunlight for charging the battery inside the luminaire.
Charge the product under bright sunlight without any shade for 8hours before first use.
After installation the working modes can be set by infrared remote controller.
The product does not need any external electrical. It works 100% on solar energy.
The product works on Dusk and Dawn principle once it is activated. From Sunrise to Sunset the battery charges (luminaire
OFF) and from Sunset to Sunrise the battery discharges (luminaire ON). The luminaire will not switch ON incase any light
source nearby from which light is falling on the solar panel of the luminaire.
The battery backup time will reduce if the ambient temperature is <0degree Celsius or >50degree Celsius.
When the battery low capacity (<30%), the light output will dim down to 15% brightness to extend running time.
The light source, battery, cable, controller/sensor and all other components in the luminaire fixture are not replaceable.
M8 Screw
The luminaire fixture is not openable. Please replace the whole product when it reaches the end of life.
This product is designed for outdoor. Sufficient sunlight is required during the daytime to charge the battery. In cases of
partial solar charging, the product may not charge completely, leading to less working hours during the night.
User of this product is requested to follow local waste disposal, separation and waste collection regulations applicable in
the country/state where this product is being used since there is inbuilt battery in the luminaire. Please act accordingly to
the local rules and do not dispose old product and packaging without compliance of those rules. The correct disposal of
product and packaging will help to prevent negative consequences to the environment, health and well-being of inhabitants.
Product contains battery and that should dispose of separately from other municipal waste via designated collection
facilities in compliance with local rules and regulations. When disposing the product, the battery should be removed by a
trained and authorized professional.
The product contains Lithium Ferro Phosphate battery. It is important to note that if the product is not used (charged)
within XX months from the date of manufacturing (as in the product, package label) the battery will be in the state of over
discharged condition due to its self-discharge properties and the product is not likely to switch on and performance of the
product will be affected, such as but not limited to reduced lumen output, faster dimming, shorter light ON time etc. To
ensure battery performance, do not exceed the storage time as defined below:
- up to 11 months (0~25℃,≤75%RH)
- up to 6 months (0~35℃,≤75%RH)
- up to 3 months (0~45℃,≤75%RH)
In case the storage condition and timeline not complied, the warranty of the product shall be void. For detailed warranty
terms and conditions please reach out to the authorized Signify representative/partner.
Remote Controller Function:
Auto(Wake up): Luminaire will light on dusk to dawn (max 12Hours) per default dimming profile
3H: Luminaire will light on 3 hours per default lighting profile from the fully charged battery and then turn off.
5H: Luminaire will light on 5 hours per default lighting profile from the fully charged battery and then turn off.
8H: Luminaire will light on 8 hours per default lighting profile from the fully charged battery and then turn off.
Dim Down: Light output from 100% to 10%, (dim at 10% with each press)
(Note: the working mode will return to AUTO mode after 2hours)
Dim Up: Light output from 10% to 100%, (dim at 10% with each press)
(Note: the working mode will return to AUTO mode after 2hours)
On/OFF(For Indoor Use Purpose): Luminaire Light ON/Light OFF per remote controller,
and Light on with 100% light output
Default lighting dimming profile
Period 2 Period 3 Period 4
100% Light output 40% Light output 20% Light output
for 30mins for 1hr for 1.5hrs
Period 5 Period 6
10% Light output 5% Light output
for 2hrs for 6hrs
