3M CP45B User Manual

3M CP45B User Manual

Camcorder with projector
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
projector
user
manual
Shoot and Share

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CP45B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for 3M CP45B

Summary of Contents for 3M CP45B

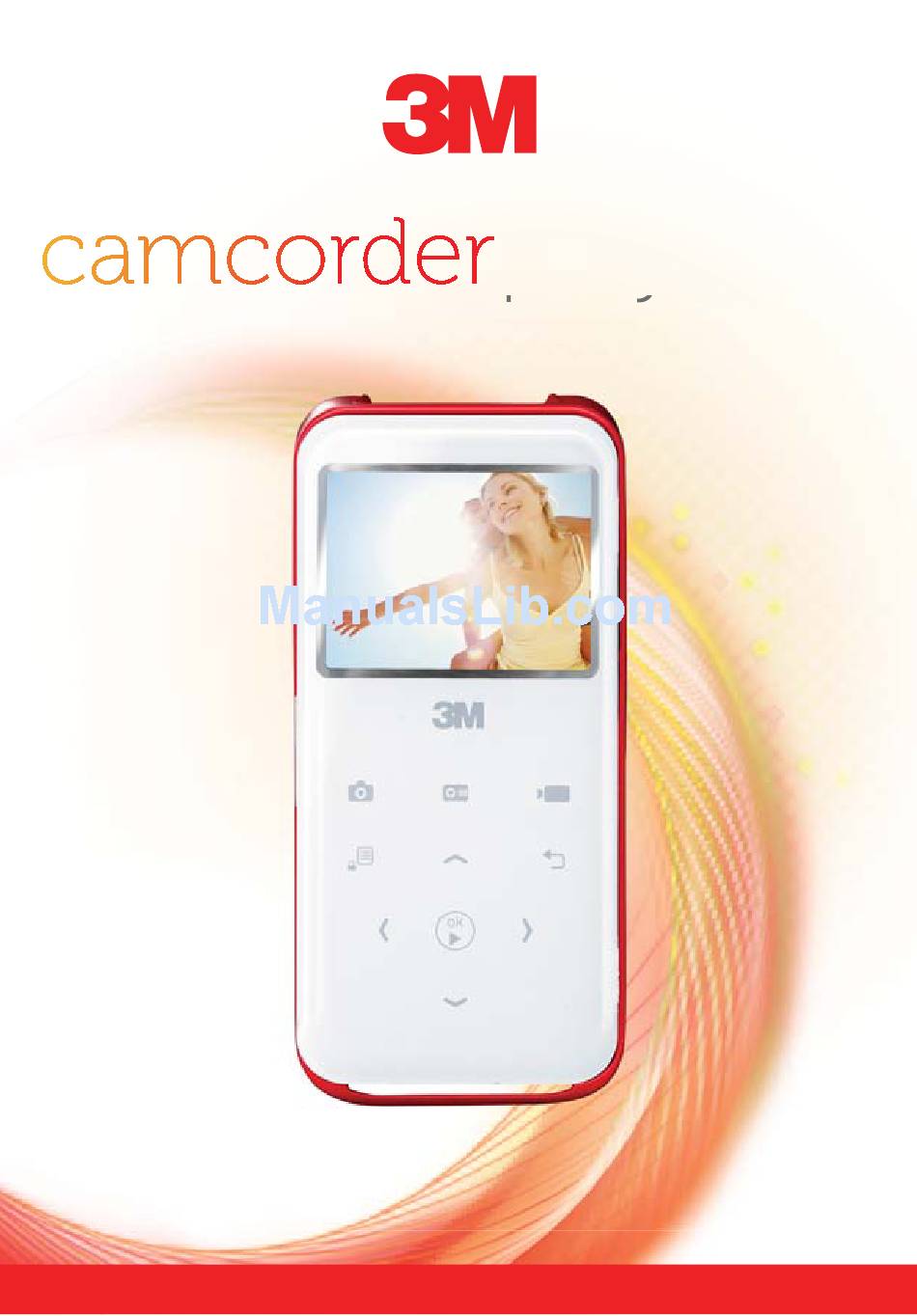

  • Page 1 projector user manual Shoot and Share...

  • Page 2: Table Of Contents

    Table of Contents Getting Started ..............1 Product Overview ................. 1 Package Content .................. 2 Charging the Battery ................3 Reading LED indicators ................ 3 Inserting a Memory Card (optional) ............4 Power Camcorder Projector ON/OFF ........... 4 Set Language ..................4 Sensitivity Calibration ................

  • Page 3: Important Notice

    You assume all risks and liability associated with such use. Any statements related to the product which are not contained in 3M’s current publications, or any contrary statements contained on your purchase order shall have no force or effect unless expressly set forth in a written agreement signed by an authorized officer of 3M.

  • Page 4: Intended Use

    Warning: Hazardous Voltage WARNING To reduce the risk associated with hazardous voltage: • Do not modify this product in any way. Use only 3M approved replacement components. • Do not attempt to service this Camcorder Projector. There are no user serviceable parts.
  • Page 5 To reduce the risk associated with fire and explosion: • Do not immerse the Camcorder Projector in any liquid or allow it to get wet. • Use only 3M approved power supply provided. • Do not dispose of the Camcorder Projector by incineration or fire.

  • Page 6: Usage Notice

    Usage Notice: • Turn off the power switch and unplug the power adapter before cleaning the Camcorder Projector. • Use a soft dry cloth with mild detergent to clean the display housing. • Unplug the power adapter if the Camcorder Projector will not be used for a long period of time.

  • Page 7: Getting Started

    Getting Started Product Overview Projection button Camera button Record button Up arrow (Zoom in) Menu button Return / Exit button (Keypad lock) Right arrow (LED flash light) Left arrow (Folder) OK / Enter button Down arrow (Zoom out) Focus wheel Micro SD card slot IR receiver* Power switch (ON / OFF)

  • Page 8: Package Content

    Package Content Camcorder Projector User Manual AV cable (RCA female to mini jack) AC power adapter Interchangeable Plugs USB cable CD which includes: (a) User Manual (b) ArcSoft Media Converter Software...

  • Page 9: Charging The Battery

    Charging the Battery Connect one end of the supplied AC adapter to the USB port of the Camcorder Projector and the other end to a wall outlet. Connect one end of the supplied USB cable to the USB port of the Camcorder Projector and the other end to a powered PC.

  • Page 10: Inserting A Memory Card (Optional)

    Inserting a Memory Card (optional) Open the Micro SD card cover. Gently insert the card as indicated (contacts facing upward) until the card reaches the end of the slot. When the card is fully inserted, the icon ( ) will appear on screen.

  • Page 11: Sensitivity Calibration

    Sensitivity Calibration Power on the Camcorder Projector. Press the Menu button ( ), and then press the Left/Right ( / ) arrows to navigate to Setting Screen ( Press the Up/Down ( ) arrows to navigate to the Sensitivity Calibration item.

  • Page 12: Menu Navigation

    Camcorder Projector settings. 0005 / 353min LED Flash Light indicator (ON) Internal memory/ SD card inserted Picture resolution (3M, 5M, 8M) Battery Life (empty --> full battery) No. of camera shots available Keypad Lock indicator (ON) Video resolution Zoom ratio indicator...

  • Page 13: Basic Operations

    Basic Operations Recording a Video Clip Press the Up/Down ( ) arrows to zoom in or zoom out. Press the Record ( ) button to start recording. The Record ( ) button will turn red in recording mode, and the video recording timer will start rolling. Press the Record ( ) button again to stop recording.

  • Page 14: Projecting Pictures/Videos

    Projecting Pictures/Videos Press the OK ( ) button or the Left ( ) arrow. Press the Up/Down arrows to select target folder. When selecting one file, press the OK button to play it. Press the Projection button ( ) to project. ( will turn blue when in projection mode) •...

  • Page 15: Playing Video

    During Playback • Playing Video Press the Left/Right arrows to move to the previous/next file. Press and hold the Left/Right arrows button to rewind and fast forward. Use the Up/Down arrows to control volume. Press the OK button to pause the video (press OK again to resume). The following status information will display.

  • Page 16: Adjust The Focus

    Adjust the Focus Turn the Focus wheel to adjust the image sharpness and clarity. Adjusting the Projected Image Projection Distance Screen size - Width Screen Size - Height Screen Diagonal (cm) (inch) (cm) (inch) (cm) (inch) (cm) (inch) 33.0 13.0 20.3 15.2 25.4...

  • Page 17: Connecting Camcorder Projector To Media Devices

    Connecting Camcorder Projector to Media Devices Composite AV Cable This Camcorder Projector connects to most DVD players, SAT-Receivers, Portable Media Players and Game consoles with the Camcorder Projector AV cable (supplied) and the composite AV cable that came with the media device. Camcorder Projector Composite AV-out DVD Player/SAT-...
  • Page 18 HDMI Cable This Camcorder Projector connects to most HD Digital TV’s with an optional (not included) HDMI cable. HDMI In HDMI Out HDMI cable (Optional) Turn on your HDTV. Connect the HDMI-in connector (the bigger end) of the HDMI cable to the HDTV. Turn on the Camcorder Projector.

  • Page 19: Advanced Operations

    Advanced Operations Menu Setting Items The menu is divided into four categories: Playback, Projection, Video, and Setting. • Navigating the Menu Press the Left/Right arrows to switch between page tabs. Press the Up/Down arrows to move through the sub-menu, then press the OK button to enter the sub-menu.
  • Page 20 Menu Submenu Option Description Category Item Off/Low/ Beep Adjust the keypad beep sound level. Medium/High Clock Set the date and time. Select the language used for the On Screen Language Display. Keypad Sensitivity -2/-1/0/+1/+2 Adjust the keypad sensitivity level. Sensitivity Calibration Enable keypad sensitivity calibration process.

  • Page 21: Battery Life Indicator

    Battery Life Indicator Icon Description Full battery Half-Full battery Low battery Empty battery Note 1: When the “Battery Low” message appears, the Camcorder Projector will automatically power off. Note 2: When the battery icon indicates “low battery”, you may continue using the Camcorder Projector without interruption by plugging the AC power adapter.

  • Page 22: Converting Video Files

    Converting Video Files Use ArcSoft Media Converter software (included in the CD) to convert video files into formats ™ compatible with your Camcorder Projector. To convert video files, install the software to your computer and then perform the following steps. Figure 2: Steps to convert video files on ArcSoft Media Converter™...

  • Page 23: Specifications

    Play Back Format converted by bundle Arcsoft Media Converter Audio: MP3 Camera Resolution 5 Megapixels Video Clip HD 720p, DVD, VGA, QVGA Image Resolution 8M, 5M, 3M Lens Focus Fixed Output HDMI, Audio Audio Speaker Mono Built-in Memory Memory Slot...
  • Page 24 Item Description Dimension (LxWxH) 125 x 62 x 24 mm Weight 180 g AV cable (RCA female to mini jack), USB cable, AC power Package Content adapter, Plug, User Manual and CD Note: Specifications are subject to change without notification. Supported file types for conversion (Input file formats) - Windows AVI files (*.AVI) - Advanced Systems Format (*.ASF)

  • Page 25: Troubleshooting

    Troubleshooting If your Camcorder Projector does not seem to be functioning properly, check the items below before you contact an authorized service center. Symptom Check Point The Camcorder Projector • Ensure the battery is fully charged or the AC power adapter can’t be turned on.

  • Page 26: Limited Warranty

    • All other accessories included with the 3M product are warranted to be free from defects in material or manufacture for a period of 1 year from the date of purchase. • Optional product accessories that are not sold as part of the 3M product are subject to individual warranties.
  • Page 27 This warranty does not cover consumables (e.g., batteries). This warranty is not transferable. 3M is not responsible for warranty service should the 3M label or logo or the rating label or serial number be removed unless otherwise stated in writing for the purposes of private labeling for partnership requirements.

  • Page 28: What 3M Will Do To Correct Problems

    For warranty support, please call or write your local 3M office or a 3M Authorized Service Provider to obtain an RMA # (Return Material Authorization number) before returning the product. If you are inside the Continental United States of America, please contact 3M ...

This manual is also suitable for:

Cp45
