RF-24 Wireless Remote Control
Automotive
For

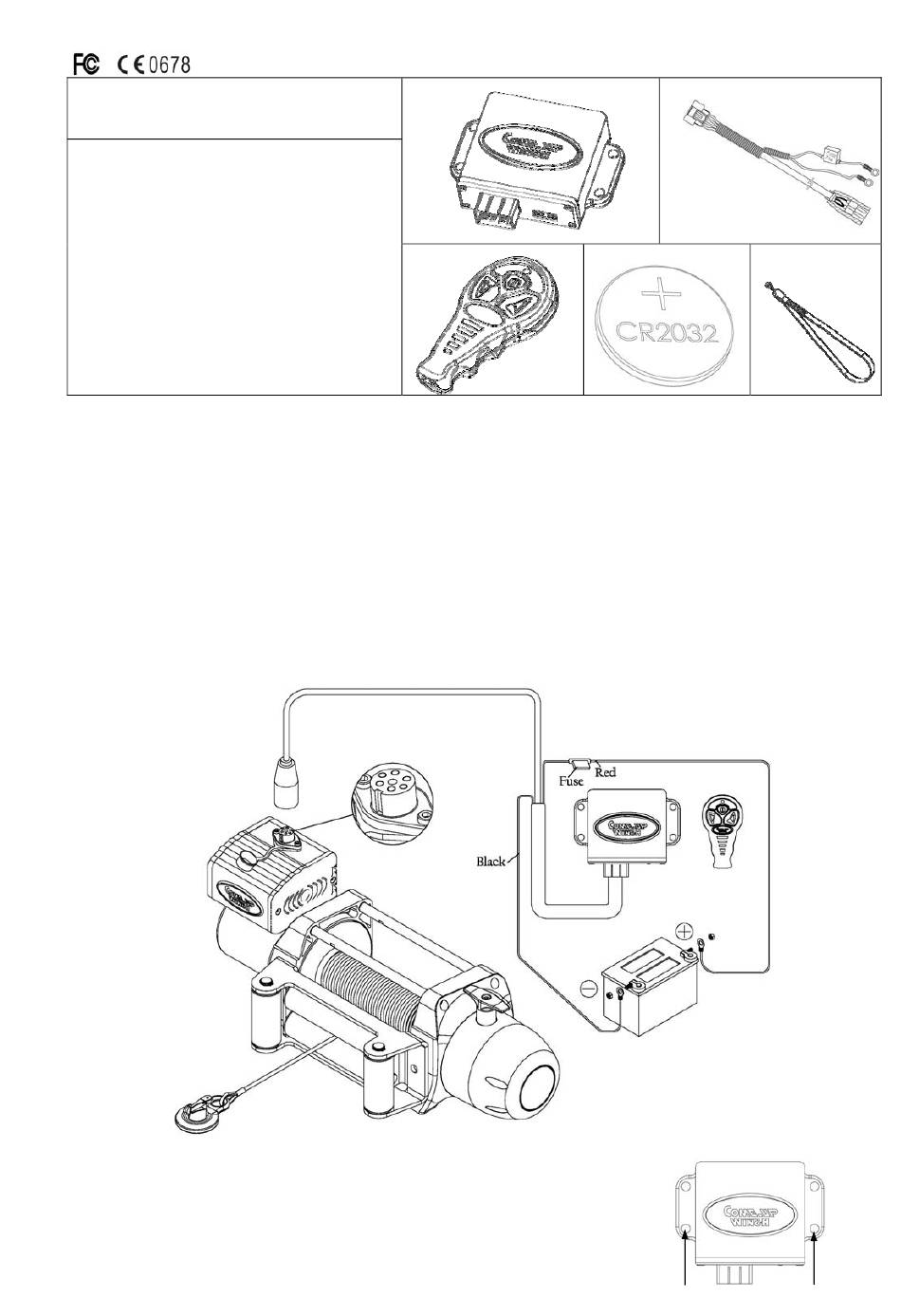

Wireless Control Kit includes:
1. Wireless Receiver.881103
2. Switch Cord W/6P plugs Ø8 X 1500 mm
3. Wireless Transmitter.881102
4. Lithium Battery: 3V CR2032
5. Handsaver Strap
I.Specifications
1. Transmission range:15 ~ 27 m (50 ~ 90 ft)
2. Receiver operation voltage: 8 ~ 24 V
3. Receiver fuse current rating: 7.5 A
4. Protection: IP-66
5. Operating Temperature Range: -20°C ~ +70°C
II.Installation Guide
Step 1: Connect the wiring
a. Connect the Switch cord W/6P plugs to the socket on the control pack.
b. Slice the Red wire to the receiver fuse then connect to the positive (+) terminal of the
battery.
c. Connect the Black wire to the negative (-) terminal of the battery.
Step 2: Mount the Receiver
a. The receiver should be mounted in a clear and dry location.
b. Mount on a flat surface with 2 pieces of Ø7 mm mounting
holes on each side of the receiver.
INSTALLATION GUIDE
1.
Winches
3.
4.
Minimum of one mounting hole each side
1
Part No.881262
2.
5.
