Comeup RF-24DP-D Installation Manual

RF-24DP-D Wireless Remote Control
For Cub series ATV/UTV Winch

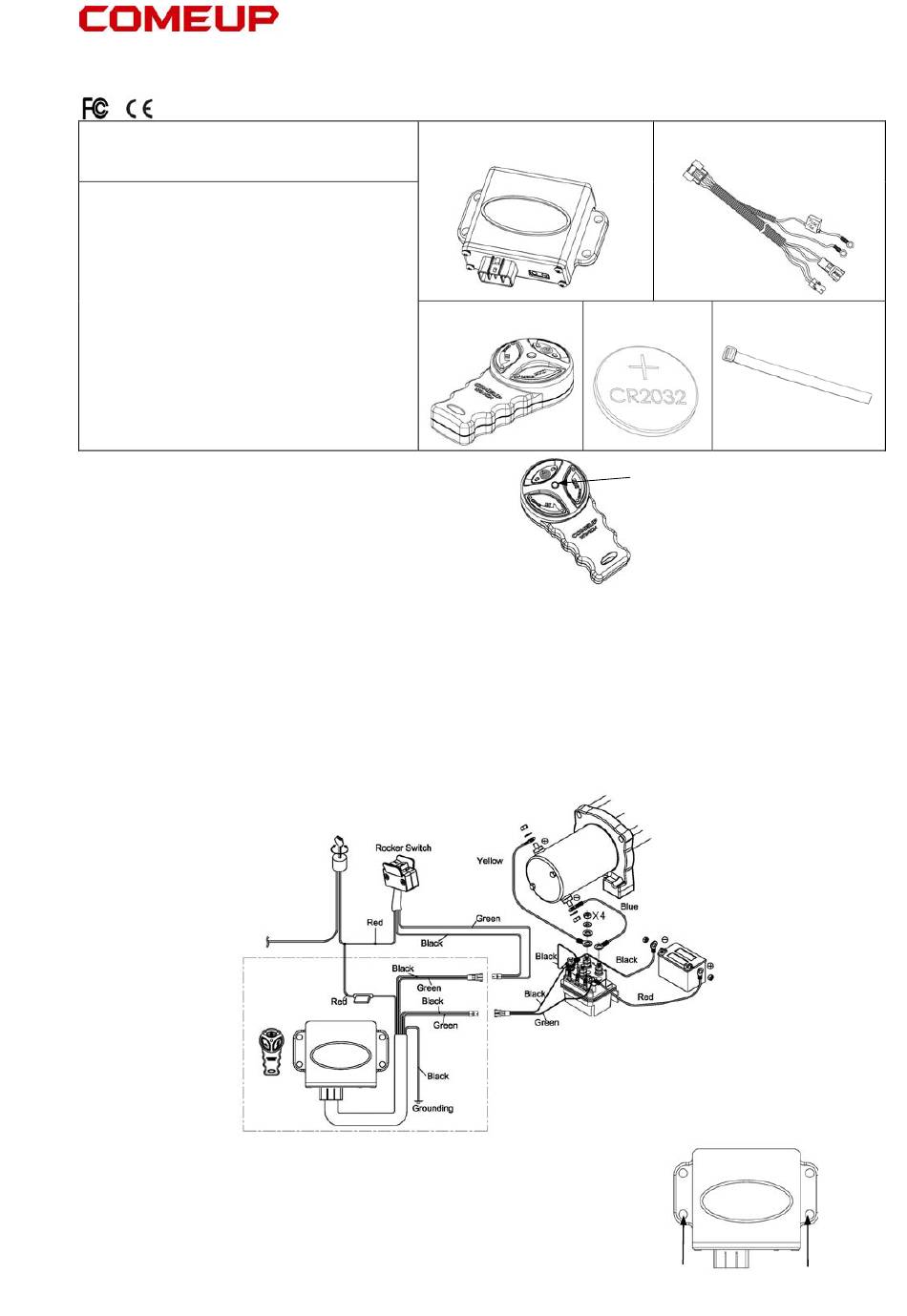

Wireless Control Kit includes:
1 Wireless Receiver.881103
2 Wiring Harness 1250 mm.
3 Wireless Transmitter.883822
4 Lithium Battery: 3V CR2032
5.Handsaver Strap.
I.Specifications
1. Transmission range: 15 ~ 27 m (50 ~ 90 ft)
2. Receiver operation voltage: 8 ~ 24 V
3. Receiver fuse current rating: 7.5A
4. Protection: IP-66
5. Operating temperature range: -20°C ~ +70°C
6. LED indication: Green light for power on; Red light for winching; Blinking green for low battery
life; Blinking red light for poor signal received
II.Installation Guide
Step 1: Connect the wiring
a. Connect the Black and Green wires to the same color wires on the contactor and
handlebar trigger switch respectively shown on the wiring diagram.
b. Slice the Red wire to the receiver fuse then connect to the positive (+) terminal of the
battery.
c. Connect the Black wire to the negative (-) terminal of the battery.
Step 2: Mount the Receiver
a. The receiver should be mounted in a clear and dry location.
b. Mount on a flat surface with 2 pcs of Ø7 mm mounting
holes on each side of the receiver.
INSTALLATION GUIDE
1.
3.
4.
Minimum of one mounting hole each side
1
Part No.883873
2.
5.
LED indication
