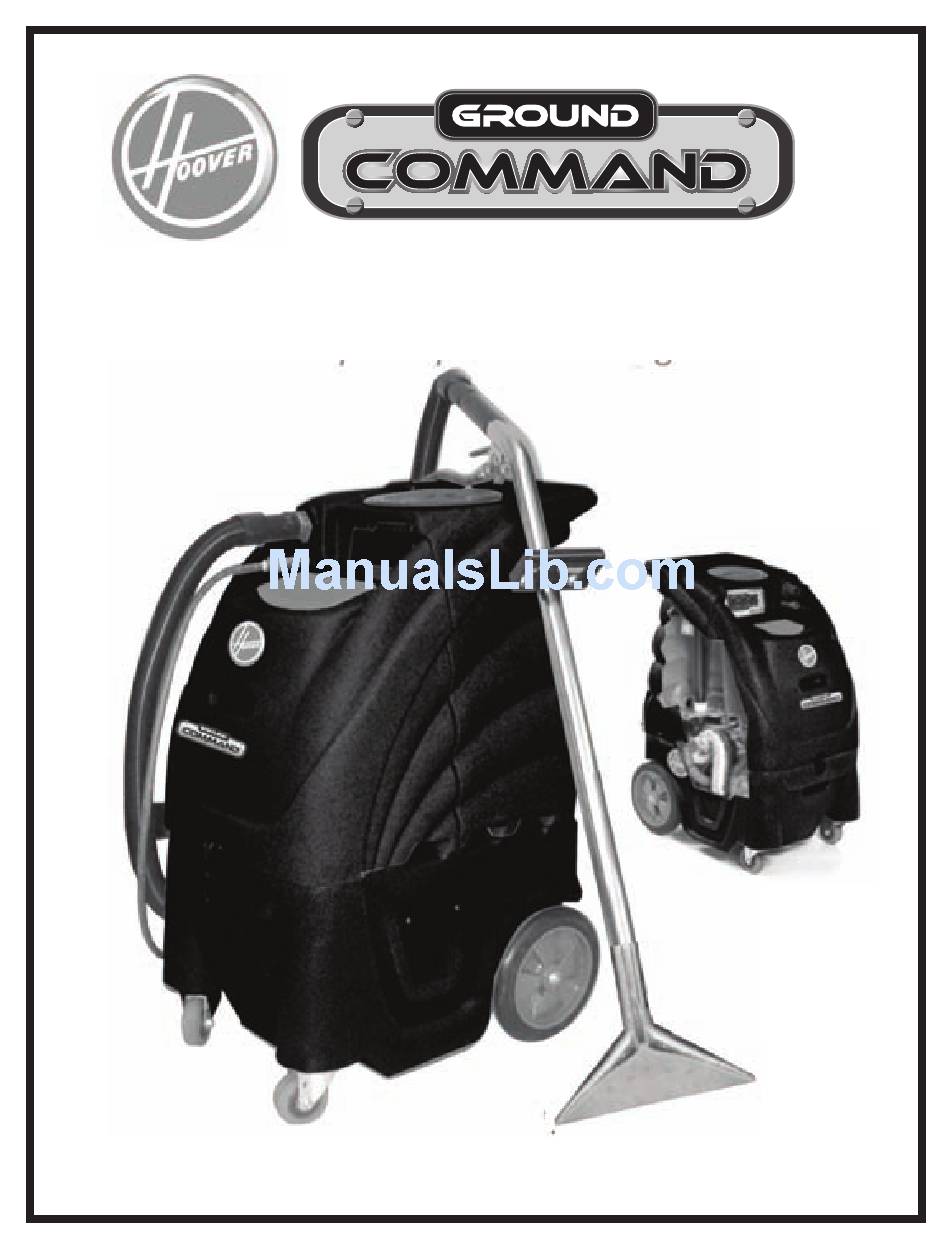

- Page 1 ™ 6-Gallon / 100 psi Carpet Extractor Safety, Operation and Maintenance Manual with Parts List Important Information and Safety Instructions PLEASE READ BEFORE USE! Part #961130016- 10/10- Rev1...
- Page 2 ™ 6-Gallon / 100 psi Carpet Extractor TABLE OF CONTENTS Safety Instructions..................2 Set-up and Operation................2 Maintenance and Storage.................3 Trouble Shooting Guide................4 Schematic Drawing CH83010..............5 Replacement Parts List CH83010............6 Schematic Drawing CH83015..............7 Replacement Parts List CH83015............8 Page 1...
- Page 3 ™...
- Page 4 ™...
- Page 5 ™...
- Page 6 Ground Command - CH83010 Schematic Drawing ™ Page 5...
- Page 7 Drawing# Item ID Item Description Qty Needed . SN-6-ST-BLK 6 Gal. Sol. Tank Black 1.00 ™ . 10-0479 1/4" Male Close Nipple 1.00 . 10-0845 1/4" Strainer for Extractor 1.00 . SN-6-L-ORA-1 6 Gallon Solution Tank Lid Orange 1.00 . 80-0200 Sniper Harness 1.00 .
- Page 8 ™ Page 7...
- Page 9 Drawing# Item ID Item Description Qty Needed . SN-6-ST-BLK 12 Gal. Sol. Tank Black 1.00 ™ . 10-0479 1/4" Male Close Nipple 1.00 . 10-0845 1/4" Strainer for Extractor 1.00 . SN-6-L-ORA-1 12 Gal. Rec. Tank Orange 1.00 . 80-0200 Sniper Harness 1.00 .
- Page 10 ™ 6-Gallon / 100 psi Carpet Extractor Hoover Inc. 7005 Cochran Road Glenwillow, OH 44139 (888) 321-1134 For Service, Ask for Tech. Service Dept., ext. 2554 www.hoover.com Model #_________________________________________________________________ Serial #_________________________________________________________________ Distributor Name:________________________________________________________ Distributor Phone #:______________________________________________________ Date of Purchase:________________________________________________________ NOTES:...
