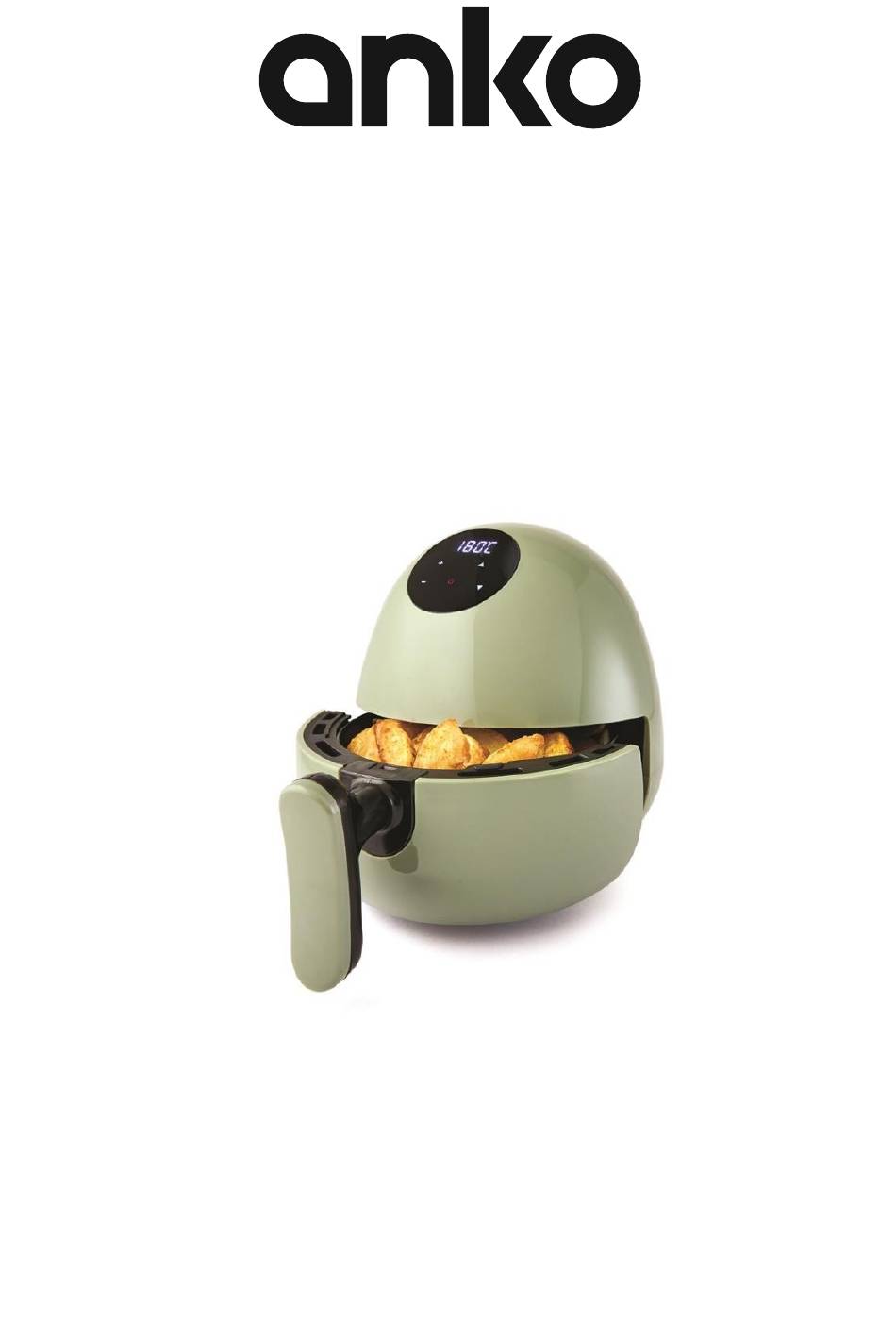

- Page 1 Mini Air Fryer KAF883 User Manual PLEASE READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE...
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS Read all instructions carefully, even if you are familiar with the appliance. • To protect against the risk of electric shock, DO NOT IMMERSE the main unit, power plug or cord in water or any other liquid. • Please read these instructions before operating and retain these for future reference. - Page 3 • Keep the appliance and its mains cord out of the reach of children. • The appliances are not intended to be operated by means of an external timer or separate remote-control system. • NEVER USE this appliance with an extension cord, power board or double adapters.
- Page 4 and flat heat-resistant surface, then remove the ingredients the pan onto plate or into a dish with a spatula or tongs. • Surfaces may become hot during use. • Do not operate the appliance if there is a malfunction or if it is damaged in any manner.
-
Page 5: Automatic Switch-Off
Automatic switch-off The appliance has a built-in timer; it will automatically shut down the appliance when countdown is completed. You can manually switch off the appliance by pressing the Power button, heating- up will stop immediately, and the fan will automatically shut down after approximately 60 seconds. - Page 6 FEATURES OF YOUR MINI AIR FRYER Air Outlet (Not shown) Control Panel Handle Rack...
- Page 7 GET TO KNOW THE CONTROL PANEL Temperature/Time Display Time Adjustment Temperature Button Adjustment Button Power Button Power Button Once the Unit is plugged in, the buzzer will sound, and the display will light up to show the temperature or time alternatively. After setting the temperature and time, press the Power button once;...
-
Page 8: Before First Use
Temperature adjustment button “ ” or “ ” Press “ ” or “ ” button to set the operation temperature from 60°C to 200°C by 5°C increments. BEFORE FIRST USE 1. Remove all packaging materials including any within the pan. Slide out the pan, place on a flat surface and take out the rack within the pan. -
Page 9: Using The Appliance
USING THE APPLIANCE 1. Place the rack in the pan and position it at the bottom. Then put the ingredients into the pan and slide the pan into the appliance. NOTE: • Do not fill the pan with oil or any other liquid. •... - Page 10 Caution: The appliance will stop working and the control panel will go off when the pan is pulled out. When the pan is placed back into the appliance, it will resume cooking at the remaining time showing on the display after the pan was repositioned into the appliance.
-
Page 11: Memory Function
Be mindful that all surfaces of the pan remain hot for some time, ensure to only carry by handle and use oven mitts where possible. CAUTION: After the cooking process is completed, do not turn the pan with ingredients upside down (excess oil may have collected in the pan that could drip out and cause scalding). - Page 12 NOTE: Please keep in mind that time and temperature settings are indicative only and that variation in ingredients size, shapes and brands may require minor time adjustments up or down from manual heat settings or the dedicated preset cooking times to achieve your desired / preferred cooking outcome.
- Page 13 NOTE: You can choose the best temperature and time for different ingredients. Time Temperature Shake Additional (MIN.) (°C) Information Potatoes & Fries Thin Frozen Fries 12-16 200 °C Shake Thick Frozen Fries 12-20 200 °C Shake Home-made Fries 18-25 180 °C Shake Add ½...
-
Page 14: Cleaning And Maintenance
Chicken Breast 10-15 180 °C Snacks Spring Rolls 8-10 200 °C Shake Use oven-ready Frozen Chicken 6-10 200 °C Shake Use oven-ready Nuggets Frozen Fish Fingers 6-10 200 °C Use oven-ready Frozen 8-10 180 °C Use oven-ready Breadcrumbed Cheese Snacks Stuffed Vegetables 160 °C Baking... - Page 15 Care must be taken not to touch any hot surfaces. Do not use harsh abrasives, caustic cleaners or oven cleaners when cleaning this appliance. 1. Wipe the outside of the appliance with a moist cloth. Clean the pan/rack with hot water, washing-up liquid and a non-abrasive sponge.
-
Page 16: Technical Specifications
RECIPE Making home-made fries To make home-made fries, follow the steps below: 1. Peel and slice the potatoes. 2. Wash the potato sticks thoroughly and dry them with kitchen paper. 3. Pour 1/2 tablespoon of olive oil in a bowl, put the sticks on top and mix until the sticks are coated with oil. -
Page 17: Troubleshooting
TROUBLE SHOOTING Problem Possible cause Solution The fryer does The appliance is not plugged Put the mains plug in an earthed wall socket not work The amount of ingredients in Place smaller batches of ingredients in the pan. the pan are too many. Smaller batches are fried more evenly. - Page 18 12 Month Warranty Thank you for your purchase. Your new product is warrantied to be free from defects in materials and workmanship for the period stated above, from the date of purchase, provided that the product is used in accordance with accompanying recommendations or instructions where provided.
