- Page 1 ORIGINAL INSTRUCTIONS >EN PETROL MULTI-FUNCTION FCOMBID655 INSTRUCTION MANUAL CAUTION: Read this manual before using this machine!
-
Page 2: Table Of Contents
CONTENTS 1. SAFETY INSTRUCTIONS............................ 3 2. YOUR PRODUCT..............................15 3. ASSEMBLY................................17 4. FILLING OIL TANK AND FUEL TANK......................22 5. OPERATION................................. 23 6. MAINTENANCE..............................27 7. STORAGE................................32 8. DISPOSAL AND RECYCLING.......................... 32 9. TROUBLESHOOTING............................32 10. DECLARATION OF CONFORMITY....................... 34 11. -
Page 3: Safety Instructions
1. SAFETY INSTRUCTIONS Safety instructions for brushcutter and grass trimmer Proper safety precautions must be observed. This unit must be handled carefully. DO NOT EXPOSE YOURSELF OR OTHERS TO DANGER. Follow these general rules. Do not permit others to use this machine unless they are thoroughly responsibleand have read and understand the machine manual and are trained in its operation. - Page 4 Do not store in a closed area where fuel vapors can reach an open flame from hot water heaters, furnaces, etc. Store in a locked, well-ventilated area only. Ensure safe and proper performance of your product. These parts are available from your dealer. ...
-
Page 5: Kickback And Related Warnings
Wear no-slip heavy duty work gloves to improve your grip on the brush cutter handle. Gloves also reduce the transmission of machine vibration to your hands. WARNING: The cutter area is still dangerous while the machine is coasting to a stop. ... -
Page 6: Residual Risks
Residual risks Even if you use this tool correctly, there are always residual risks. The following hazards may arise inconnection with the structure and manufacture of this power tool: Hearing impairment if no suitable hearing protection is worn. Cuts if no suitable protective clothing is worn. Health damage resulting from vibration in the hands and arms if the device is used for a long period of time or is not handled and maintained properly. - Page 7 Use only an approved container. Never remove the fuel cap or add fuel with the power source running. Allow engine and exhaustcomponents to cool down before refueling. Do not smoke. Never refuel indoors. Never store the hedge trimmer or fuel container inside where there is an open flame, such ...
-
Page 8: Additional Instructions
Additional instructions Warning - Never allow children to use the hedge trimmer. Work only during in the day or with an enough artificial light. Before starting to work, check the condition of the tool. Ensure that all the parts of the machine are well fixed and tightened. ... - Page 9 your machine and protect yourself correctly. Also avoid voluntarily breathing exhaust fumes; always hold the machine correctly when you use it. Regularly lubricate the blades of the trimmer by using a lubricant which is sold in specialized stores. Residual risks Even if you use this product in compliance with all safety requirements, the potential risks of injury and damage remain.
- Page 10 Keep the handles free from oil and fuel. Always use proper handles and shoulder strap when cutting. Do not smoke while mixing fuel or filling tank. Do not mix fuel in an enclosed room or near open flames. Assure adequate ventilation. ...
- Page 11 After the engine has stopped, the muffler is still hot. Never place the machine in any places where there are flammable materials (dry grass, etc.), combustible gasses or combustible liquids. Pay special attention to operation in the rain or just after the rain as the ground may be slippery. ...
- Page 12 Never modify the tool in any way. Improper use of the machine can cause SERIOUS OR FATAL PERSONAL INJURY. The engine exhaust forms this product contains chemicals to cause cancer, birth defects, of other reproductive harm. Check regularly that the cutting attachment stops turning when the engine idles. ...
-
Page 13: Intended Use
To minimize those risks, follow the instructions of this manual about wearing personal equipment of protection, take some rest during the operation and the manipulation of the tool. Do not work for a prolonged time. Intended use 1)Brushcutter and grass trimmer This machine can be used as a grass trimmer with the sharp nylon line, and as a brush cutter with the cutting blade. - Page 14 Wear protective footwear. Caution to exhaust gases. Caution – Risk of fire. Do not smoke and do use the tool near naked flame. The accessible part are hot when operate the tool. Caution! Risk of rebound. Warning – Risk of electric shock. Always beware of the danger from overhead electric-power line, keep a safe distance at least 10m from the power line.
-
Page 15: Your Product

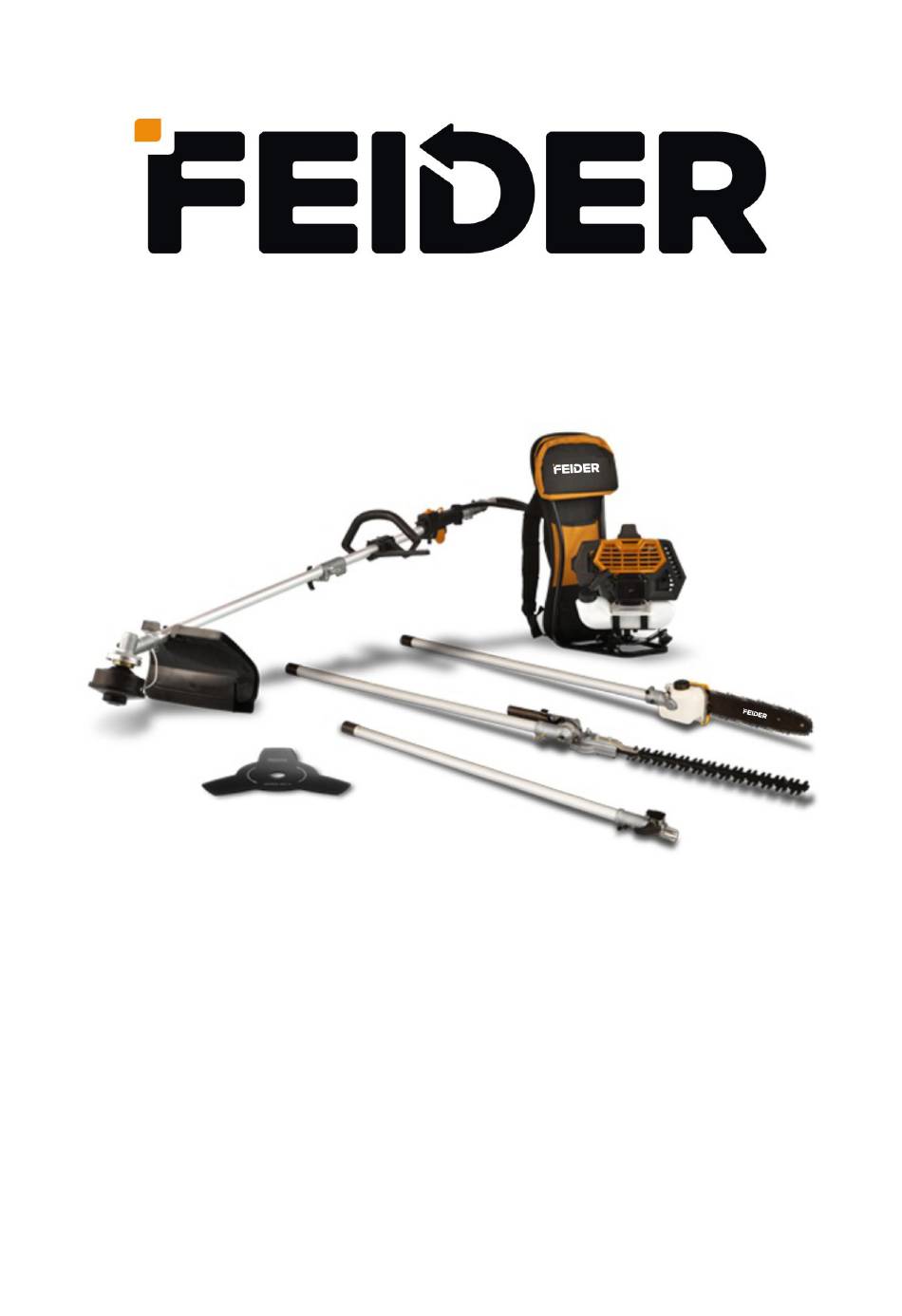

2. YOUR PRODUCT a. Description Motor drive unit Throttle lever Carter of protection for brushcutter and grass trimmer Pole saw Oil tank for chain saw Spark plug wrench Tube Saw chain Open-ended spanner (8mm /10 mm) Brushcutter/grass Chain saw blade Allen key (size 4) trimmerhead Nylon wire for grass... -
Page 16: Technical Data
areavailable from your specialized dealer. Specify our part numbers as well as the type and year of construction of the device in yourorders. Important! Equipment and packaging material are not toys. Do not let children play with plastic bags, leaves, or small parts. There is a risk of swallowing and suffocation! c. -
Page 17: Assembly
Idling: 9,231m/s² Racing: 9,623m/s² Rear handle Idling: 9,237m/s² Racing: 9,720m/s² Uncertainty: K=1,5m/s² Hedge trimmer Front handle Idling: 9,231m/s² Racing: 9,623m/s² Rear handle Idling: 9,237m/s² Racing: 9,720m/s² Uncertainty: K=1,5m/s² 3. ASSEMBLY When assembling, put on protective gloves. Blades can be sharp. a. - Page 18 • Secure the air filter cover with a screw again. • Remove the screw from the handle, insert the other side of the flexible shaft into the handle and usethe screw to affix it to the handle. • Use cable ties to affix the accelerator cable to the flexible shaft. b.
- Page 19 d. Assemble the handle • Install the front handle as shown on the image. • Make sure that you align the pin with the hole. Tighten the screws only loosely before you have themost comfortable working position set to the risers. e.
- Page 20 To demount the blade, use screwdriver to hold flange and pin to release nut, the blade can be taking off. Warning! Please make sure the cutting head has been assembled correctly before use! g. Cutting head for grass trimmer Align the two holes of the flange and the pin. Use a tool to hold the flange.
- Page 21 Fitting the cutter bar and the chain • Remove the chain wheel cover (J) by undoing the fastening nut (I). Lay the chain (F) as shown into the groove which runs around the cutter bar (E). • Note the alignment of the chain teeth. Insert the cutter bar into the mount at the gear unit. •...
-
Page 22: Filling Oil Tank And Fuel Tank
During cutting, the temperature of the chain rises and its length changes. It is important therefore to check the chain tension at least every 10 minutes and to adjust it again as required. This applies to new saw chains. When you have finished working, slacken the chain again as itwill shorten when it cools down. -
Page 23: Operation
eyes. Make sure you observe the “Safety Instructions” paragraph. • Only ever refuel the tool outdoors or in sufficiently ventilated rooms. • Clean around the filling area. Contaminants in the tank will cause operating problems. • Before refueling, shake the container with the fuel mixture. •... - Page 24 4) Pull the recoil starter handle 3-5 times to start the engine. 5) Wait a while adjust the choke lever to the RUN position (open position). 6) First press the lock off lever (8) and then switch the throttle lever (11) on, the machine will be working.
- Page 25 diameter of maximum 2 cm), and high grass. • While using metal cutting tools, there is generally a risk of recoil, when the tool hits a solid obstacle (stones, trees, branches, etc.). Thereby, the tool is hurled backwards against the rotating direction.
- Page 26 • Remove the oil tank cap. • Fill the chain oil tank to 80% with chain oil. • Close Oil tank cap. • Oil tank capacity: 140 ml Oil Supply Control • Always make sure that the automatic oil system is working properly. Always ensure the oil tank is full.
-
Page 27: Maintenance
- Put in about 15 cm from the base of the top of a further section - Saw until the branch breaks. The risk of injury on the trunk is no. - Finally, remove with a clean cut from the top of the trunk along the remaining. Hazards by reactive forces •... - Page 28 • Do not spray the unit with water. It damages the engine. • Clean the unit with a cloth, hand brush, etc. • Use a moist piece of cloth to clean the plastic parts. Do not use any cleaning agents, solvents, or sharp objects.
- Page 29 • Sharpen the blade with a flat file and make sure that the angle of the cutting edge is not altered in the process. File in one direction only. • Important! Install the cutting knife again • Replace and sharpen the cutting blade at the end of the mowing season. Grinding the cutting blade If the blades become slightly dull, you can sharpen them yourself.
- Page 30 Care of the guide rail Turn the rail around every time you have the chain sharpened or replaced. This will avoid a one- sided wear ofthe rail, especially at the top and bottom. Regularly clean: the opening for the oil supply the oil passage the raceway groove of the rail Servicing and sharpening of saw chain...
- Page 31 • A File Holder must be used when sharpening the saw chain by hand. The correct filing angle marked on it. • Hold the file horizontally (at a right angle to the guide rail) and file according to the angle mark on the file holder.
-
Page 32: Storage
7. STORAGE a) Cleaning • Keep handles free of oil, so you always have a secure hold. • Clean the equipment as required with a damp cloth and, if necessary, mild washing up liquid. Important! • Always pull out the spark boot plug each time be- fore carrying out any cleaning. •... - Page 33 Fault Possible cause Remedy Air filter is contaminated. Clean/replace the air filter. • • Fuel filter is blocked. Clean or renew the fuel filter. • • Lack of fuel supply. Re-fuel. • • Fault in the fuel line. Check the fuel line for kinks or damage. •...
-
Page 34: Declaration Of Conformity
SODILOG SAS 4 RUE CURIE, CS 91617 68016 COLMAR CEDEX FRANCE Declares that the machine: PETROL MULTI-FUNCTION FCOMBID655 Serial No: 20250605797-20250605986 Have been designed in compliance with the following standards: EN ISO 11680-1 : 2021 ; EN ISO 11680-2 :2021 ;... -
Page 35: Warranty
1 1 . WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 5 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. -
Page 36: Product Failure
1 2 . PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 37: Warranty Exclusions
13. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •... - Page 38 SODILOG SAS 4 RUE CURIE, CS 91617 68016 COLMAR CEDEX FRANCE Made in PRC...
