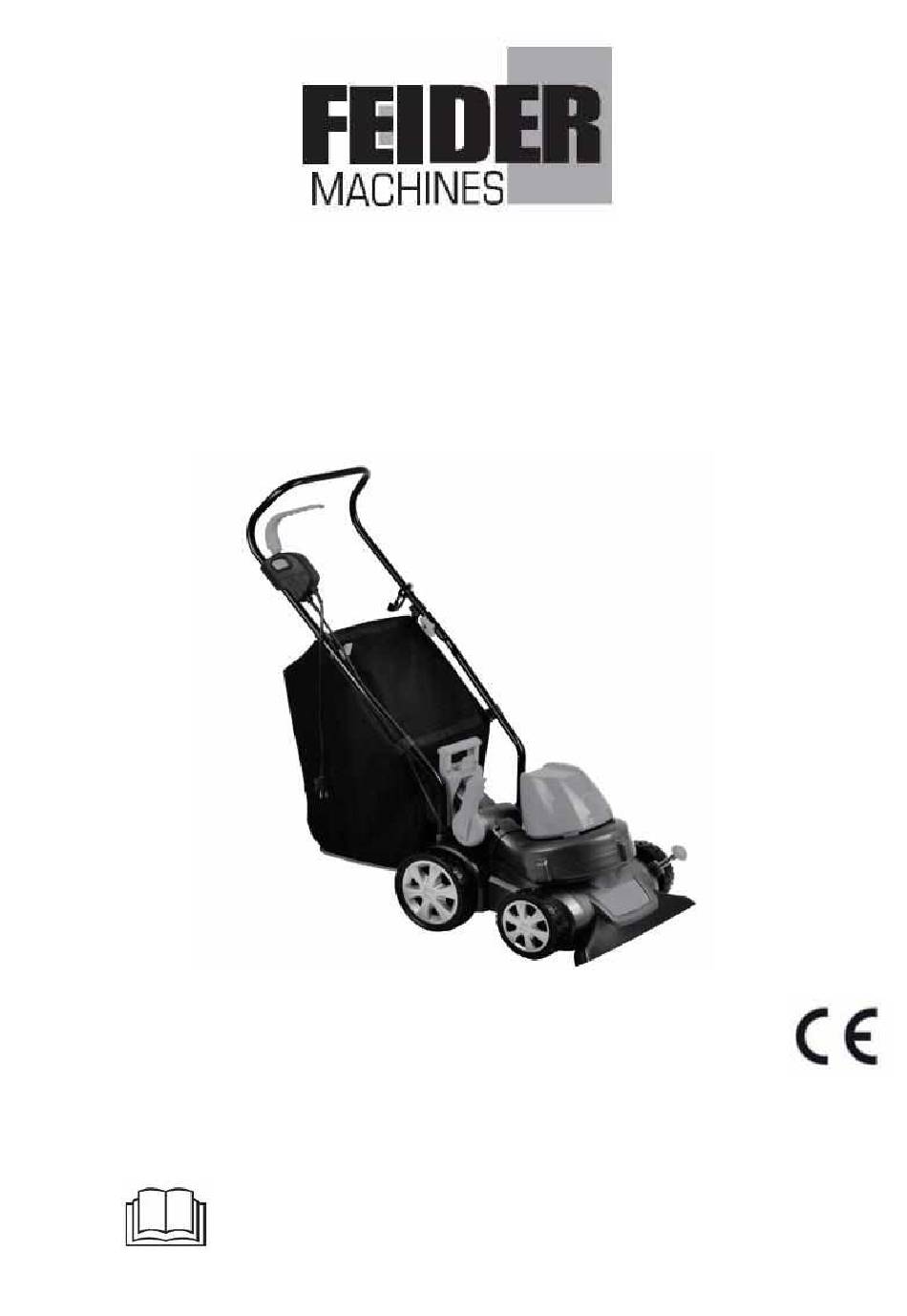

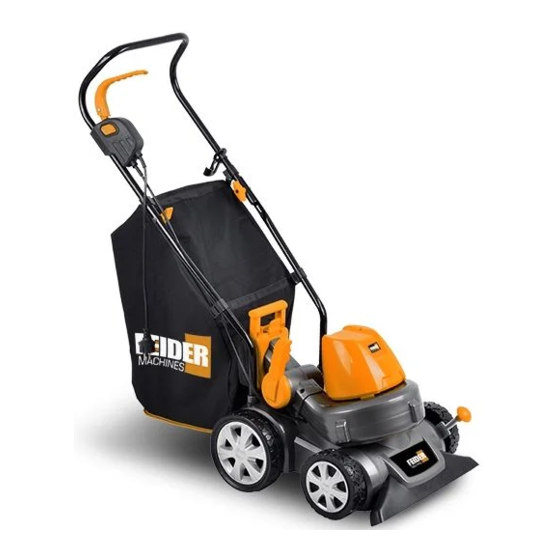

- Page 1 ORIGINAL INSTRUCTIONS INSTRUCTION MANUAL ELECTRIC BLOWER VACUUM SHREDDER FASBE1600 / FASBE1600-UK BUILDER SAS 32 Rue Aristide Bergès, 31270 CUGNAUX - FRANCE Please read the instructions carefully before starting the machine.
-
Page 2: Table Of Contents
ORIGINAL INSTRUCTIONS CONTENTS 1. Safety instructions 2. Assembly 3. Starting up the machine 4. Operation 5. Maintenance 6. Technical Date 7. Declaration of Conformity 8. Warranty 9. PRODUCT FAILURE 10. WARRANTY EXCLUSIONS... -
Page 3: Safety Instructions
ORIGINAL INSTRUCTIONS 1. Safety instructions IMPORTANT READ CAREFULLY BEFORE USE KEEP FOR FUTURE REFERENCE Safe operating practices for hand-held mains-operated electrical garden vacuums, and garden blower/vacuums with or without shredding means and garden blowers Training a) Read the instructions carefully. Be familiar with the controls and the correct use of the machine. - Page 4 ORIGINAL INSTRUCTIONS c) Do not wear loose clothing or jewellery that can be drawn into the air inlet. Keep long hair away from the air inlets. d) Operate the machine in a recommended position and only on a firm, level surface. e) Do not operate the machine on a paved or gravel surface where ejected material could cause injury.
- Page 5 ORIGINAL INSTRUCTIONS c) Do not allow hands or any other part of the body or clothing inside the feeding chamber, discharge chute, or near any moving part. d) Keep proper balance and footing at all times. Do not overreach. Never stand at a higher level than the base of the machine when feeding material into it.
- Page 6 ORIGINAL INSTRUCTIONS cleaning debris. j) Never operate the machine with defective guards or shields, or without safety devices, for example debris collector in place. k) Keep the power source clean of debris and other accumulations to prevent damage to the power source or possible fire.
- Page 7 ORIGINAL INSTRUCTIONS with care and keep it clean. b) Store the machine in a dry place out of the reach of children. c) Always allow the machine to cool before storing. d) When servicing the shredding means be aware that, even though the power source is switched off due to the interlock feature of the guard, the shredding means can still be moved.
- Page 8 ORIGINAL INSTRUCTIONS for their safety. Children should be supervised to ensure that they do not play with the appliance. · Do not allow children, people with reduced physical, sensory or mental abilities, or those with no experience and knowledge or people who do not know these instructions to use the machine.
- Page 9 ORIGINAL INSTRUCTIONS check that the guards and safety devices are in place. · When operating the machine, always wear protective equipment including: face shield, visor or goggles, ear protection, helmet, gloves, non-slip shoes and protective clothing. · Always carry the machine by its handle; Never use the cord or any other part of the machine.
- Page 10 ORIGINAL INSTRUCTIONS · Do not use the product with damaged guards or shields, shields or screens not in place. · Do not bend. Keep a good balance at all times. · Keep handles dry, clean and free of oil and grease. ·...
- Page 11 ORIGINAL INSTRUCTIONS shoes. · When planning your work schedule, allow enough time for rest. Limit continuous use of the device, for example, use 30 to 40 minutes per session and take 10 to 20 minutes of rest between work sessions. Work a maximum of two hours a day.
- Page 12 ORIGINAL INSTRUCTIONS Residual risks Even if you use this product in accordance with all safety requirements, the risk of injury and damage remain. The following hazards may occur in the structure and design of this product: a. There is adverse health consequences resulting from the emission of vibrations if the product is used for long periods or if it is not properly handled and properly maintained.
- Page 13 ORIGINAL INSTRUCTIONS h. Contact with the tool in operation Intended use This vacuum / blower is intended to be used for the suction and blowing of leaves, dust and similar small materials. It should not be used to vacuum and blow water, chemicals, flammable materials, metal or wood and other dangerous objects.
- Page 14 ORIGINAL INSTRUCTIONS Risk of injury by rotating impeller. Keep your hands in safe distance. Keep away from the danger area. Wear eye protective goggles! Wear ear protectors! Unplug the mains plug if the cable becomes damaged or tangled. Always disconnect the machine from the mains before commencing maintenance. Read the instructions Keep dry at all times.
-
Page 15: Assembly
ORIGINAL INSTRUCTIONS Assembly 2.1.Take out the machine from the packing case, check below parts are available or not, if some parts are missing, please contact your agent in time. - Page 16 ORIGINAL INSTRUCTIONS 2.2.Insert the lower bar (2) into the holes of deck and lock with the blots(3). 2.3.Connect and lock the upper bar and lower bar with square neck bolts & with two-Angle button(4).
- Page 17 ORIGINAL INSTRUCTIONS Clamp the wire with clip on the bar. Install the collection bag(5): Plastics part on collection bag locked with machine, 4 hooks on the collection bag are hung on the bar.
-
Page 18: Starting Up The Machine
ORIGINAL INSTRUCTIONS 3 Starting up the machine 3.1 Adjust the working height of the machine, 4 position. - Page 19 ORIGINAL INSTRUCTIONS 3.2 Start the machine 1) Connect the power cord to the switch box of the machine; 2) Press the button on the switch box,Then press the trigger and the machine starts. 3) Release the trigger then the machine stopped.
-
Page 20: Operation
ORIGINAL INSTRUCTIONS 4. Operation 4.1 Vacuum function: 1) Put the adjustor on the left position 2) Collection bag capacity 45L, take off the collection bag from machine to clean the leaves in time. 4.2 Blow function: 1) Put the adjustor on the right position. 2) Keep away from people and small animals. - Page 21 ORIGINAL INSTRUCTIONS...
-
Page 22: Maintenance
ORIGINAL INSTRUCTIONS 5. MAINTENANCE AND STORAGE WARNING! Do not use products that can damage the device (abrasive, corrosive, alcohols, steam cleaners, abrasive cloths, scrapers, etc.). Do not install the appliance in a dishwasher for cleaning! The unit must be completely switched off, unplugged, and cool before cleaning. a. - Page 23 ORIGINAL INSTRUCTIONS 6. Technical data Voltage:............230-240V~ 50Hz Power: .............1600W No-load Speed: ........13400/min Max Air Speed: ........270km/h Max Air Volume: ........17m³/min Catcher Volume: ........45L Wheel Diameter: ........Front 6", rear 7.5" Type of protection ........IPX4 Weight............9.5kg Sound pressure level LpA Measured at the operator position, behind the handle.....LPA: 95 dB(A), K=3dB(A) Guaranteed sound power level L according to 2000/14/EC....
-
Page 24: Declaration Of Conformity
ZI, 32 rue, Aristide Bergès – 31270 Cugnaux - France Tel: +33 (0)5.34.502.502 Fax: +33 (0)5.34.502.503 States that the designated below machine: Garden Blower Vacuum FASBE1600 /FASBE1600-UK Serial number: 20200732170-20200732219 / 20200732220-20200732269 Developed, designed and manufactured in accordance with the requirements of directives: Machinery Directive 2006/42/EC EMC Directive 2014/30/EC... -
Page 25: Warranty
9. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 26: Product Failure
10. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 27: Warranty Exclusions
11. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
