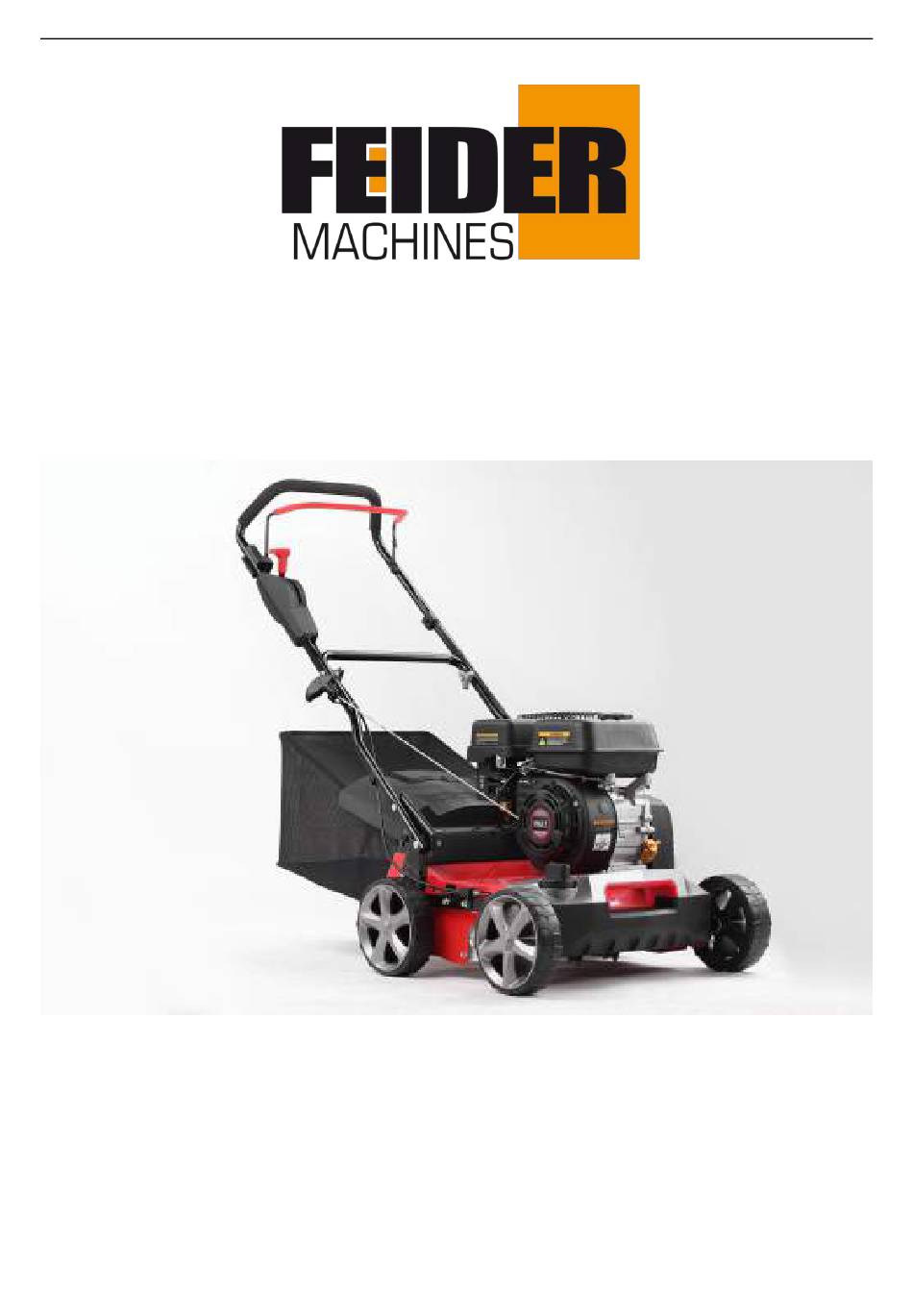

- Page 1 ORIGINAL INSTRUCTIONS Petrol Lawn Scarifier And Aerator Instruction manual Model: FST200PRO READ INSTRUCTIONS BEFORE USE THE MACHINE BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux - France MADE IN PRC...
- Page 2 ORIGINAL INSTRUCTIONS INTENDED USE The basic version of the equipment is a scarifier intended for private use, i.e. for use in home and gardening environments. The scarifier roller is designed for ripping moss and weeds out of the soil and for loosening the soil.
-
Page 3: Table Of Contents
ORIGINAL INSTRUCTIONS CONTENT SECTION 1 SYMBOLS MARKED ON THE PRODUCT ……………..………….….4 SECTION 2 GENERAL SAFETY RULES……………… ……………..….………….4 SECTION 3 GENERAL IDENTIFICATION ………………..……………….………9 SECTION 4 TECHNICAL DATA ....………………………………………..9 SECTION 5 ASSEMBLY ........ ………………………………………..10 SECTION 6 OPERATING INSTRUCTIONS ….…………………….……..……..12 SECTION 7 REPLACEMENT OF THE ROLLER………….……………………….14 SECTION 8 FUNCTIONAL DESCRIPTION………….……….…………………….16 SECTION 9 MAINTENANCE INSTRUCTIONS…………………….……..………16 SECTION 10 LUBRICATION INSTRUCTIONS…………………….……..………16... -
Page 4: Section 1 Symbols Marked On The Product
ORIGINAL INSTRUCTIONS 1. SYMBOLS MARKED ON THE PRODUCT Read this instruction book carefully before using the product and keep it in a safe place for future reference. Keep by standers away. Risk of projections Beware of cutting fingers or toes. Remove spark plug lead before performing any service on the machine Attention toxic fumes! Warning! Do not use the appliance in closed or poorly ventilated environment. -
Page 5: Section 2 General Safety Rules
ORIGINAL INSTRUCTIONS Do not the tool under rain Wear ocular and hearing protection. 2. GENERAL SAFETY RULES Before you put this machine into operation you have to read instructions in this manual. When using this machine, observe the following safety instructions to exclude the risk of personal injury or material damage. - Page 6 ORIGINAL INSTRUCTIONS e) While operating the machine, always wear substantial footwear and long trousers. Do not operate the machine when barefoot or wearing open sandals; f) Thoroughly inspect the area where the machine is to be used and remove all stones, sticks, wires, bones and other foreign objects;...
- Page 7 ORIGINAL INSTRUCTIONS l) Do not change the engine governor settings or over-speed the engine; m) Disengage all tine and drive clutches before starting the engine; n) Start the engine carefully according to instructions and with feet well away from the tine(s); o) Do not tilt the machine when starting the engine, except if the machine has to be tilted for starting.
- Page 8 ORIGINAL INSTRUCTIONS The operators and first-time and/or inexperienced operator must receive proper training in the use, adjustment and operation of the machine, including prohibited operations. 1. Never allow children or people unfamiliar with these instructions to use the machine. Local regulations can restrict the age of the operator.
- Page 9 ORIGINAL INSTRUCTIONS 29. Do not use this machine while you are tired, ill or under the influence of drugs, alcohol, or medication. A moment of inattention while operating this machine can cause you to lose control and may result in series personal injury.
- Page 10 ORIGINAL INSTRUCTIONS 12. Use the petrol tool, accessories and tool bits etc., in accordance with these instructions and in the manner intended for the particular type of petrol tool, taking into account the working conditions and the work to be performed.
-
Page 11: Section 3 General Identification
12. Raise the tines above ground level before storing the machine. 3. GENERAL IDENTIFICATION 4. TECHNICAL DATA Model FST200PRO Engine Displacement 212cm Nominal Power 4.0kW Maximum operating engine speed... -
Page 12: Section 5 Assembly
ORIGINAL INSTRUCTIONS Measured sound power level 101.2 dB(A) K=3.43dB(A) Measured sound pressure level 85.9 dB(A) K= 3 dB(A) Guaranteed sound power level 105dB(A) Vibration 7.03 m/s² K= 1,5 m/s² 5. ASSEMBLY 5.1 FOLDING HANDLE 1. Fix the lower handlebar into the unit body with screws, washers and locking knobs (Fig. 2A/Fig.2B/Fig.2C). Then, add screws and bolts in the holes which are just above. - Page 13 ORIGINAL INSTRUCTIONS Cable Clamp Fig.2G 5.2 ADJUSTMENT FOR AN APPROPRIATE ANGLE 1. Screw out the locking knobs which fixed the lower handle. (Fig.3A) 2. Move the lower handle up or down, adjust it to the proper height. There are 2 adjusting height to be choose on this type lawn mower;...
-
Page 14: Section 6 Operating Instructions
ORIGINAL INSTRUCTIONS Move the starter handle from the engine to the rope guide. (Fig.5) Fig.5 5.5 DEPTH OF CUT Apply outward pressure to disengage lever from rack. Move lever forward or back to adjust height. (Fig. 6 and see clause 6.4). Fig. - Page 15 ORIGINAL INSTRUCTIONS “off” position (Fig. 7B). 4. Standing behind the unit, grasp the brake control handle and hold it against the Lower handle. (Fig. 7C) 5. Keep hold the brake lever as shown Fig.7C and Grasp the starter handle as shown Fig 7D pull up rapidly. Return it slowly to the rope guide bolt after engine starts.
- Page 16 ORIGINAL INSTRUCTIONS Fig. 8A Fig. 8B 6.3 GRASS CATCHER 6.3.1 Wok without the grass catcher (optional) For scarifier, you can work with grass catcher or without grass catcher. Whenever you detach the grass catcher, the deflector flap dropped down. When scarifier without the grass catcher attached, the cuttings are ejected straight onto the ground.
-
Page 17: Section 7 Replacement Of The Roller
ORIGINAL INSTRUCTIONS Blade UP Blade Down Fig.10A Fig.10B 7. REPLACEMENT OF THE ROLLER WARNING: Be sure to wear work gloves. Caution: use only original scarifier/aerator shafts approved by the manufacturer. The equipment can be assembled with the scarifying roller or the aerator roller. Only replace the roller with an original Trex roller, as this will ensure top performance and safety under all conditions. -
Page 18: Section 8 Functional Description
ORIGINAL INSTRUCTIONS Fig.11C Fig.11D Fig.11E Fig.11F Fig.11G Fig.11H 8. FUNCTIONAL DESCRIPTION The lawn scarifier is pushed by hand over the area of grass to be cut. The cutters are driven by a petrol engine. The depth of cut is set by varying the central height-adjustment mechanism individually. Scarification: The cutter deck rotates and removes the felt layer formed by moss, lichen and weeds and conveys the scarified material to the outside or into the grass catcher. -
Page 19: Section 10 Lubrication Instructions
ORIGINAL INSTRUCTIONS replacement. 10. LUBRICATION INSTRUCTIONS CAUTION: DISCONNECT SPARK PLUG BEFORE SERVICING. 1. WHEELS-Lubricate the ball bearings in each wheel at least once a season with a light oil. 2. ENGINE-Follow engine manual for lubrication instructions. 11.CLEANING CAUTION: Do not hose engine. Water can damage engine or contaminate the fuel system. 1. -
Page 20: Section 12 Storage And Transport
ORIGINAL INSTRUCTIONS Clean the engine regularly with a cloth or brush. Keep the cooling system (blower housing area) clean to permit proper air circulation which is essential to engine performance and life. Be certain to remove all grass, dirt and combustible debris from muffler area. 12. -
Page 21: Section14 Environment
ORIGINAL INSTRUCTIONS position Fuel tank is empty. Fill tank with fuel: refer to ENGINE OWNERS MANUAL. Air cleaner element is dirty. Clean air cleaner element: refer to ENGINE OWNERS MANUAL. Spark plug loose. Tighten spark plug. Spark plug wire loose or Install spark plug wire on spark disconnected from plug. - Page 22 ORIGINAL INSTRUCTIONS 14. Warranty We guarantee this product for 2 full years. The warranty period for this item starts on the day of purchase. You can prove the date of purchase by sending us the original receipt. We insure over the entire warranty period: •...
- Page 23 32, rue Aristide Bergès - ZI 31270 Cugnaux - France Declares that the machinery designated below: Hereby declare under our sales responsibility that the products: Product: Scarifier Model: FST200PRO S/N: 20200415576-20200415671 To which this declaration relates is in conformity which the following directives and standards: TÜV SUD products...
