Introduction
The PCI Express 6.0 capable adapter kits for Teledyne LeCroy's PCI Express 6.0 EDSFF/OCP Interposer module allow you
to use the interposer with servers of different EDSFF size configurations, or convert the EDSFF interposer to an OCP form
factor. This manual provides instructions for adding the cable assembly along with the appropriate adapter. The kit includes
all the necessary brackets and screws necessary to complete the assembly.
For more details when using with PCIe Analyzers or PCIe Gen6 Interposers, refer to the corresponding user manuals.
PCIe Gen6 Adapter Kits
for EDSFF/OCP Interposer
User Manual and Quick Start Guide

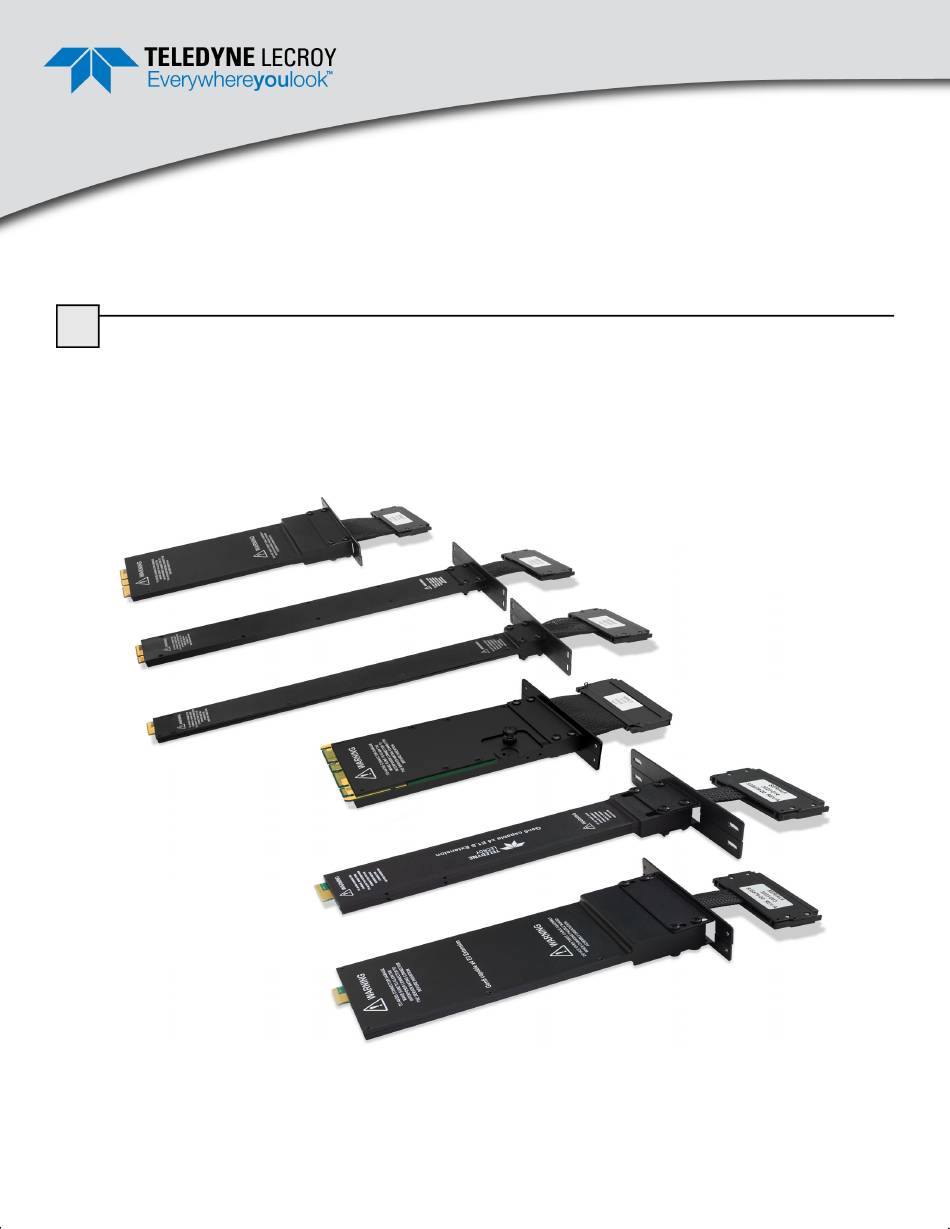

PCIe Gen6 Adapter Kits for EDSFF/OCP Interposer
(Host Cable Assemblies shown)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Teledyne Lecroy PE6404ACA-X
Summary of Contents for Teledyne Lecroy PE6404ACA-X
- Page 1 User Manual and Quick Start Guide Introduction The PCI Express 6.0 capable adapter kits for Teledyne LeCroy’s PCI Express 6.0 EDSFF/OCP Interposer module allow you to use the interposer with servers of different EDSFF size configurations, or convert the EDSFF interposer to an OCP form factor.
- Page 2 NOTE: Inspect the shipping container for any damages. Unpack the container and use the accompanying packing list to verify the contents. Visually inspect each component. In the event of damage, notify the shipper and Teledyne LeCroy. Retain all shipping materials for shipper’s inspection.
- Page 3 Brackets and Adapters Caseless EDSFF Adapter (shown with Caseless Device) Caseless Device PN: 935427-00 E1.L x8 Device E3 Device Bracket Bracket PN: 935779-00 PN: 934092-00 E1.S x4 Device E1.S x4 Caseless Bracket OCP Device Device Bracket Bracket PN: 935778-00 PN: 935426-00 PN: 934380-00 Mounting Bracket...
-
Page 4: Installation
Installation Perform the following steps to connect the host cable assembly and the device bracket to the Interposer: 1. Remove the three screws and cover plate from the top side of the interposer. NOTE: Save the screws to re-install the cover plate (step 4). 2. - Page 5 3. Screw the horizontal bracket into the interposer chassis. NOTE: Do not over-tighten screws during installation. To install the bracket flush with the interposer, adjust the bracket while tightening screws. 4. Reinstall the cover plate, re-using the three screws from step 1.
- Page 6 5. To install the device bracket: a. Locate the device bracket included with the host cable adapter kit and place it against the mounting bracket installed on the interposer. b. Secure with the three provided flat head screws. The diagram below shows the E1.S device bracket. Top Side of Interposer Device Bracket Mounting Bracket (included...
- Page 7 Caseless EDSFF Device and Adapter Installation An optional adapter is provided for the Caseless EDSFF Device. Secure the Caseless Device to the Caseless Adapter before sliding it into the interposer device bracket. 1. Attach the Caseless EDSFF Device to the Caseless EDSFF Adapter using the four provided Phillips-head screws. Caseless EDSFF Device Caseless EDSFF Adapter PN: 935427-00...
- Page 8 2. Attach the E1.S x4 Device Bracket to the interposer’s mounting bracket using the provided screws. 3. Slide the assembled device and adapter in to the interposer’s E1.S x4 Device Bracket.
- Page 9 Sleeve Adapter Installation The sleeve adapter is used to change the front of the E1.S/L cable assembly to standard width so it can be used with the standard device bracket. This helps the cable assembly to fit snugly into the EDSFF slot. 1.
- Page 10 OCP Device Bracket Installation 1. Install the OCP device bracket using the provided three screws to attach it to the mounting bracket of the interposer. 2. If needed, The OCP device bracket has an additional screw that can be used to secure the device. ...
- Page 11 OCP Bracket/Latch Installation There are two ways to secure the adapter part of the interposer to the system under test: A bracket or a latch. Use the method that works for the chosen adapter. Bracket Installation 1. Locate the two screw holes on the side of the adapter and attach the bracket as shown. Use the third screw to secure the interposer to the System Under Test chassis.
- Page 12 Vertical Support Bracket Installation The Vertical Support Bracket is provided for when it is necessary to install the cable assembly vertically instead of horizontally. 1. Remove the screws and support brackets from the interposer. NOTE: Save the screws, washers, and nuts for re-assembly (steps 3 and 4). 2.
- Page 13 4. Replace the screws, washers and nuts. Securely tighten the screws, adjusting the bracket as necessary for an even, tight fit.
-
