Skinact Milo User Manual

Electric massage and facial bed, table

Advertisement

Quick Links

Milo Electric Massage
And Facial Bed, Table
User Manual
www.skinact.com | www.spaandequipment.com
Toll Free: 1.800.418.0830

Advertisement

loading
Need help?

Need help?

Do you have a question about the Milo and is the answer not in the manual?

Questions and answers

Summary of Contents for Skinact Milo

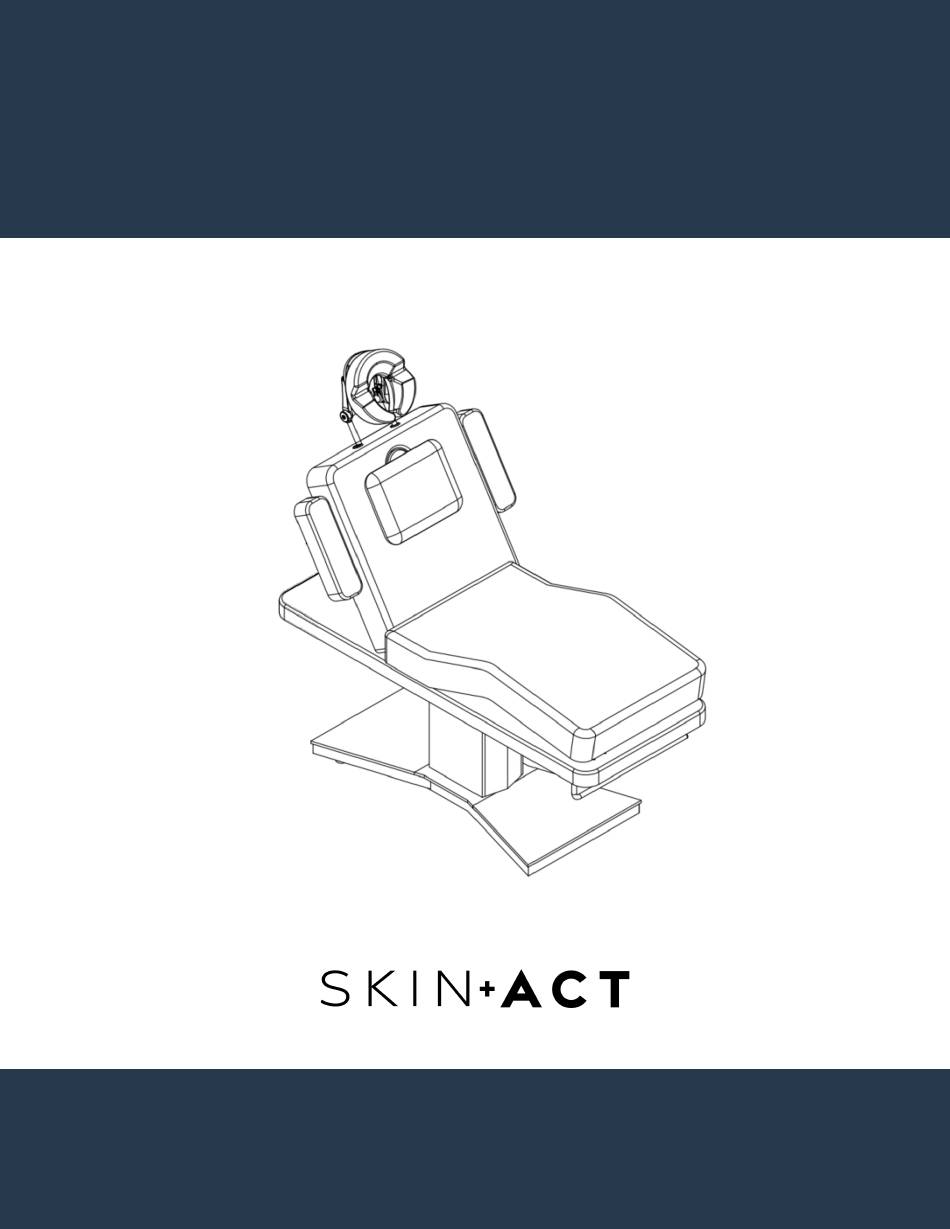

  • Page 1 Milo Electric Massage And Facial Bed, Table User Manual www.skinact.com | www.spaandequipment.com Toll Free: 1.800.418.0830...
  • Page 2 SkinAct. The information in this document is subject to change without notice at any time and should not be construed as a commitment by SkinAct. SkinAct assumes no responsibility for any errors that may be in this document, nor...
  • Page 3 If any plugs, buttons, or cables are damaged, stop using them immediately. The electric push rod is designed for a maximum usage frequency of 6 minutes per hour. Repairs must only be carried out by trained professionals. www.skinact.com...
  • Page 4 Size: 74.8 x 37.8 x 26.6 inches Minimum Height: 26.6 inches Maximum Height: 33.7 inches Net Weight: 222.7 lbs Gross Weight: 299.8 lbs Carrying Capacity: 330.7 lbs Input Voltage: AC 100–130V / 220–240V, 50/60Hz Output Voltage: DC 24V Maximum Power: 160W www.skinact.com...
  • Page 5 Press and hold the “SET” until the blue light next to it lights up to activate the memory function, and then press the “M1” to set the memory state. The setting method of “M2” and “M3” memory state is the same. www.skinact.com...
  • Page 6 Height adjustment: Turn on the power switch, press , and the bed will rise as a whole Press the and the bed will descend as a whole. As shown in the figure Backrest adjustment: Press adjust the tilt angle of the backrest, with a maximum adjustable angle of 58°.
  • Page 7 Use of handrails: Insert and remove the armrest in the direction of the arrow in the picture. As shown in the figure: Adjust the height of the pillow Use of Pillow: Insert the two feet of the pillow into the two holes on the bed, then adjust the angle of the pillow up and down.
  • Page 8: Troubleshooting

    Hand (or foot) remote Motorized sections well. is not working. not moving Replace the hand (or foot) remote. Control box not Contact Spa and Equipment/SkinAct working. Technical Department: 1(800)418-0830 Parts need lubrication Adding lubricating oil. oil. Abnormal sounds or vibrations Contact Spa and Equipment/SkinAct Motor quality issues.
  • Page 9 • Cushion thickness: 4” • Colors available: Dark Brown or Beige: base is Dark Brown Wood • Fully electric top is outfitted with vinyl and Milo proprietary “skin touch” padding * All height measurements are from ground to top of cushion * ** All measurements have a 0.25 to 0.75 inch tolerance **...
  • Page 10 Measurements 27.5" 30" 43.5" 46.8" 24.4"...
