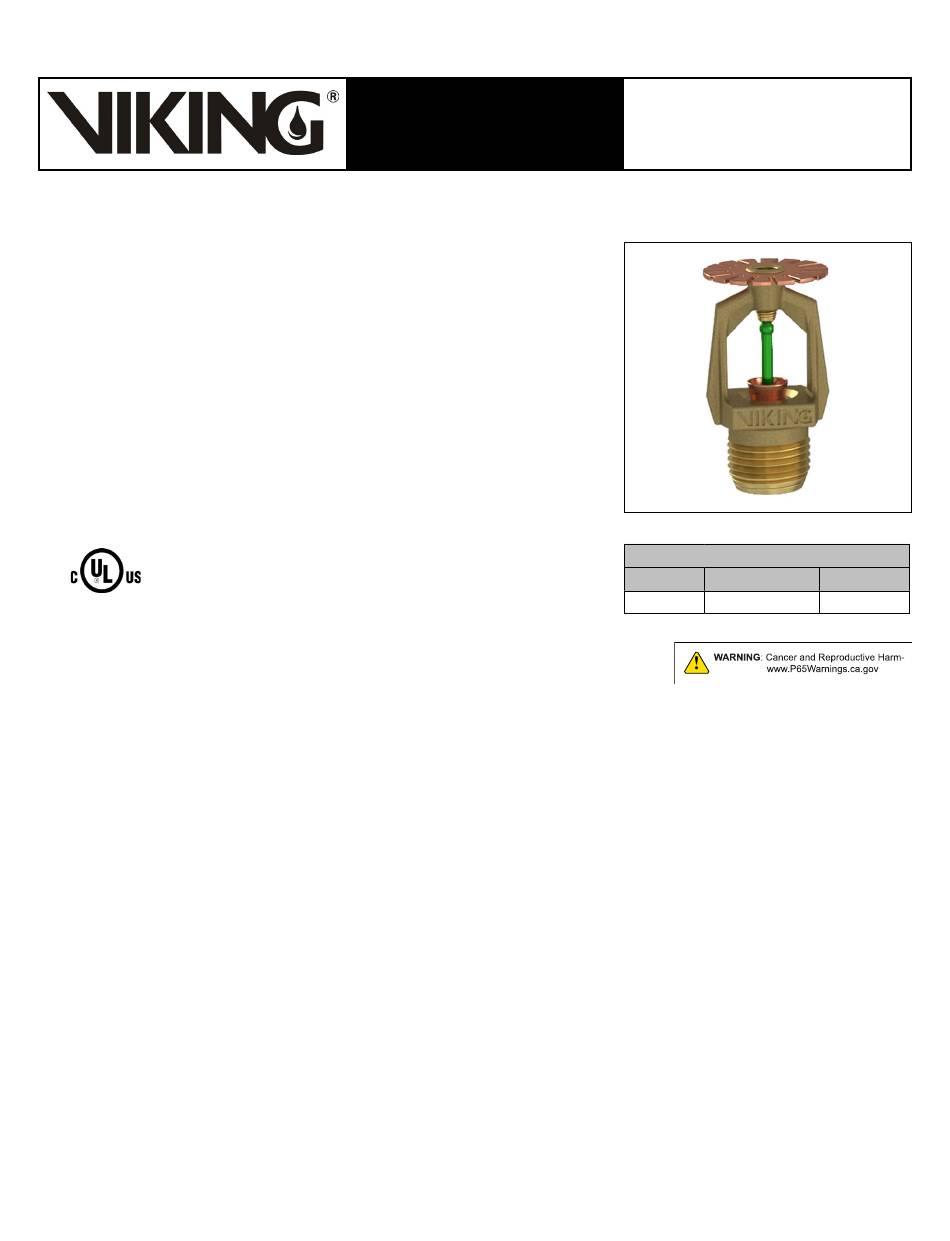

Attic upright specific application sprinkler

Advertisement

Telephone: 269-945-9501 Technical Services: 877-384-5464 Fax: 269-818-1680 Email: techsvcs@vikingcorp.com
Visit the Viking website for the latest edition of this technical data page www.vikinggroupinc.com.
1. DESCRIPTION
The Viking Attic Upright VK696 is a specific application concealed space sprinkler
that provides superior fire protection in combustible and non-combustible sloped
attic spaces when used in conjunction with Viking's model V-BB (Back to Back)
and V-SD (Single Directional) specific application sprinklers. Installed in the upright
position, with the deflector parallel to the roof, the Attic Upright used in combination
with the model V-BB increases the allowable span from 60' to 80' (18,3 m to 24,4 m).
Viking Attic Upright sprinklers can be installed with either steel or CPVC piping, and
allow the use of CPVC to feed the protected space below the attic (CPVC allowed
on wet pipe systems only). They are available in brass or with corrosion-resistant
Electroless Nickel PTFE (ENT) coatings where salt water and other corrosive
elements are a consideration. Viking Attic Upright sprinklers are cULus Listed
with specific application guidelines for use as special sprinklers as defined by the
National Fire Protection Association (NFPA), and are listed for specific pitch range
4:12 to 12:12.
2. LISTINGS AND APPROVALS
cULus Listed: Category VNIV
Refer to the Approval Chart on page 3.
3. TECHNICAL DATA
Specifications:
Minimum Operating Pressure: 7 psi (0.5 bar)
Rated to 175 psi (12 bar) water working pressure
Factory tested hydrostatically to 500 psi (34.5 bar)
Thread size: 1/2" (15 mm) NPT
Nominal K-Factor: 4.2 U.S. (57 metric*)
* Metric K-factor measurement shown is when pressure is measured in Bar. When pressure is measured in kPa, divide the metric K-factor shown by 10.0.
Glass-bulb fluid temperature rated to -65 °F (-55 °C)
Overall Length: 2-1/4" (57 mm)
Covered by the following U.S. Patent No.: 8,083,002 owned by Tyco.
Material Standards:
Frame Casting: Brass UNS-C84400
Deflector: Brass UNS-C26000
Bulb: Glass, nominal 3 mm diameter
Belleville Spring Sealing Assembly: Nickel Alloy, coated on both sides with PTFE Tape
Screw: Brass UNS-C36000
Pip Cap and Insert Assembly: Copper UNS-C11000 and Stainless Steel UNS-S30400
Ordering Information: (Also refer to the current Viking price list.)
To order the Attic Sprinkler, add the appropriate suffix for the sprinkler finish and then the appropriate suffix for the temperature
rating to the sprinkler base part number.
Finish Suffix: Brass = A, ENT = JN
Temperature Suffix: E = 200 °F (93.3 °C)
Available Finishes And Temperature Ratings:
Refer to Table 1.
Accessories: (Also refer to the Viking website.)
Sprinkler Wrench:
Standard Wrench: Part No. 21475M/B
Sprinkler Cabinets:
A. Six-head capacity: Part No. 01724A
B. Twelve-head capacity: Part No. 01725A
Form No. F_042815
Rev 01
TECHNICAL DATA
The Viking Corporation, 210 N Industrial Park Drive, Hastings MI 49058
February 2023
ATTIC UPRIGHT
SPECIFIC APPLICATION
SPRINKLER VK696
VK660 V-HIP Attic Sprinkler
SIN
K-factor
VK696
4.2 (57 metric)
Replaces Form F_042815 Rev. 20.1
(added foam insulation note.)
Page 1 of 7
Pitch
4:12 < 12:12
