Ultra-tow XTP Series Owner's Manual
Fast action trailer jack 2000 lb. capacity
Hide thumbs
Also See for XTP Series:
- Owner's manual (11 pages) ,
- Owner's manual (14 pages) ,
- Owner's manual (14 pages)
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ultra-tow XTP Series
Summary of Contents for Ultra-tow XTP Series

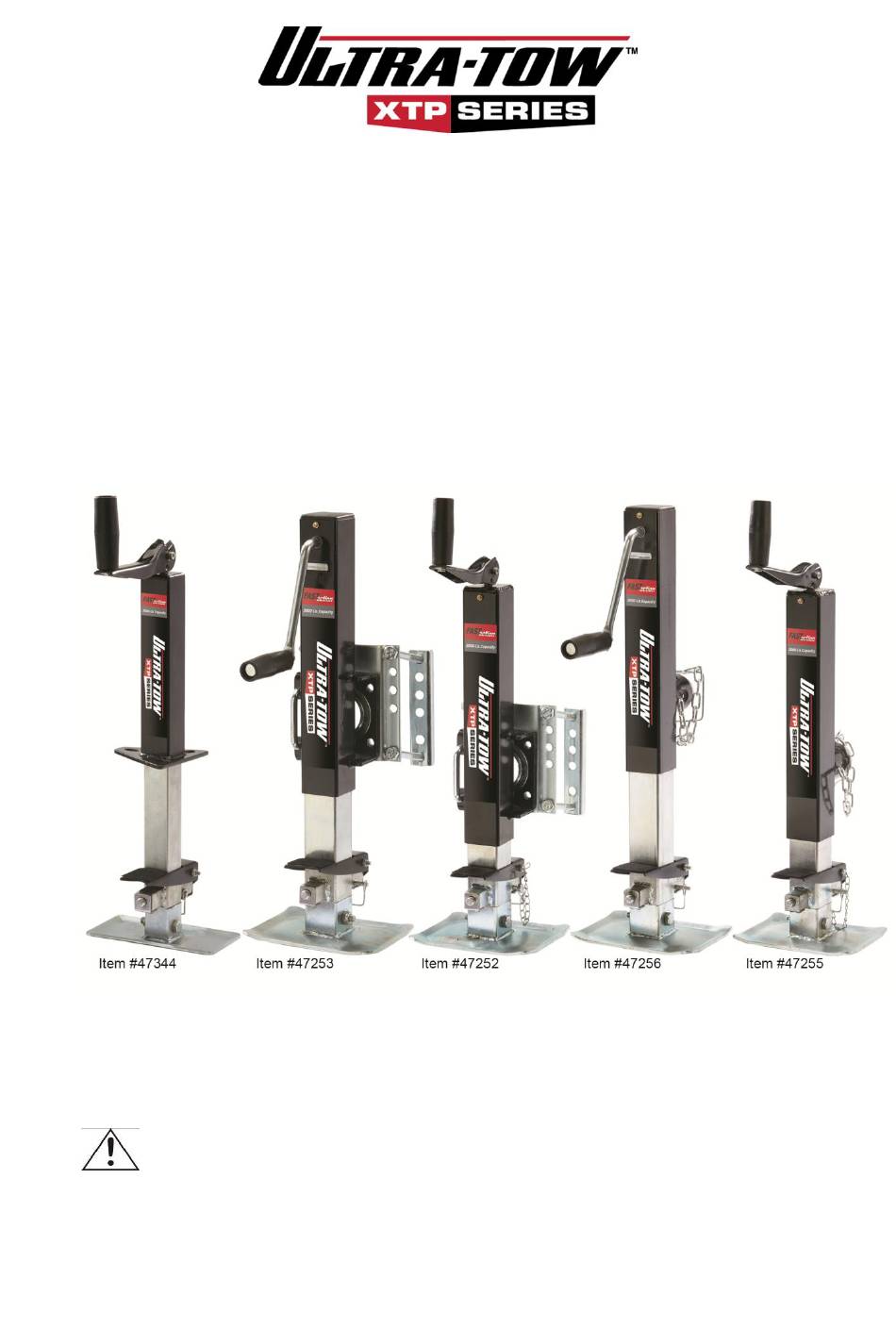

- Page 1 FAST ACTION TRAILER JACK 2000 LB. CAPACITY OWNER’S MANUAL WARNING: WARNING: Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. 12162014...
-
Page 2: Technical Specifications
Thank you very much for choosing an Ultra-Tow Product! For future reference, please complete the owner’s record below: Model: _______________ Purchase Date: _______________ Save the receipt, warranty and these instructions. It is important that you read the entire manual to become familiar with this product before you begin using it. -
Page 3: Work Area
WORK AREA • Keep work area clean, free of clutter and well lit. Cluttered and dark work areas can cause accidents. • Inspect work area for any hazards prior to use of jack. • Keep children and bystanders away while using a trailer jack. Distractions can cause you to lose control, so visitors should remain at a safe distance from the work area. -
Page 4: Additional Safety Warnings
ADDITIONAL SAFETY WARNINGS • Prevent trailer wheels from moving using wheel chocks while raising or lowering the jack. (if used with wheel) • Before towing, fully raise the jack and secure properly in its horizontal position. • Never position any part of body under jack or trailer while jack is supporting load. •... - Page 5 MOUNTING ASSEMBLY Depending on model, jacks can be bolted or welded on. A-FRAME ASSEMBLY (Item# 437344) 1. When mounting trailer jack, it is best to hook up to the tow vehicle to make sure trailer is secure. Chock the trailer wheels and support trailer frame securely using jack stands (sold separately).
- Page 6 TUBE MOUNT ASSEMBLY (Item#s 47255 and 47256): 1. Determine the best location to mount the jack onto the trailer tongue. Make sure that the Jack does not interfere with the vehicle or trailer when turning or passing over speed bumps, boat ramps, etc.
- Page 7 SWIVEL MOUNT ASSEMBLY (Item#s 47252 and 47253): Determine the best location to mount the Jack onto the trailer tongue. Make sure that the Jack does not interfere with the Vehicle or trailer when turning or passing over speed bumps, boat ramps, etc. The Mounting Hardware includes two jack mounting plates, four mounting bolts, flat washers, spring washers, and nuts to attach the...
-
Page 8: Operation
OPERATION WARNING: Never use Trailer Jack if the mounting hardware is not secure on the tongue of trailer. Regularly inspect hardware for proper mounting assembly. DISCONNECTING THE TRAILER FROM THE TOWING VEHICLE CAUTION: Before disconnecting, chock the trailer wheels to prevent the trailer from rolling. Never leave trailer unattended while in the process of connecting or disconnecting trailer. -
Page 9: Maintenance
MAINTENANCE • Maintain your Trailer Jack. Before each use, inspect the general condition of the jack. Check for loose hardware, misalignment or binding of moving parts, cracked or broken parts, damaged electrical wiring, and any other condition that may affect its safe operation. •... - Page 10 DIAGRAM AND PARTS LIST — A-FRAME MOUNT (Item# 47344) Ref # Description Ref # Description Outer Tube Foot Plate Bolt Axle Seal Foot Plate Nut Crank Handle Foot Pedal Release Crank Handle Bolt Over Travel Lock Pin Crank Handle Nut Over Travel Lock Spring Ball Bearing Kit Over Travel Lock Cover...
- Page 11 DIAGRAM AND PARTS LIST — TUBE MOUNT (Item#s 47255 and 47256) Ref # Description Ref # Description End Cap Middle Tube Vertical Gear Foot Pedal Release Gear Washer Over Travel Lock Pin Horizontal Gear Over Travel Lock Spring Screw Axle Bushing Over Travel Lock Cover Horizontal Gear Lock Lock Bolts...
- Page 12 DIAGRAM AND PARTS LIST — SWIVEL MOUNT (Item#s 47252 and 47253) Ref # Description Ref # Description End Cap Travel Lock Pin Vertical Gear Travel Lock Pin Gear Washer Safety Lock Pin Horizontal Gear Ball Bearing Kit Screw Axle Bush Screw Axle Kit Rotating Mount Plate Foot Pedal Release...
- Page 13 Northern Tool and Equipment Company, Inc. ("We'' or '"Us'') warrants to the original purchaser only ("You'' or “Your”) that the Ultra-Tow Fast Action Jack product purchased will be free from material defects in both materials and workmanship, normal wear and tear excepted, for a period of one year from date of purchase.
- Page 14 Governing Law This limited warranty gives You specific legal rights, and You also may have other rights which vary from state to state. Some states do not allow limitations or exclusions on implied warranties or incidental or consequential damages, so the above limitations may not apply to You. This limited warranty is governed by the laws of the State of Minnesota, without regard to rules pertaining to conflicts of law.
