AUTO/MANUAL FOOT PEDAL SEALER
MANUAL NO. 9606

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JFFPS00001 and is the answer not in the manual?

Questions and answers

Summary of Contents for U.S. Solid JFFPS00001

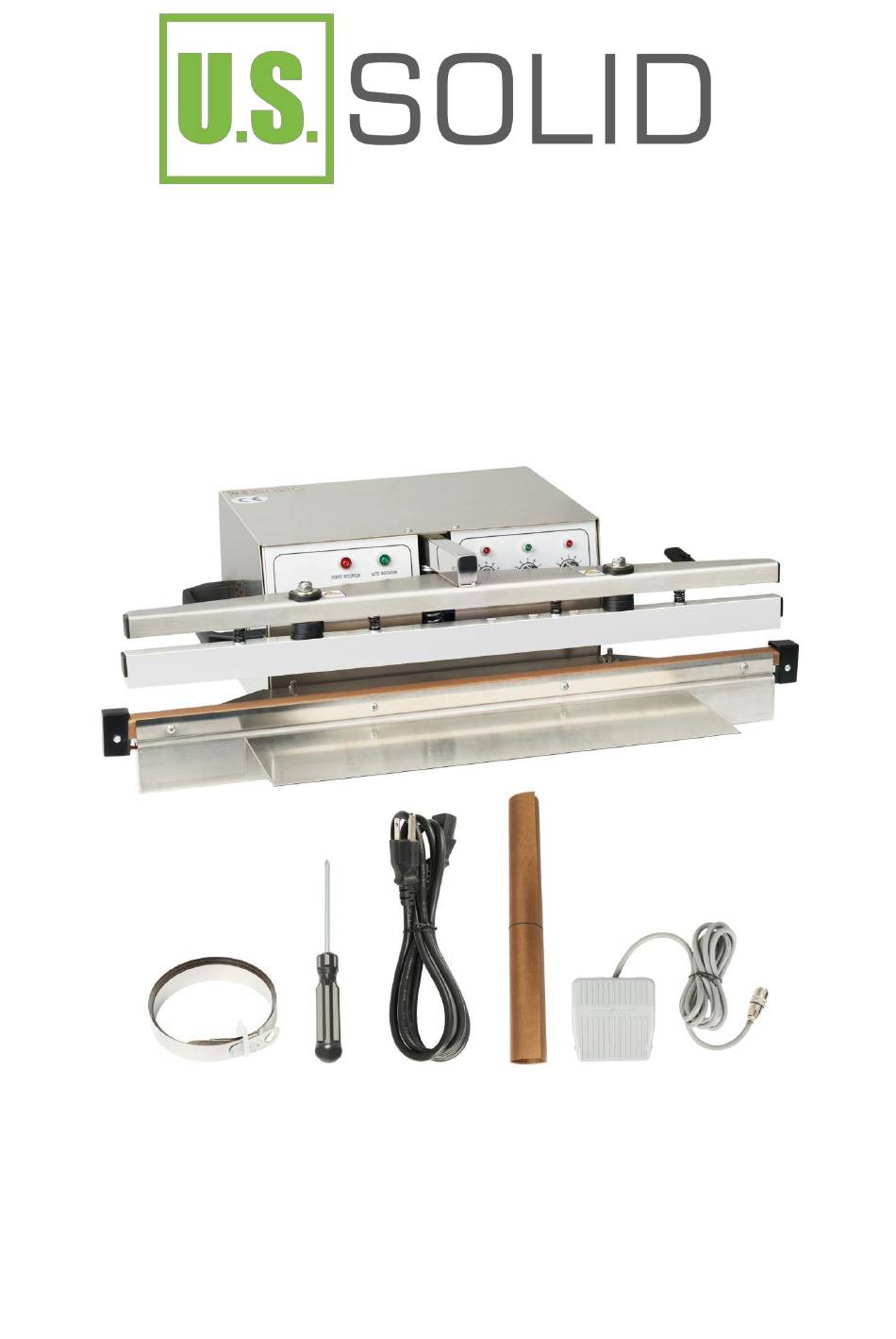

  • Page 1 AUTO/MANUAL FOOT PEDAL SEALER MANUAL NO. 9606...
  • Page 2: Table Of Contents

    CONTENTS INSTRUCTION ................1 OPERATING INSTRUCTION ............2 SPECIFICATIONS .................3 CONSTRUCTION DIAGRAM ............4 PARTS LIST .................. 5 CIRCUIT DIAGRAM ..............6 ADDITIONAL INFORMATION ............7...
  • Page 3: Instruction

    INSTRUCTION 1. Power indicator (red) 2. Main power switch 3. Automatic operation indicator (yellow) 4. Automatic/manual operation selector 5. Automatic sealing interval indicator (red) 6. Automatic sealing interval control knob 7. Cooling and solidification time indicator after sealing (yellow) 8. Control knob for cooling and solidification time after sealing 9.
  • Page 4: Operating Instruction

    OPERATING INSTRUCTION MANUAL MODE: First, turn on the POWER. The POWER INDICATION light will illuminate. Set the COOL TIME and SEAL TIME. The upper press frame of the machine will then activate. Place the bag to be sealed on the lower press frame, press the upper press plate with your hand, or step on the PEDAL to press it down to seal.
  • Page 5: Specifications

    SPECIFICATIONS Model USS-FPS00001 Power 1500w Max. seal Length 25.59 inches Seal Width 0.19 inches Max. Seal thickness 0.015 inches 0.2~3.0(sec) Heat Time 1.0~8.0(sec) Congealed Time 1.0~8.0(sec) Reset Time Weight 55.11 Lbs Dimensions 28.03×14.4×8.26 inches...
  • Page 6: Construction Diagram

    CONSTRUCTION DIAGRAM...
  • Page 7: Parts List

    PARTS LIST 1.BASE PLATE 2.LOWER JAW 3.OPERATING BOARD 4.CLAMP PLATE 5.LOWER SILICONE STRIP 6.COMPRESSION SPRING 7.HEATING ELEMENT 8.UPPER SILICONE STRIP 9.SPRING WASHER 10.UPPER JAW SUPPORT 11.PIN 12.TIMER KNOB 13.TOGGLE SWITCH 14.SIGNAL LIGHT 15.FAN SUPPORT 16.SUPPORT 17.FAN 18.CONTROL-PCB 19.HANDLE STRAP 20.TOP COVER PLATE 21.PCB SUPPORT 22.BACK COVER PLATE 23.PCB-TRAMS FORMER...
  • Page 8: Circuit Diagram

    CIRCUIT DIAGRAM...
  • Page 9: Additional Information

    ADDITIONAL INFORMATION 1. Always keep the sealing platform clean. Particular care should be taken to remove any residue of overheated plastic from the barrier tape. 2. Do not clean the sealing platform with anything wet. 3. If the bottom barrier tape (under the heating element) becomes worn, the heating element may short to earth, and this can damage the element.
  • Page 10 Contact Feel free to visit our website: www.ussolid.com You can email us at service@ussolid.com...
