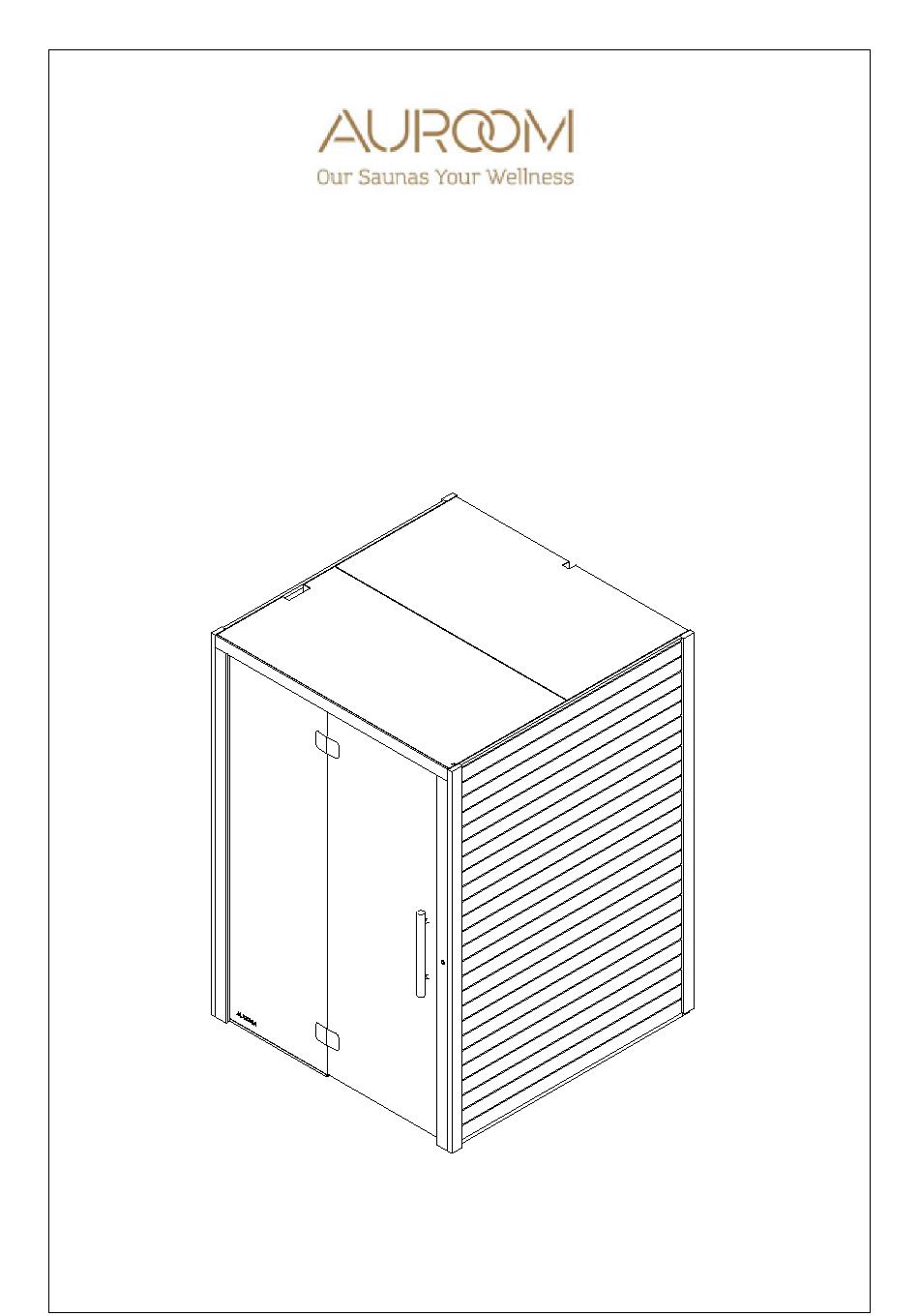

- Page 1 Prefabricated sauna cabin Dry finnish sauna cabin INSTALLATION MANUAL MODEL Cala Glass L 150x150 auroomwellness.com...
- Page 2 Assembly instructions Preparations · Sauna package must be stored in a heated and dry room. · Prior to installation ithe package must be opened and stored for 48h to adjust to relative humidity of the room (22 C, 40-60% RH). ·...
-
Page 3: Base Frame
Baseframe Check substructure level. Sauna must be installed on a level surface. Connect the base frame elements Fix the elements with screws Check baseframe diagonals for equality and right corners Apply silicone under basefame and fix in place NOTE! If the sauna is to be moved after installation, silicone can be installed afterwards. Figure 1a. - Page 4 Wall elements Figure 2b. Corner fixing Start assembly by placing previously assembled elements A1 & A2 on stable baseframe. Fix A1 & A2 elements with corner post CP-1 as indicated on Figure 2a, 2b. Figure 2a. Figure 2b. Corner fixing CP-3...
- Page 5 2.1 Wall elements Figure 2.1b. Corner fixing Place previously assembled elements B1 & B2 on stable baseframe. Fix B1 & B2 elements with corner post CP-1 as indicated on Figure 2.1a, 2.1b. Figure 2.1a. Figure 2.1b. Corner fixing CP-3...
- Page 6 2.2 Wall elements Figure 2.2b. Corner fixing Place previously assembled elements C1 & C2 on stable baseframe. Fix C1 & C2 elements with corner post CP-1 as indicated on Figure 2.2a, 2.2b. Figure 2.2a. Figure 2.2b. Corner fixing...
- Page 7 Ceiling elements Place the first ceiling element on top of prefiously installed and fixed wall elements (Figure 3a). Check walls for vertical level. Ceiling element must sit flush with walls external layer and with no excessive gaps between internal panels. Fix with screws. Place the second ceiling element on top of walls with approx.
- Page 8 Bench support placement Place bench supports in sauna, check for level. Fix bench supports with screws. Figure 4a. Figure 4b.
- Page 9 Bench frames Place upper bench frame and fix with screws. Place lower bench frame and fix with screws. NOTE! First fasten the screws on sidewalls, then backwall. Figure 5a. Figure 5b.
- Page 10 Backrest, bench skirt Lift backrest in place and fix with screws, cover screw holes with caps. Lift bench skirt in place and fix with screws (Figure 7b). Figure 7a. Figure 7b. Bench skirt Back rest Figure 7b. Bench skirt...
- Page 11 Bench grids Place bench grids on bench frames. Figure 8a. Bench grid Bench grid...
- Page 12 Glass wall Apply stripes of silicone on respective lines of glass walls location. Lehngth of stripe equals B (Figure 12.2a). For silicone stripes distance from the wall check Figure 12.1b. Figure 9a. Figure 9.b Section view Glass frame Aluminium U-profile Figure 9.b Section view...
- Page 13 9.2 Glass wall Lift the glass wall in place and fix with screws. Check the distance (A) between installed walls. They must be equal (A=A) for the door to be installed. Place the door upper wooden frame piece and fix with screws from top. !NOTE! Make sure NOT to leave any gaps between glasswall elements and interior cladding! Figure 9.2a.
- Page 14 Corner mouldings Figure 10.c Multiclip view Attach sensor switch to front moulding. Run switch cable through CP-2 and up the side above the ceiling. Figure10.b. Attach corner mouldings using multiclips Figure 10.c. Figure 10a. Figure 10b. Bench skirt BF-1 FF-1 BF-2 FF-2...
- Page 15 Door Fit the hinges on door according to Figure 11c. Fit the door to glass wall according to Figure 11c. Fit the handle to the door according to Figure 11b. NOTE! Door must not be supported directly to a hard (tiled, concrete or other) floor due to risk of shattering.
- Page 16 Heater guard Fix heater to the wall. Fix heater guard to the wall with multiclips. Make electrical connections on top of the ceiling. NOTE! Electrical connections must be carried out by a locally certified proffessional. Heater guard...
- Page 17 Finishing touches Install mouldings with nails.
- Page 18 Check the functionality of all moving parts. If needed make adjustments on adjustable components. Before using the sauna read AUROOM terms and conditions and user manual. NOTE! Upon the first use sauna must be gradually and steadily taken up to normal operating temperature under constant supervision and afterwards thoroughly ventilated due to evaporation of various substances that might be present from production of the sauna and/or its components.
- Page 19 SAUNA USER MANUAL Before installation • Read this user manual and sauna installation guide. • Make sure there is adequate ventilation in the room where the sauna is to be installed (including as directed by the manufacturer of the sauna heater). •...
- Page 20 The following is forbidden in the sauna: • Drying textiles such as carpets and clothing etc as this may pose a fire hazard. Excessive moisture may also damage the surface of the wood. • Heating the sauna to a temperature beyond the specifications of the sauna and heater manufacturer. Excessive heat may cause the wood to warp or pose a fire hazard.
- Page 21 WARRANTY TERMS AND CONDITIONS FOR MODULAR SAUNAS This document provides the warranty terms and conditions for the prefabricated saunas to be used in indoor conditions (hereinafter the Product) manufactured by the company Thermory AS (hereinafter the Manufacturer). The Manufacturer shall provide a two-year warranty with respect to the initial buyer of the Product against any potential construction, manufacturing and material defects as well as a Manufacturer’s warranty for assembled Products.
