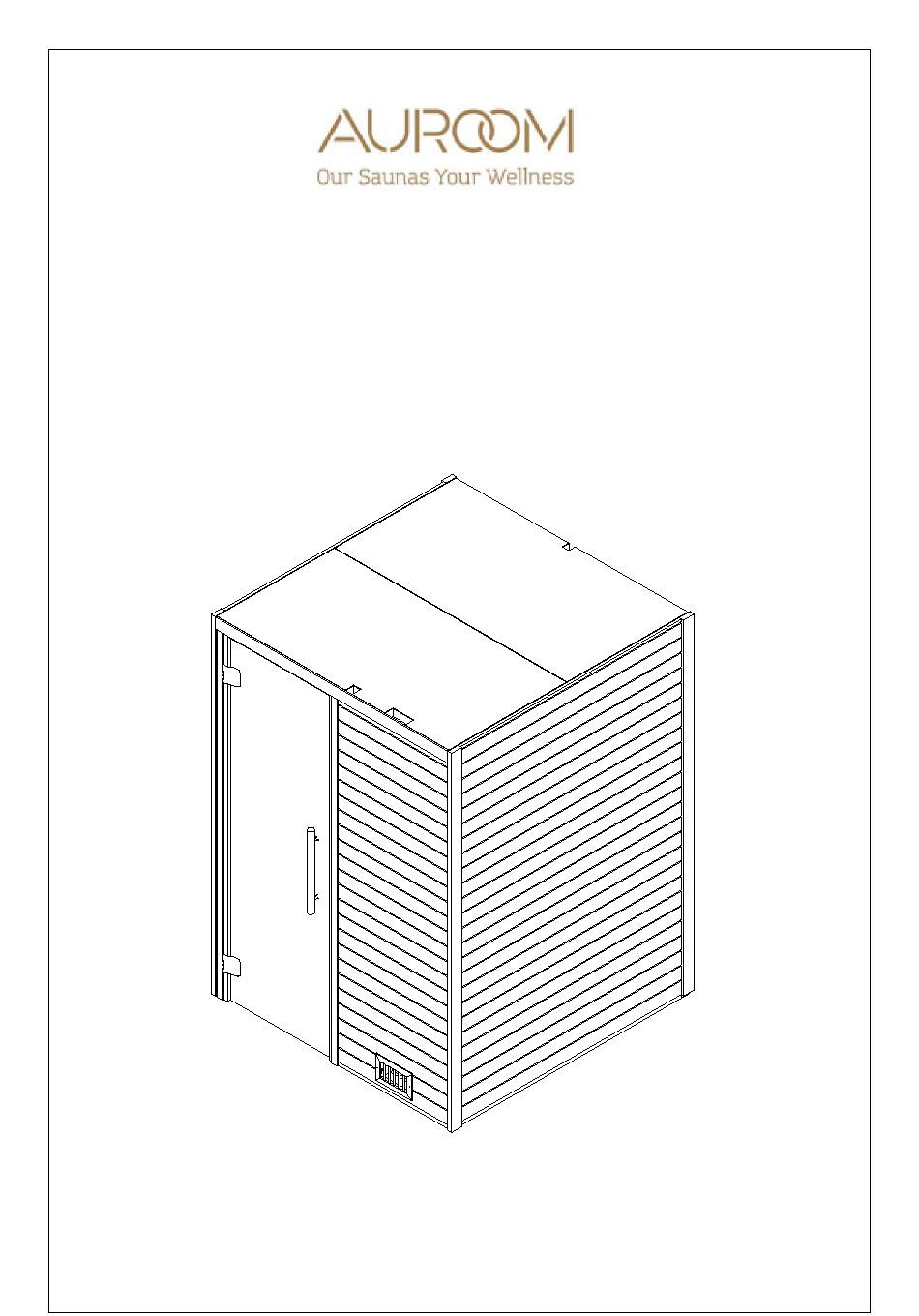

- Page 1 Prefabricated sauna cabin Dry finnish sauna cabin INSTALLATION MANUAL MODEL Cala 150x150 auroomwellness.com...
- Page 2 Assembly instructions Preparations · Sauna package must be stored in a heated and dry room. · Prior to installation ithe package must be opened and stored for 48h to adjust to relative humidity of the room (22 C, 40-60% RH). ·...
-
Page 3: Base Frame
Baseframe Check substructure level. Sauna must be installed on a level surface. Connect the base frame elements Fix the elements with screws Check baseframe diagonals for equality and right corners Apply silicone under basefame and fix in place NOTE! If the sauna is to be moved after installation, silicone can be installed afterwards. Figure 1a. - Page 4 Figure 2b. Wall elements Corner fixing Start assembly by placing previously assembled elements A1 & A2 on stable baseframe. Fix A1 & A2 elements with corner post CP-1 as indicated on Figure 2a, 2b. Figure 2a. Figure 2b. Corner fixing CP-1...
- Page 5 Figure 2.1b. 2.1 Wall elements Corner fixing Place previously assembled elements B1 & B2 on stable baseframe. Fix B1 & B2 elements with corner post CP-1 as indicated on Figure 2.1a, 2.1b. Figure 2.1a. Figure 2.1b. Corner fixing CP-1...
- Page 6 Figure 2.2b. 2.2 Wall elements Corner fixing Place previously assembled elements C1 & C2 on stable baseframe. Fix C1 & C2 elements with corner post CP-1 as indicated on Figure 2.2a, 2.2b. Figure 2.2a. Figure 2.2b. Corner fixing CP-1...
- Page 7 2.3 Wall elements Place previously assembled element D1 on stable baseframe. Fix D1 element with corner post CP-1 as indicated on Figure 2.3a. Figure 2.3a.
- Page 8 Ceiling elements Place the first ceiling element on top of prefiously installed and fixed wall elements (Figure 3a). Check walls for vertical level. Ceiling element must sit flush with walls external layer and with no excessive gaps between internal panels. Fix with screws. Place the second ceiling element on top of walls with approx.
- Page 9 Bench support placement Place bench supports in sauna, check for level. Fix bench supports with screws. Figure 4a. Figure 4b.
- Page 10 Bench frames Place upper bench frame and fix with screws. Place lower bench frame and fix with screws. NOTE! First fasten the screws on sidewalls, then backwall. Figure 5a. Figure 5b.
- Page 11 Light Pull the light cable from ceiling to the light under the bench. Fixt the light and lightshade under the bench with screws. Figure 6a. Figure 6b.
- Page 12 Backrest, bench skirt Lift backrest in place and fix with screws, cover screw holes with caps. Lift bench skirt in place and fix with screws (Figure 7b). Figure 7a. Figure 7b. Bench skirt Back rest Figure 6b. Bench skirt...
- Page 13 Bench grids Place bench grids on bench frames. Figure 8a. Bench grid Bench grid...
- Page 14 Corner mouldings Attach sensor switch to wall. Run switch cable up the wall above the ceiling.. Figure 9a. Switch...
- Page 15 10. Corner mouldings Attach corner mouldings with multiclips. Figure 10a. BF-1 FF-1 BF-2 FF-2...
- Page 16 Door Insert door frame. Inside surfaces must sit flush. Fix door frame with screws, seal screwholes with caps. Install the handle. NOTE! Door glass must not be supported directly to a hard (tiled, concrete or other) floor due to risk of shattering.
- Page 17 12. Heater guard Fix heater to the wall. Fix heater guard to the wall with multiclips. Make electrical connections on top of the ceiling. NOTE! Electrical connections must be carried out by a locally certified proffessional. Figure 8a. Heater guard...
-
Page 18: Finishing Touches
Finishing touches Install mouldings with nails. Fit the stove on marked position. - Page 19 Check the functionality of all moving parts. If needed make adjustments on adjustable components. Before using the sauna read AUROOM terms and conditions and user manual. NOTE! Upon the first use sauna must be gradually and steadily taken up to normal operating temperature under constant supervision and afterwards thoroughly ventilated due to evaporation of various substances that might be present from production of the sauna and/or its components.
