AUROOM Cala Glass L Installation Manual

Prefabricated sauna cabin
Hide thumbs

Advertisement

Table of Contents

Prefabricated sauna cabin
Dry finnish sauna cabin
INSTALLATION MANUAL
MODEL Cala Glass L 150x180 cm (60x71 in)
auroomwellness.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cala Glass L and is the answer not in the manual?

Questions and answers

Related Manuals for AUROOM Cala Glass L

Summary of Contents for AUROOM Cala Glass L

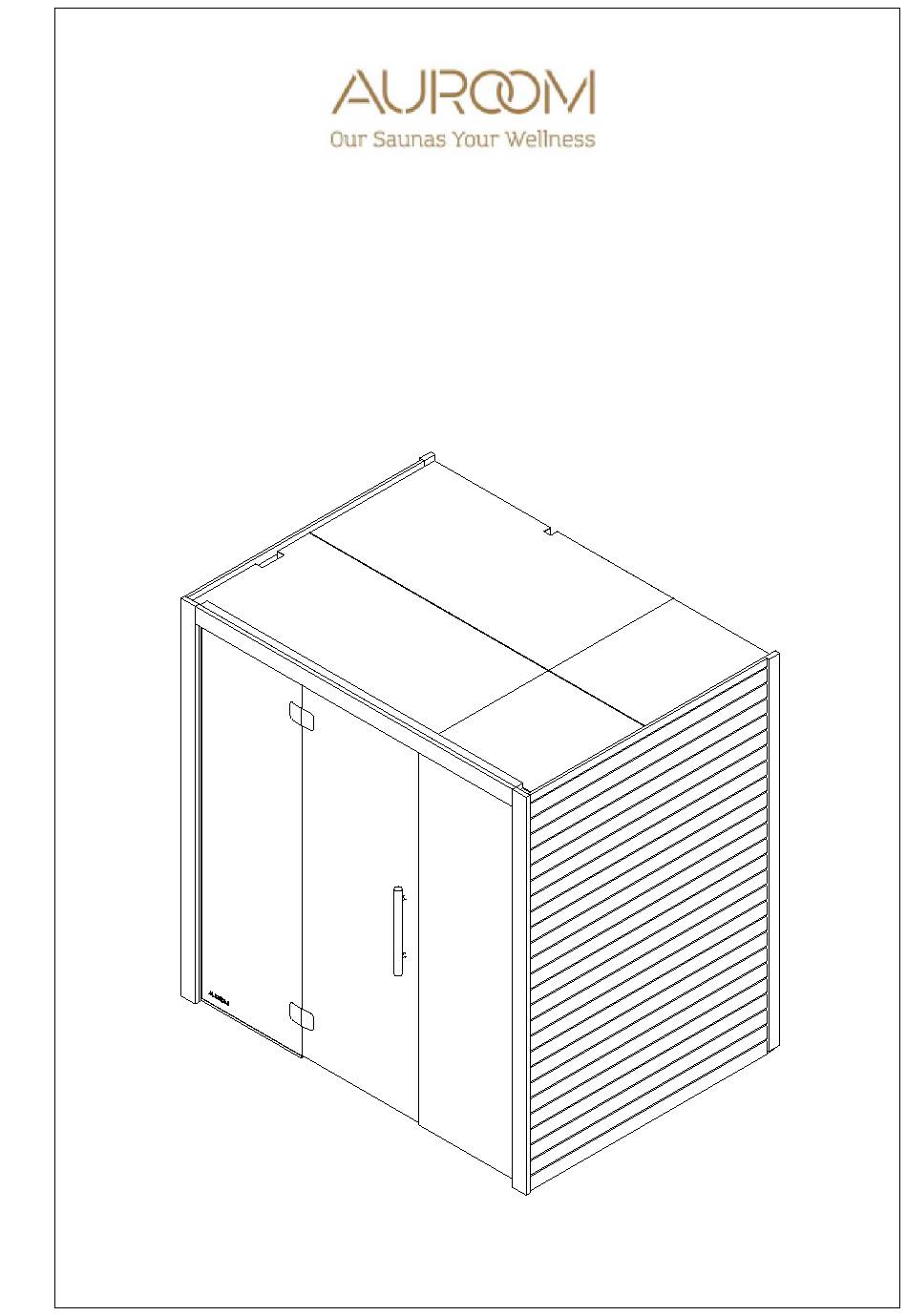

  • Page 1 Prefabricated sauna cabin Dry finnish sauna cabin INSTALLATION MANUAL MODEL Cala Glass L 150x180 cm (60x71 in) auroomwellness.com...

  • Page 2: Package Checklist

    29. 28x90 SHP extra panels - (2 pcs.) 30. Sauna manual 31. Screw set 32. LED strip + cable 33. Transformer 34. LED receiver 31. Wireless lighting switch 32. Auroom accessories: bucket and ladle, thermo-hygrometer, sand timer, sauna hat, sauna pillow, aroma set auroomwellness.com...
  • Page 3 Assembly instructions Preparations · Sauna package must be stored in a heated and dry room. · Prior to installation ithe package must be opened and stored for 48h to adjust to relative humidity of the room (22°C (72°F), 40-60% RH). ·...

  • Page 4: Base Frame

    Baseframe Check substructure level. Sauna must be installed on a level surface. Connect the base frame elements Fix the elements with screws Check baseframe diagonals for equality and right corners Apply silicone under basefame and fix in place NOTE! If the sauna is to be moved after installation, silicone can be installed afterwards. Figure 1a.
  • Page 5 Figure 2b. Wall elements Corner fixing Start assembly by placing previously assembled elements A1 & A2 on stable baseframe. Fix A1 & A2 elements with corner post CP-3 as indicated on Figure 2a, 2b. Figure 2a. Figure 2b. Corner fixing CP-3...
  • Page 6 Figure 2.1b. 2.1 Wall elements Corner fixing Place previously assembled elements B1 & B2 on stable baseframe. Fix B1 & B2 elements with corner post CP-3 as indicated on Figure 2.1a, 2.1b. Figure 2.1a. Figure 2.1b. Corner fixing CP-3...
  • Page 7 Figure 2.2b. 2.2 Wall elements Corner fixing Place previously assembled elements C1 & C2 on stable baseframe. Fix C1 & C2 elements with corner post CP-3 as indicated on Figure 2.2a, 2.2b. Figure 2.2a. Figure 2.2b. Corner fixing...
  • Page 8 Ceiling elements Place the first ceiling element on top of prefiously installed and fixed wall elements (Figure 3a). Check walls for vertical level. Ceiling element must sit flush with walls external layer and with no excessive gaps between internal panels. Fix with screws. Place the second ceiling element on top of walls with approx.
  • Page 9 Bench support placement Place bench supports in sauna, check for level. Fix bench supports with screws. Figure 4a. Figure 4b. 600mm [23,6In.] 32mm [1,3In.]...
  • Page 10 Floor grids Place grids on the floor as indicated in the drawing. Figure 5a. 1622mm [63,9In.]...
  • Page 11 Bench frames Place upper bench frame and fix with screws. Place lower bench frame and fix with screws. NOTE! First fasten the screws on sidewalls, then backwall. Figure 6a. Figure 6b.
  • Page 12 Backrest, Light Fix holders on the wall Place backrest on top of holders Fix backrest to holders from top Fix the led strip to the metal clips. See the instructions for connecting the LED lighting at the end of the manual. Figure 7a.
  • Page 13 Electrical Run cables through pre drilled holes in the walls to the ceiling NOTE! ALL ELECTRICAL CONNECTIONS MUST BE MADE BY CERTIFIED ELECTRICIAN! See the instructions for connecting the LED lighting at the end of the manual. LED strip for the back grid + cable Junction box 2 Recieve 24 V out...
  • Page 14 Bench skirt Lift bench skirt in place and fix with screws (Figure 8b). Figure 8a. Figure 8b. Bench skirt Figure 8b. Bench skirt...
  • Page 15 Bench grids Place bench grids on bench frames. Figure 9a. Bench grid Bench grid...
  • Page 16 10. Glass wall Apply stripes of silicone on respective lines of glass walls location. Lehngth of stripe equals B (Figure 10a). For silicone stripes distance from the wall check Figure 10b. Figure 10a. Figure 10b. Section view Glass frame 22mm [0,8In.] 44mm [1,7In.] Aluminium U-profile...
  • Page 17 10.2 Glass wall Lift the glass walls in place and fix with screws. Check the distance (A) between installed walls. They must be equal (A=A) for the door to be installed. Place the door upper wooden frame piece and fix with screws from top. !NOTE! Make sure NOT to leave any gaps between glasswall elements and interior cladding! Figure 10.2a.
  • Page 18 Figure 11c Corner mouldings Multiclip view Attach corner mouldings using multiclips Figure 11c. Fix horizontal frame with screws from top Figure 11a. BF-1 FF-3 BF-2 FF-1 FF-2...
  • Page 19 Door Fit the hinges on door according to Figure 12c. Fit the door to glass wall according to Figure 12c. Fit the handle to the door according to Figure 12b. NOTE! Door must not be supported directly to a hard (tiled, concrete or other) floor due to risk of shattering.
  • Page 20 Heater guard Fix heater to the wall. Fix heater guard to the wall with screws. Make electrical connections on top of the ceiling. NOTE! Electrical connections must be carried out by a locally certified proffessional. Figure 13a. Heater guard...

  • Page 21: Safety Distances

    Safety distances NB! Before installing the heater, ensure that the distances meet the minimum allowable requirements. If the ceiling height does not meet the minimum required, heat protection must be installed. TOP VIEW 360mm [14,2In.] SECTION...
  • Page 22 Check the functionality of all moving parts. If needed make adjustments on adjustable components. Before using the sauna read AUROOM terms and conditions and user manual. NOTE! Upon the first use sauna must be gradually and steadily taken up to normal operating temperature under constant supervision and afterwards thoroughly ventilated due to evaporation of various substances that might be present from production of the sauna and/or its components.
  • Page 23 Instructions for use and maintenance of pre-built and pre-assembled indoor and outdoor saunas 1. General installation requirements 1.1. Your sauna should be installed by a professional installer. 1.2. The installer of the sauna must have familiarised themselves thoroughly with the manufacturer's warranty terms and the installation instructions of the purchased sauna.
  • Page 24 Instructions for use and maintenance of pre-built and pre-assembled indoor and outdoor saunas 5. Finishing/treating the wooden parts of the sauna with a protective agent 5.1.Before using the sauna, all wooden surfaces must be treated with a suitable protective agent. The manufacturer recommends using sauna wax or sauna oil (paraffin oil).
  • Page 25 Instructions for use and maintenance of pre-built and pre-assembled indoor and outdoor saunas 8.2.Once a year or as needed: · Wash the horizontal (and, if necessary, vertical) surfaces of your sauna with a special sauna detergent. Use a soft brush or damp cloth and observe the instructions of the detergent. ·...
  • Page 26 Effective from 1.04.2022 definitions 1.1 "Manufacturer" is Auroom OÜ (registration code 14867010). "Product" means a sauna or sauna product (including a sauna bath, sauna door or sauna accessory) manufactured by the Manufacturer for indoor or outdoor use, whether prefabricated or assembled.
  • Page 27 Warranty terms for saunas and sauna products Effective from 1.04.2022 2.5 The Warranty does not apply if: (a)the Customer has not notified the Seller or the Manufacturer within 2 months of becoming aware of the Defect; (b)the Seller has failed to notify the Manufacturer within 2 weeks of the time at which it became aware or should have become aware of the Defect;...

  • Page 28: Handling And Storage

    GLASS HANDLING, STORAGE AND THE ABC'S OF CLEANING HANDLING AND STORAGE 1. Taking precautions is generally always cheaper than correcting mistakes later. 2. It is recommended to remove stickers and spacers from the glasses as soon as possible. 3. It is recommended to use suction cups to lift large glasses. 4.
  • Page 29 DANGEROUS EXTERNAL FACTORS FOR GLASS First, any glass must be protected on the construction site, where Construction chemical and mechanical factors can permanently damage the glass surface. In the case of glasses in the vicinity, constant air exchange is maintained, the glasses can be covered with a polyethylene film.
  • Page 30 breakage occurs when the temperature difference on the surface of untempered glass is approx. 40-50 °C (104-122 °F). To prevent thermal breakage, it is recommended to temper the glass, because tempered glass can withstand temperature differences of approx. 150-200 °C (302-392 °F) . Organic mastics They can secrete emollients, oils and solvents, which stick very strongly with a glass surface.

  • Page 31: Glass Cleaning

    GLASS CLEANING 1. Glass should not be cleaned in direct sunlight. 2. The glass cleaning intervals directly depend on the environment surrounding the glass and the degree of soiling of the glass. 3. Glass cleaning includes washing, rinsing and drying. 3.1 Glass cleaning starts with removing abrasive particles such as dust with clean water.
  • Page 32 Led strips installation Always use certified electritian! Install the lighting before attaching the benches and backrest. Pull the led strip cables through the pipes to the ceiling. Attach the led strips to the clamps. info@auroomwellness.com auroomwellness.com...

  • Page 33: List Of Tools

    List of tools: Pull cable Insulating tape Insert the pull cable to the pipe. Catch the end of the cable through the Led hole. AUROOM OÜ info@auroomwellness.com Vana-Kastre, 62313 Estonia auroomwellness.com...
  • Page 34 LED cable. NB! not around the LED strip. 5. Do not remove the tapes. That way it 6. When installing on the back rest, do not won't get in the way during installation. grab LED strip. AUROOM OÜ info@auroomwellness.com Vana-Kastre, 62313 Estonia auroomwellness.com...
  • Page 35 2. Transportation strips and loading on to the trailer 7. Do not press the beginning of the 8. Correctly installed LED strip. LED strip into the clamp. from the trailer and back of the trailer. Lift sauna up a bit. AUROOM OÜ info@auroomwellness.com Vana-Kastre, 62313 Estonia auroomwellness.com...
  • Page 36 QURWST WiFi Dimming Controller Instructions 80*60mm Specifications Wireless receiving controller installation Smart Device APP Download: Device pairing*: 1. Ensure that the power is turned off before installation. The free Kinetic Switch App is required to operate your The initial setup must be performed using your Wi-Fi LED Strip WiFi Dimming Wireless Receiving Controller Technical Specifications: 2.
  • Page 37 Available Models Every Quinetic product has passed a strict quality inspection Read instructions carefully before installation before it leaves the factory. Quinetic provides 3 years warranty if installed & used in accordance with these instructions. Within the 3 years warranty period, Quinetic will be responsible for the repair, free replacement of parts or entire product.
