Summary of Contents for NextBase piqo

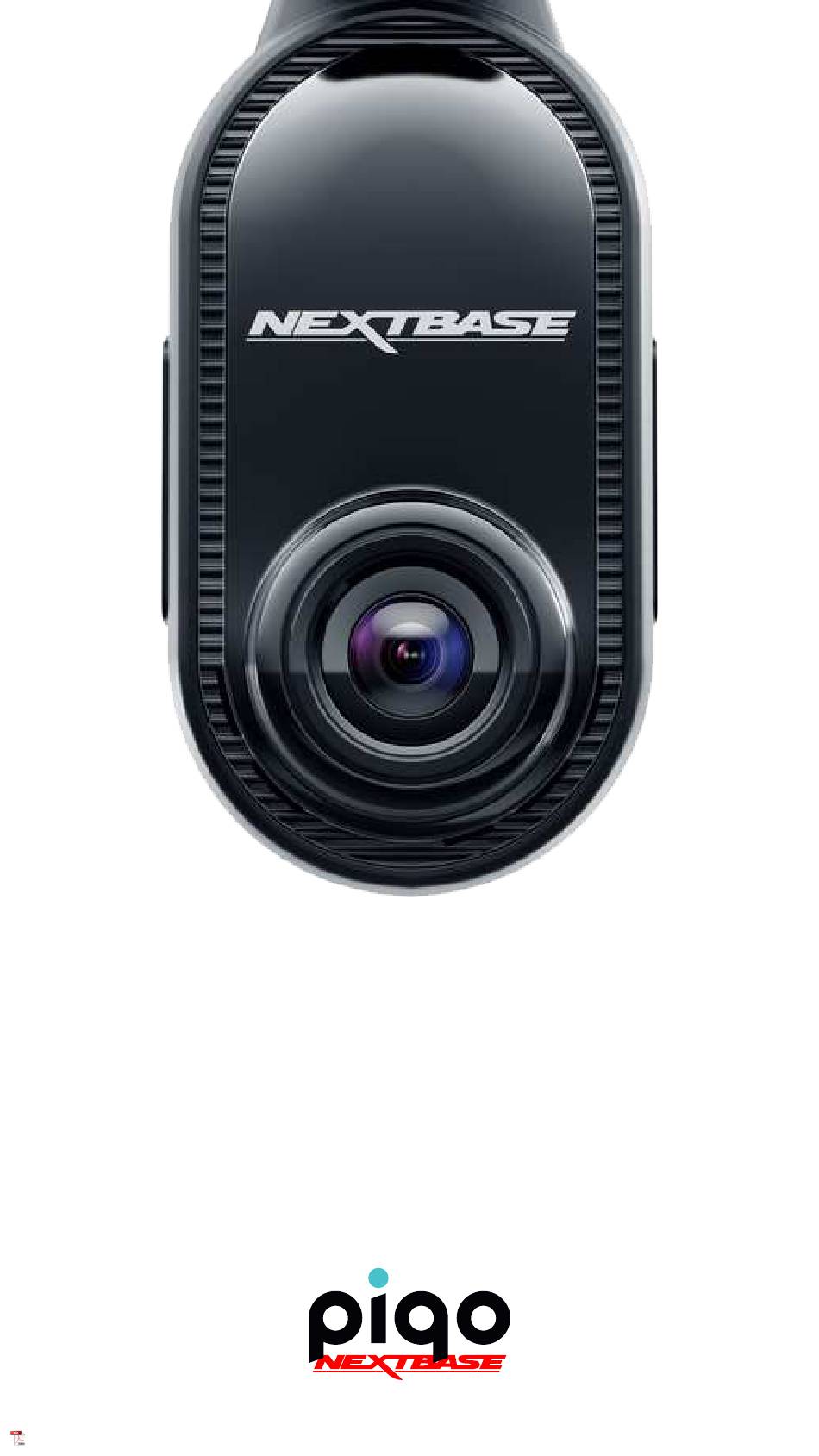

- Page 1 User Manual...

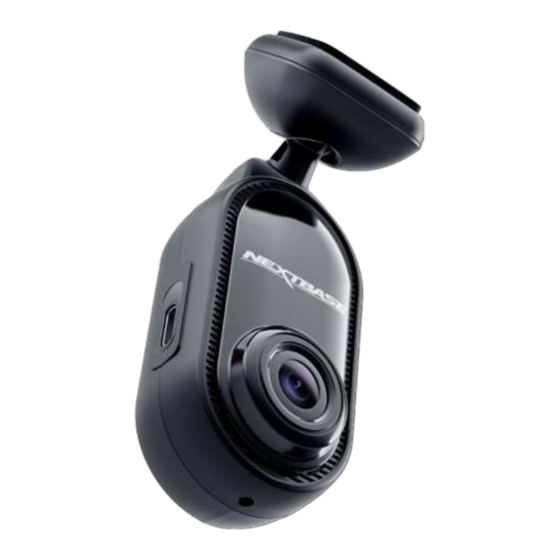

- Page 2 We recommend taking some time to read through this manual to ensure correct usage. Meet Nextbase Piqo. It’s a small & mighty Dash Cam for your vehicle. Compact, high-definition and always on guard. On the move, or parked, Piqo protects. It’s the perfect companion for the roads with 1080p or 1440p recording, fine-tuned...
-
Page 3: Table Of Contents
Contents Overview 04 - 05 How a Dash Cam works The Piqo range 07 - 08 Dash Cam parts Box Contents 10 - 15 Installation Features 18 - 20 Settings Emergency SOS Witness Mode Lite Guardian mode Lite LEDs 25 - 27... -
Page 4: Overview
Overview How a Dash Cam works Camera Your Piqo has a front facing camera to keep an eye on the road ahead. Power Source When connected to your vehicle using the 12V car Adaptor, Pro Install Cable* or Piqo Quick Connect Cable*, your Piqo automatically turns on and starts recording when the engine starts. - Page 5 How a Dash Cam works Loop Recording As the memory card fills up with recorded video, your Piqo uses a feature called "loop recording" to overwrite the oldest footage with new recordings. This ensures that the camera can keep recording even when the memory card is full.
-
Page 6: The Piqo Range
Overview The Piqo range Piqo 1K Max Resolution 1080p Field of View 140° Audio Recording Wi-Fi Bluetooth SD Card Up to 256GB (up to 9 hours) Voice Command App Requirements iOS 15 & Android 8 (Android & iOS) Piqo 2K... -
Page 7: Dash Cam Parts
Ensure the area in front of the lens is clean and free of scratches. Ensure not to damage the lens as this may affect recording quality. Your Piqo should not obstruct the view of the driver. - Page 8 SD Card slot Speaker Insert an SD card Sounds for actions into the SD card such as power on, slot to allow Piqo and start/stop to record video. recording. Device sounds can be turned off by accessing the Dash Cam settings in the app.
-
Page 9: Box Contents
The power cable Piqo or keep it as a should not obstruct the backup. view of the driver. Dual USB-C Car Adaptor Piqo Camera &... -
Page 10: Installation
The contents of the box Your car keys Your mobile device We recommend installing the Nextbase App prior to installing your Dash Cam. Scan the QR Code below or search for ‘Nextbase App’ in your device’s app store. - Page 11 Installation Dash Cam setup Do NOT mount your Piqo in front of the driver. When installing the Dash Cam in a vehicle, always place the device securely against the windscreen and where possible conceal the power cable under trim. Make sure that the Dash Cam power cable does not interfere with the drivers operating controls, such as the steering wheel, pedals or gear levers.
- Page 12 Piqo Ensure the windscreen is clear of grease and dirt to allow the most effective adhesion, and keep Piqo securely mounted. Point the lens out of the wiper zone for clear recordings in all weather conditions. Piqo must NOT obstruct the driver’s view.
- Page 13 Turn on your vehicle's ignition 12-24Vdc The above diagram is for illustration purposes only. to power your Piqo. You should see a blue light on your Piqo. If your Piqo is not turned on, make sure your cables are connected properly.
- Page 14 Searching for Piqo Dash Cam’s Live View. Use Make sure your Dash Cam is turned on, set to pairing mode and within range. Your Piqo will pulse blue when in pairing mode. this real-time view to help find the best place for your Piqo.
- Page 15 Installation Dash Cam setup Remove 3M Adhesive Backing Once you’re happy with the placement of your Piqo, remove the 3M adhesive backing. Mount Piqo to your Windscreen Firmly press the adhesive pad to the clean area of the windscreen. Press for up to 30 seconds...
- Page 16 Dash Cam range. The all-new Nextbase app ensures a seamless connection to access, edit and share footage easily. Stay connected with others in the Piqo community with daily reels, driver data, rewards and more. You can access features such as Emergency SOS...
-
Page 17: Features
Witness Mode and Guardian Mode Dash Cam information Check for and install Firmware Updates Help from Nextbase via Live Chat & FAQs Nextbase™ latest offers and deals Connecting Dash Cam to App Follow the first time use setup instruction in the app, or click on ‘Connect to Dash Cam‘... - Page 18 Settings In the app These Settings can be changed in the app. Resolution The level of detail captured. Higher resolutions mean larger file sizes Exposure Determines how light/dark your recorded image is Audio Toggle sound recording On/Off Time Stamp Information overlaid onto your videos can be toggled On/Off Speed Stamp Information overlaid onto your...
- Page 19 Settings In the app These Settings can be changed in the app. Impact Sensitivity Adjust the sensitivity of the G-Sensor, which will change the threshold to trigger automatic file protection. Limited History Maximum - no recording restrictions Minimum- Total unprotected video recording is limited to comply with some non-UK laws.
