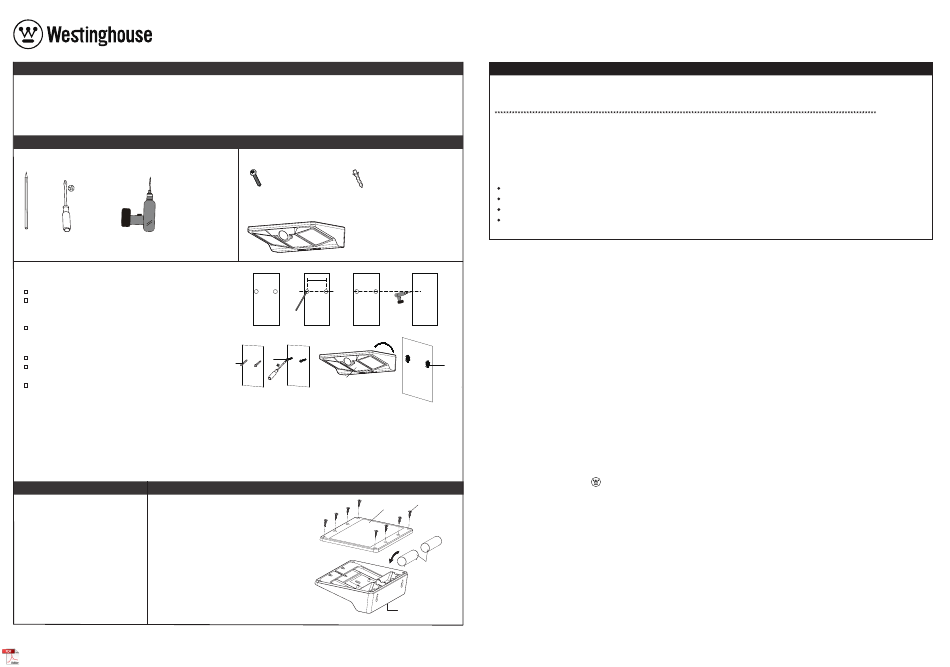

FOR FIRST TIME USE: SOLAR LIGHT NEEDS TO CHARGE IN FULL SUNLIGHT FOR 8 -12 HOURS WITH THE SWITCH IN
THE "ON" POSITION TO FULLY CHARGE THE BATTERY.
The intelligent solar LED motion activated light measures the available battery power capacity and adjusts the light's performance to
maximize runtime.
Tools Required
Pencil
Phillips-head
Electric drill
Screwdriver
drill bit size:
ø7.5mm (3/10 in.)
1
Marking the location
Mark the location where you want to mount the light fixture (Part C) .
Measure the width of two holes on the back of the light
to align holes for the 2 screws (Part A) on the surface.
The distance between the two holes is 5.12in. (130mm).
Drill two holes.
2
Mounting the light fixture
Insert the
wall anchors
(
Part
B) so they are flush with the surface.
Insert the screws (Part A) and leave at least 1/4in. (6.3mm) of the
Part
the light .
screws (
A) outside of the surface for holding
Mount the light (
Part
C) on the screws (
Part
A) by placing the
keyholes on the back of the light over the screw heads.
NOTE:
Light fixture will stay on for 30 seconds when triggered by motion delivering up to 2000 Lumens and revert back to standby mode
delivering up to 50 lumens until motion is detected. For best performance, mount the light a minimun 6 feet (1.8 m) above the ground.
Motion detection range is up to 20 feet (6 m), motion detection angle is up to 120°. Light fixtures use radio frequency technology to link, and
light fixtures should not be greater than 90 feet (27 m) apart for linked function to work properly. When one light is triggered by motion,
both lights will activate and deliver up to 2000 lumens. The package includes 2 lights. These 2 lights are factory linked, and can not be linked
with more of the same type light or any other lights. NOTE: If there are performance or quality issues, both units need to be replaced with
another set.
TROUBLE SHOOTING
If light doesn't turn on, check the
Slide the power switch to the "OFF" position.
battery to ensure that it is making
Use a Phillips head screwdriver to remove the
secure contact with the terminals.
8 screws holding the battery cover in place.
If this doesn't work, replace with a
Replace old batteries with 2 new 3.7V, 2000 mAh
new battery.
lithium (18650) rechargeable batteries.
Replace the battery cover by aligning it properly
and replacing the 8 screws removed earlier.
Slide the power switch to the "ON" position.
For optimal performance, allow light fixture to charge
in full sunlight for 8-12 hours, to fully charge the
battery.
SOLAR LED WALL LIGHT WITH
MOTION SENSOR (FACTORY LINKED)
ITEM: SR58FA01H-08
INSTRUCTIONS
INSTALLATION
Hardware Included
(A) Screw X 4
(B) Wall Anchor X 4
Parts
(C) Light Fixture X 2
5.12in. (130mm)
x
x
A
B
C
REPLACING THE BATTERY
Battery Cover
FCC WARNING
Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to
operate the equipment.
Notes: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to protection against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency enerqy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications.
However, there is no quarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio / TV technician for help.
RF EXPOSURE:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be
installed and operated with minimum distance of 20 cm between the radiator and your body. This transmitter must not be co-located or operating
in conjunction with any other antenna or transmitter.
A
WARNING:
Do not dispose of lithium batteries in municipal waste stream or by fire as batteries may explode. Do not open, short circuit, or destroy
batteries. Dispose of batteries in accordance with Local, State, and Federal regulations. Do not mix old and new batteries. Do not mix alkaline,
standard (carbon-zinc), or rechargeable (nickel cadmium, nickel metal hydride or lithium ion) batteries .
For additional help and information regarding installation, contact customer service at 1-844-551-0680, 8am-5pm, CST Monday – Friday
Screws
Batteries
Power Switch
E
customerservice@idctexas.com
and Westinghouse are trademarks of Westinghouse Electric Corporation. Used under license by Sky Rich Star Limited. All Rights Reserved.
