Westinghouse W-806 Owner's Manual

Owner's Manual
LED Outdoor Lighting Fixture
Installation Instructions
FIXTURE WARRANTY
This Westinghouse lighting fixture is warranted against defects in material and workmanship for a period of
five years from purchase date. This warranty is in lieu of all other warranties expressed or implied.
This warranty does not cover acts of nature such as lightening damage, or corrosion and discoloration of
components, nor does it cover damages caused through abuse, improver installation, surges in electric
current, or acts of third parties.
This warranty does not cover the costs of removing and re-installing the lighting fixture.
If this product fails for any reason covered by this warranty, please contact us at www.westinghouse-
lighting.com/contact-us.
ASSEMBLY INSTRUCTIONS FOR INDOOR LIGHTING FIXTURE
Congratulations on your Westinghouse purchase. This fixture has been designed to give you many years
of beauty and service. For questions and comments, please visit www.westinghouselighting.com/
contact-us.
NOTE: Carefully unpack fixture and parts. Make sure all parts are included before discarding any packing
materials (see figure 1).
WARNING: ELECTRICAL SHOCK CAN RESULT IN SERIOUS INJURY.
Read and follow instructions exactly as shown. If instructions are unclear, do not proceed. Contact a
qualified electrician. Read all instructions before beginning. Proper wiring is essential for safe operation
of this fixture. When cutting or drilling into walls or ceilings, do not damage electrical wiring, gas lines,
or water lines. If any of the fixture or wiring components are damaged, do not install fixture. Return to
place of purchase.
For fixtures provided with 75° C or 90° C supply wire warning only. (These warnings are provided on the
U.L. label and on the fixture carton.) Risk of fire. Most dwellings built before 1985 have supply wires
rated 60° C. Consult a qualified electrician before installing.

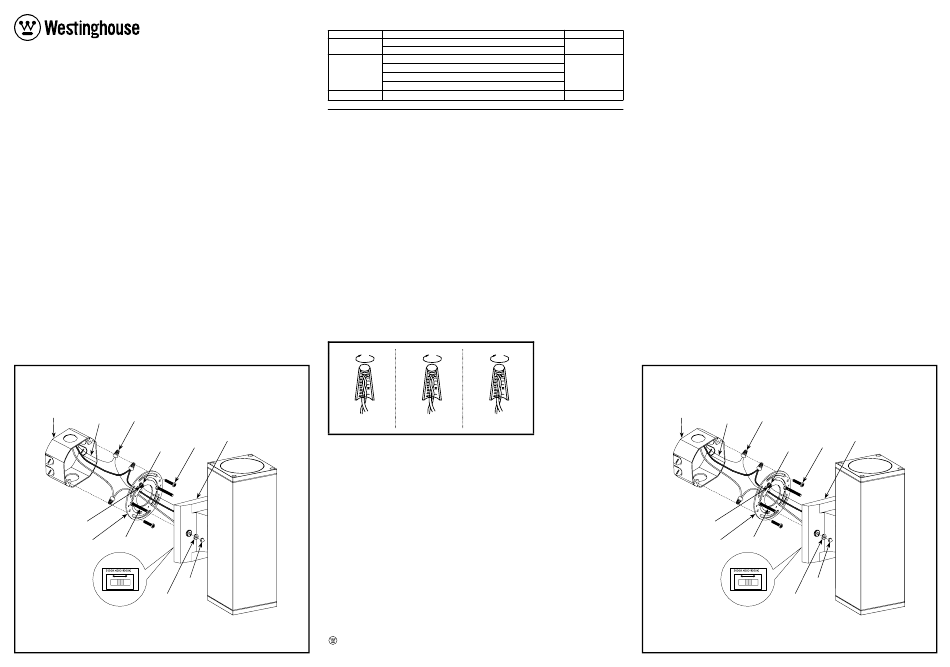

FIGURE 1. Line art shown may not exactly match the fixture enclosed.
However, the installation instructions do apply to this fixture.
*OUTLET
WIRE
BOX (C)
*GROUND
CONNECTORS (E)
WIRE
GREEN
*OUTLET BOX
GROUNDING
SCREWS (D)
SCREW (F)
SIDE
HOLE (G)
UNIVERSAL
MOUNTING
MOUNTING
SCREWS (A)
PLATE (B)
CAP
NUTS (I)
WASHER (J)
NOTE: THIS FIXTURE IS SUITABLE FOR USE WITH DIMMABLE SWITCHES, SEE BELOW FOR LIST OF COMPATIBLE
DIMMERS.
W-806
Brand
052824
Lutron DVCL-153P, MACL-153M, PD-6WCL, TGCL-153PH-WH-C,
SCL-153P, DVCL-253P, PD-10NXD
Leviton DDMX1-BLZ, DSL06-1LZ, C22-6672-1LW, R11-DSL06-OTW,
R00-RNL06-OTW, R68-06674-POT, 6674-PO, 6672-1L,
TPL06-10, 06674-002-10W, DSL06-001-1LZ, RDL06-001-10Z,
RNL06-001-10Z
Legrand RHCL453PNICCV4
Not recommended for use with motion sensors, light sensors, timers or any other external controls.
MOUNTING AND WIRING INSTRUCTIONS
NOTE: Underwriters Laboratories (UL) does not require all fixtures to have ground wires. These fixtures
meet all UL specifications.
CAUTION: For fixtures labeled for outdoor and wet location use, provide a water-tight seal between the
fixture and the mounting surface by using silicone or similar caulking.
1. Turn off power at circuit box to avoid possible electric shock.
2. Thread mounting screws (A) into universal mounting plate (B) with mounting screws protruding away
from outlet box (C) (see figure 1).
3. Secure univeral mounting plate (B) to outlet box (C) with outlet box screws (D) (if applicable).
4. Move the slide switch to your appropriate light color (3000K/ 4000K/ 5000K).
5. Identify color coding of fixture wires (see figure 2).
6. Connect the black wire from the fixture with the black wire (hot wire) from the outlet box by wire
connector (E), and wrap the wire connector (E) with electrical tape for a more secure connection.
7. Connect the white wire from the fixture with the white wire (neutral wire) from the outlet box by wire
connector (E), and wrap the wire connector (E) with electrical tape for a more secure connection.
8. Partially thread green grounding screw (F) into side hole (G) of cross bar (B) (see figure 1).
9. Wrap grounding wire from fixture around green grounding screw stem (F) leaving enough excess wire,
then connect the excess grounding wire from the fixture with the grounding wire from outlet box by
wire connector (E) (if applicable), then wrap the wire connector (E) with electrical tape for a more secure
connection.
10. Tighten grounding screw (F). Do not over tighten.
11. Tuck wires inside outlet box (C).
FIXTURE ASSEMBLY INSTRUCTIONS
1. Place back plate (H) over mounting screws (A).
2. Secure into place with washer (J) and cap nuts (I).
3. Turn on power at circuit box.
FIGURE 2.
FIXTURE FIXTURE
WIRES: WIRES:
Black White
HOUSE
WIRES:
Black
(Hot)
BACK
PLATE (H) WARNING
Turn off electricity to the mounting site before beginning installation.
Mounting instructions must be followed exactly as shown for the fixture to be
safely supported.
The installation height, i.e. the distance between the fixture and the floor, should
be at least 1.2 m.
CLEANING AND CARE
To clean, wipe fixture with soft cloth. Clean glass with mild soap. Spray from chemical cleaners can
discolor the finish of fixture. Do not use scouring pads, powders, steel wool or abrasive paper to clean
this fixture.
ORDERING PARTS
Keep this manual for future reference, and in case replacement parts are needed. Available parts can be
ordered from place of purchase. Use exact wording from diagrams when ordering parts.
Westinghouse Lighting, Philadelphia, PA 19154-1029, U.S.A.
and Westinghouse are trademarks of Westinghouse Electric Corporation.
*NOT SUPPLIED
Used under license by Westinghouse Lighting.
Model # DIMMING RANGE
10-100%
10-100%
10-100%
FIXTURE
WIRES:
Bare
Copper
(Ground)
HOUSE HOUSE
WIRES: WIRES:
White Bare
(Neutral) Copper
(Ground)
www.westinghouselighting.com
All Rights Reserved. Made in China
Guide d'utilisation
Instructions d'installation
Appareil d'éclairage pour utilisation extérieure avec DEL
GARANTIE LIMITÉE DE CINQ ANS
Ce luminaire Westinghouse est garanti pièces et main-d'oeuvre pour une période de Cinq ans à compter de
la date d'achat. Cette garantie remplace toute autre garantie, explicite ou implicite.
Cette garantie ne couvre pas les phénomènes naturels comme les dommages de la foudre, ni la corrosion
ou la décoloration des composants, pas plus qu'elle ne couvre les dommages causés par les abus, une
installation inappropriée, les surtensions électriques ou les actes de tiers.
Cette garantie ne couvre pas les coûts de dépose et de pose du luminaire.
En cas de défaillance du produit, pour une raison quelconque, couverte par cette garantie, veuillez nous
contacter via www.westinghouselighting.com/contact-us.
LES INSTRUCTIONS D'ASSEMBLAGE DE L'APPAREIL D'ÉCLAIRAGE POUR UTILISATION
INTÉRIEURE
Félicitations ! Vous avez acheté un produit de Westinghouse Lighting. Cet appareil d'éclairage a été conçu
pour durer de nombreuses années. Si vous avez des questions ou des commentaires à
nous communiquer, veuillez visiter www.westinghouselighting.com/contact-us.
NOTA : Déballez soigneusement l'appareil d'éclairage et les pièces. Assurez-vous que toutes les pièces y
sont avant de mettre l'emballage au rebut (voir fig. 1).
MISE EN GARDE: L'ÉLECTROCUTION POURRAIT CAUSER DE GRAVES BLESSURES
PERSONNELLES.
Lisez ces instructions et suivez-les exactement comme illustré. En cas de doute, ne commencez pas l'in-
stallation. Consultez un électricien qualifié. Lisez toutes les instructions avant de commencer l'installa-
tion. Un câblage approprié est essentiel au bon fonctionnement de cet appareil d'éclairage. Lorsque vous
faites une entaille ou que vous percez un trou dans un mur ou un plafond, n'endommagez pas les câbles
électriques, les canalisations de gaz ou d'eau. Si l'un des composants de raccordement ou de l'appareil
d'éclairage est endommagé, n'installez pas cet appareil d'éclairage. Retournez-le à l'endroit où vous l'avez
acheté.
Convient uniquement aux appareils comportant un avertissement indiquant que l'appareil d'éclairage est
doté d'un fil supportant une chaleur de 75°C ou 90°C. (Ces avertissements se trouvent sur l'étiquette U.L.
et sur l'emballage de l'appareil d'éclairage.)
FIGURE 1. Il est possible que le dessin illustré ici ne soit pas la reproduction exacte de l'appareil
d'éclairage contenu dans la boîte.
Les instructions d'installation demeurent cependant valables.
*BOITE DE SORTIE
CONNECTEURS
DE COURANT (C)
*FIL DE MISE
DE FIL (E)
A LA TERRE
*VIS DE LA BOITE
VIS DE MISE
DE SORTIE DE
A LA TERRE
COURANT (D)
(VERTE) (F)
TROU
LATERAL (G)
PLAQUE DE FIXATION
VIS DE
UNIVERSELLE (B) FIXATION (A)
ECROUS
CAPUCHONS (I)
RONDELLE (J)
PLAQUE
ARRIERE (H)
*NON FOURNI
