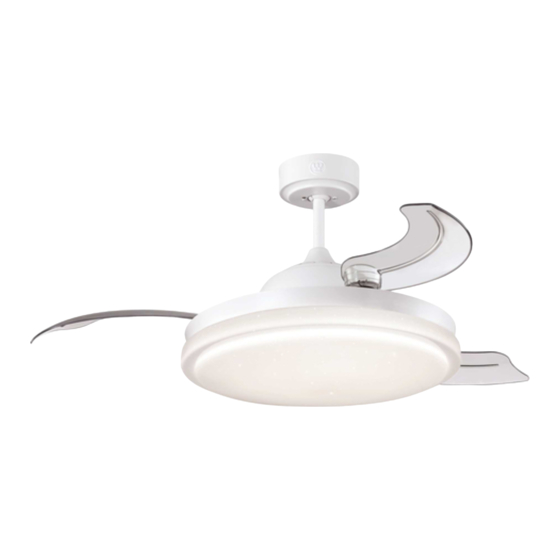

Westinghouse Pinta Owner's Manual
  1. Manuals
  2. Brands
  3. Westinghouse Manuals
  4. Outdoor Light
  5. Pinta
  6. Owner's manual

Westinghouse Pinta Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Saynet-EI-Pinta-WH20
OWNER'S MANUAL
‫מדריך למשתמש‬
Pinta
Please write model number here for future reference:
:‫אנא כתוב מספר דגם כאן לעיון בעתיד‬
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pinta and is the answer not in the manual?

Questions and answers

Related Manuals for Westinghouse Pinta

Summary of Contents for Westinghouse Pinta

  • Page 1 Saynet-EI-Pinta-WH20 OWNER'S MANUAL ‫מדריך למשתמש‬ Pinta Please write model number here for future reference: :‫אנא כתוב מספר דגם כאן לעיון בעתיד‬...

  • Page 2: Safety Tips

    Saynet-EI-Pinta-WH20 SAFETY TIPS READ AND SAVE THESE INSTRUCTIONS WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: 1. Proceed with caution. Read all instructions before beginning the installation. 2. WARNING! This fan may be operated only with a 2-pole switch with a 3mm contact opening each.
  • Page 3 Saynet-EI-Pinta-WH20 ‫טיפים לבטיחות‬ ‫קרא ושמור את ההוראות‬ :‫אזהרה: להפחתת סיכון לשריפה, התחשמלות או פגיעה באנשים, הקפידו לפעול לפי ההוראות הבאות‬ .‫1. המשך בזהירות. קרא את כל ההוראות לפני שתתחיל בהתקנה‬ .‫2. אזהרה! מאוורר זה יכול להיות מופעל רק עם מתג דו-קוטבי עם פתח מגע 3 מ"מ כל אחד‬...

  • Page 4: Preparing For Installation

    Saynet-EI-Pinta-WH20 MOUNTING BRACKET INSTALLATION PREPARING FOR INSTALLATION ‫הכנה להתקנה‬ ‫התקנת תושבת תליה‬ Drill two mounting holes in the ceiling joist and securely screw the mounting bracket to the ceiling using the washers and wood screws provided. The mounting plate should be able to hold a weight of at least 15.9kgs (35 lbs).
  • Page 5 Saynet-EI-Pinta-WH20 MOUNTING BRACKET INSTALLATION ‫התקנת תושבת תליה‬ Note: Proper care must be taken when mounting to concrete ceilings and add the expansion anchors installation step for mounting bracket. ‫הערה: יש לנקוט במשנה זהירות בעת ההתקנה על תקרות‬ .‫בטון ולהשתמש בברגי ג'מבו מיוחדים לחיזוק תושבת המאוורר‬...
  • Page 6 Saynet-EI-Pinta-WH20 MOUNTING BRACKET INSTALLATION ‫התקנת תושבת תליה‬ Tighten hex nut until feel the metal expansion anchor is not working loose. Remove the hex nut, spring washer, metal washer, keep them for next step usage. ‫הברג את האום עד שתרגיש שבורג הג'מבו מתרחב ומתהדק במקומו‬...
  • Page 7 Saynet-EI-Pinta-WH20 MOUNTING BRACKET INSTALLATION ‫התקנת תושבת תליה‬ Pull the supply mains (1) through the center of the ceiling, and align the two oval holes in the mounting bracket with the expansion anchors, re-install metal washer, spring washer and hex nut, tighten the hex nut until the mounting bracket is fix stably.

  • Page 8: Wiring Options

    Saynet-EI-Pinta-WH20 WIRING OPTIONS ‫אפשרויות חיווט‬ ‫חיווט‬ Wiring: From House: :‫חיווט מהבית‬ ‫קופסת מהדקים‬ :‫למחבר‬ TERMINAL BLOCK Connector: Live (L) (L) ‫פאזה‬ (N) ‫אפס‬ Neutral (N) Ground ‫הארקה‬ ‫עקוב אחר התרשים כדי ליצור חיבורים לקופסת מהדקים על‬ Follow diagram above to make wiring connections to the termi- .‫התושבת‬...
  • Page 9 Saynet-EI-Pinta-WH20 DOWNROD MOUNT ‫התקנת מוט תליה‬ Remove clamp pin (2) and cross pin (1) from downrod. Loosen set screws in downrod ball (3) until ball moves easily up and down the downrod. Slide downrod ball down, exposing cross pin (4). Do not remove ball completely. Remove cross pin and save for later use.
  • Page 10 Saynet-EI-Pinta-WH20 DOWNROD MOUNT ‫התקנת מוט תליה‬ Insert the downrod through the canopy and coupling cover. Carefully thread lead Re-install cross pin into downrod and slide downrod ball up until cross pin fits firmly into wires and plug through the downrod and ball assembly.
  • Page 11 Saynet-EI-Pinta-WH20 DOWNROD MOUNT ‫התקנת מוט תליה‬ Loose (but do not remove) the set screws (5) from the down rod coupling. Insert downrod (1) into downrod coupling (2). Make sure to align hole in downrod with the hole in downrod coupling. Install cross pin (3) through coupling and downrod. Insert clamp pin (4) into cross pin until it snaps into place. Tighten set screws (5) in coupling. Slide coupling cover (6) over the downrod coupling.
  • Page 12 Saynet-EI-Pinta-WH20 MOUNTING ‫התקנה‬ After hanging fan onto the mounting bracket, make sure plug connectors from the ceiling Carefully lift fan assembly onto mounting bracket. Rotate fan until notch on downrod fan and terminal block (1) are moved away from the space located above the downrod ball ball (1) engages the ridge (2) on the mounting bracket.
  • Page 13 Saynet-EI-Pinta-WH20 WIRING OPTIONS ‫אפשרויות חיווט‬ While fan is hanging on bracket, plug 4-pole connector from the mounting bracket into the 4-pole plug connector from the remote receiver (1). Plug the 4-pole plug connector from the remote receiver into the 4-pole plug connector from the fan (2).
  • Page 14 Saynet-EI-Pinta-WH20 SECURE TO CEILING ‫קיבוע לתקרה‬ Loosen the 2 screws on the bottom of mounting bracket but do not remove them. Raise the canopy up and align the keyholes on the bottom of the canopy with the 2 screws on the bottom of mounting bracket. Rotate the canopy until both screws from the mounting bracket drop into the slot recesses. Tighten screws securely.

  • Page 15: Light Fixture Installation

    Saynet-EI-Pinta-WH20 LIGHT FIXTURE INSTALLATION ‫התקנת גוף התאורה‬ Locate the indentations on the neck of the plastic shade and align with the protrusions on the inside of the light kit. Lift the plastic shade up allowing the protrusions to engage the indentations of the plastic shade, and twist the plastic shade clockwise to lock into place.
  • Page 16 Saynet-EI-Pinta-WH20 BRACKET OF TRANSMITTER INSTALLATION ‫התקנת תושבת לשלט‬ Note: Install two AAA batteries by removing battery cover on back of transmitter, installing batteries, and replacing battery cover. If desired, install the transmitter holder onto the wall with included screws. .‫ על ידי הסרת מכסה בגב השלט. אם תרצה, התקן את תושבת השלט על הקיר עם הברגים הכלולים‬AAA‫הערה: הכנס שתי סוללו‬...
  • Page 17 Saynet-EI-Pinta-WH20 HOW TO OPERATE YOUR CEILING FAN ‫כיצד להפעיל את מאוורר התקרה שלך‬ Restore electrical power to the outlet box by turning on the electricity at the main fuse box. To make the fan operational, open battery door by pressing and sliding down the battery door.

  • Page 18: Remote Control

    Saynet-EI-Pinta-WH20 REMOTE CONTROL ‫שלט רחוק‬ The remote buttons function as follows: 1. Light On - Press and release 2. Light Off - Press and release 3. Turning fan On – press and release. = low speed = medium speed = high speed 4.

  • Page 19: Maintenance

    Saynet-EI-Pinta-WH20 MAINTENANCE Maintenance 1. Because of the fan’s natural movement, some connections may become loose. Check the support connections, brackets, and blade attachments twice a year. Make sure they are secured. 2. Clean your fan periodically to help maintain its new appearance over the years. Do not use water when cleaning. This could damage the motor, or the wood, or possibly cause electrical shock.
  • Page 20 Saynet-EI-Pinta-WH20 ‫תחזוקה‬ ‫תחזוקה‬ ‫1. בגלל התנועה הטבעית של המאוורר, חיבורים מסוימים עשויים להשתחרר. בדוק את חיבורי התמיכה, הסוגרים והלהבים פעמיים‬ .‫בשנה. וודא שהם מאובטחים‬ .‫2. נקה את המאוורר שלך מעת לעת בכדי לעזור לשמור על המראה החדש שלו לאורך השנים. אין להשתמש במים בעת הניקוי‬...

  • Page 21: Troubleshooting Guide

    Saynet-EI-Pinta-WH20 If you have difficulty operating your new ceiling fan, it may be the result of incorrect assembly, installation or wiring. In some cases, these installation errors may be TROUBLESHOOTING GUIDE mistaken for defects. If you experience any faults, please check this Trouble Shooting Guide.
  • Page 22 Saynet-EI-Pinta-WH20 ‫מדריך פתרון בעיות‬ ‫אם אתה מתקשה להפעיל את מאוורר התקרה החדש שלך, זה עשוי להיות‬ ‫תוצאה של הרכבה, התקנה או חיווט שגויים. במקרים מסוימים, טעויות התקנה‬ ‫אלה עלולות להיחשב לעתים בתור פגמים. אם אתה נתקל בתקלות כלשהן, אנא‬ ‫בדוק את תרשים שלפניך. אם לא ניתן לתקן בעיה, אנא התייעץ עם החשמלאי‬...
  • Page 23 Saynet-EI-Pinta-WH20 Meaning of crossed-out wheeled dustbin: Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact you local government for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being.
  • Page 24 Saynet-EI-Pinta-WH20 Westinghouse Lighting, Philadelphia, PA 19154-1029, U.S.A. www.westinghouselighting.com , WESTINGHOUSE, and INNOVATION YOU CAN BE SURE OF are trademarks of Westinghouse Electric Corporation. Used under license by Westinghouse Lighting All rights reserved. Made in China...
