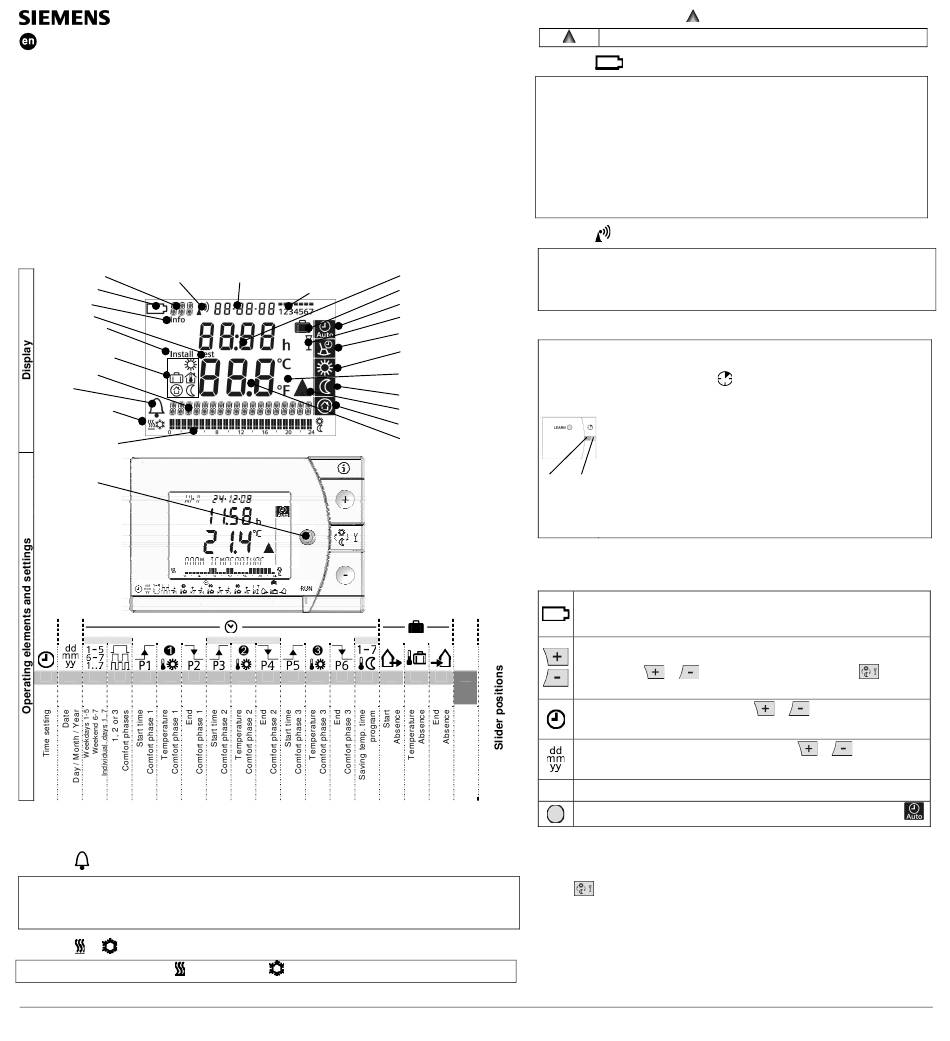

Operating instructions
REV24RF.. - 7-day radio room temperature controller for the right temperature at the right time. All factory
settings already provide optimal living comfort. You can easily adjust the controller to your needs with the user-
assisted clear-text display and program selection slider.
REV24RF.. (controller with radio transmitter) is a wireless device that you can mount on the wall or place freely
on a base in the room.
Its radio frequency 868 MHz is largely immune to external disturbances. The signal level meets regulations and
is kept as low as possible. The devices are approved for all EU member states, Iceland, Norway, and
Switzerland.
Note the following for placing the devices:
• Make sure no other influencing factors influence the controller's temperature sensor (no solar radiation and
other heat or cold source influences).
• The distance between controller and receiver may not exceed 20 m or 2 floors.
• Do not place near metallic items or electrical devices, etc..
Day of week Radio clock
active
Low battery
Info mode
Test mode
Installer mode
Temperature
setpoint symbols
Text display
Alarm
Cooling mode /
Heating mode
Switching pattern
with time cursor
Operating mode
selector:
- Automatic
- Exception day
- Comfort mode
- Energy saving
mode
- Prot. mode
1 2 3 4 5 6 7
If the selected operating mode does not support the setting, the time display shows PASS.
Special symbols displayed
The controller display can show the following special symbols:
Is symbol displayed ?
The alarm indicates an error!
Press the Info button and check the error message (e.g. radio clock signal, radio connection to receiver, etc.).
Contact a specialist as needed.
Is symbol or displayed?
The controller is in "heating mode" or "cooling mode"
B2206en
Date Setting: 1-5, 6-7, 1..7
Reading: 1..7
Info button
Increase values, set time or
make a selection
Change between Comfort and
energy saving temperature
(active until next switching time)
and Party function
Decrease values, set time or
make a selection
Program selection slider
8 9 10 11 12 13 14 15 16 17
.
REV24RF.. Is a rolling triangle symbol
RCR10/868
Is symbol
This symbol tells you that you must exchange the batteries within the next 3
months.
Insert 2 new alkaline batteries type AA, 1.5 V as follows:
Remove the controller from the mounting base; open the battery compartment on the
rear; remove the old batteries; insert the new batteries and reinsert the controller in
the base.
Caution:
Dispose of the batteries as per regulations.
Is symbol
The radio clock symbol only appears if the receiver is set up and activated to receive the
time signal from Frankfurt (Germany). A permanent symbol indicates that both time and
Time display
date of the controller are synchronized to Frankfurt (DCF77).
Holiday mode
The symbol flashes if the signal is not received for more than 1 week.
Automatic mode
Party mode active
Commission receiver RCR10/868
Exception day mode
Continuous comfort mode
°C or °F
Continuous energy
saving mode
Heating On /
Cooling On
Protection mode
Temperature display
LED_1 LED_2
Commission the controller and quick start
The controller contains a factory-set comfort switching pattern and temperature values.
Proceed as follows for initial commissioning:
Remove the controller from the mounting base and pull off the black insulating
tape from the 2 batteries: The controller turns on automatically. Reinsert the
controller in the mounting base.
RUN
After startup, a welcome message appears for ca. 2 minutes. Press a button
to interrupt the message. Language selection starts with "ENGLISH" (factory
setting). Press
the slider to accept your language.
Slider in position 1 (time setting): Press
Note:
Slider in position 2 (date: day/month/year): Press
Note:
RUN
Move the slider to the very right to position RUN (only way to close the cover).
Set the operating mode with the operating mode selector. Factory setting
Fold the operating instructions and reinsert in the mounting base.
Tips to save energy without reducing comfort
•
Heat your rooms to max 21 °C.
•
Use
•
Air out your rooms briefly, but with wide-open windows.
25.12.2007
displayed ?
The controller sends a control telegram to the receiver.
displayed ?
Time and date are retained for max. 1 minute.
(All other settings remain unchanged).
displayed ?
The factory setting connects the receiver in the RF/SET to the controller.
After commissioning, it does not require maintenance.
Press the override button on the receiver to manually override the
relay. After ca. 15 minutes, the relay again follows the controller's control
telegrams.
The relay turns off after a voltage interruption as well as 60 minutes after
receipt of the last control telegram.
Receiver and controller can be manually connected. Press button
"LEARN" for ca. 4 seconds on the receiver: The blue LED_2 flashes
slowly, learning mode is active. Press button "LEARN" within 20 minutes
on the controller for ca. 4 seconds: The blue LED_2 briefly flashes
quickly; LED_1 goes from red to green.
Max 15 receivers can be connected to 1 controller.
or until your language appears. Press
No entry if there is a time signal receiver (DCF77).
No entry if there is a time signal receiver (DCF77).
to switch to energy saving temperature even if you are absent only briefly.
Siemens, Building Technologies
or move
or to set the time.
or to set the date.
.
