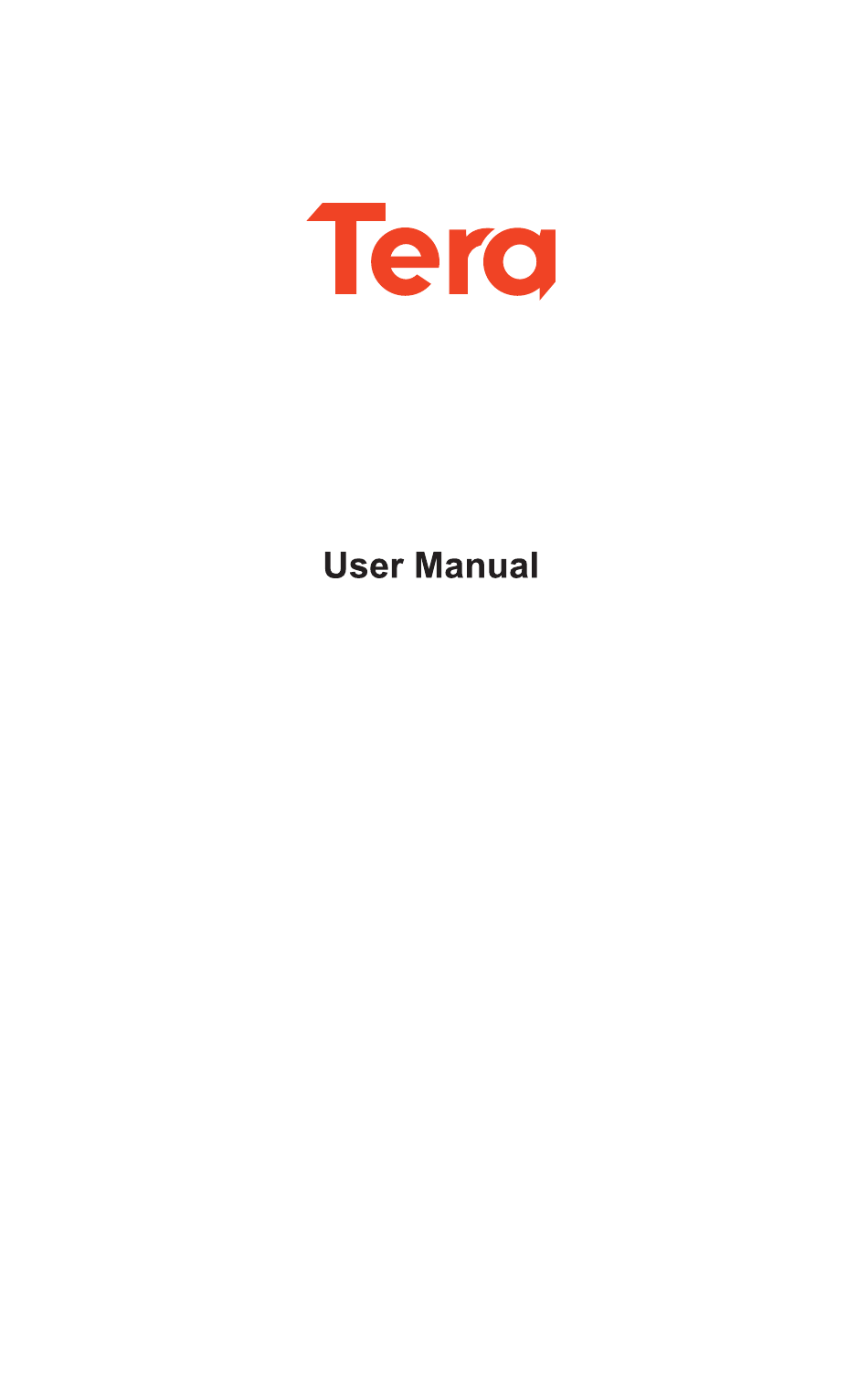

- Page 1 Model: 8100DPM Wireless DPM 2D Area-imaging Barcode Scanner Ver.01.1.01 Updated & Multilingual User Manual online: https://www.tera-digital.com...
- Page 2 Official Customer Service Email Address: info@tera-digital.com Phone Number: +1(626)438-1404 Note: When contacting the Tera support, please have the following information available: Serial number of the unit (found on manufacturing label) Model number or product name (found on manufacturing label) Follow us:...
-
Page 3: Charging Instructions
Charging Instructions Please Read Before Charging Power Requirements: This scanner requires a 5V/1A USB port for charging. It’ s essen- tial to use a power source that delivers a stable 5V/1A output. Using a power source with a higher voltage or amperage could damage the device and void the warranty. - Page 4 USB cable or the USB receiver. You can verify this by checking if the scanner appears under “Keyboard” in the "Device Manager" as a keyboard icon. The device is plug-and-play and can be tested immediately in any text document application (e.g., Notepad, Microsoft Word, Excel). Need Support? info@tera-digital.com https://www.tera-digital.com +1(626)438-1404...
-
Page 5: Table Of Contents
Contents Factory Default Settings ............. Software Version ................ Beeper Volume ................Battery Level ................Vibration ..................Power Timeout Timer ..............Keyboard Country Layout ............Operation Modes ................ Pairing the Scanner with its Receiver ........Pairing the Scanner with Bluetooth Devices ......Virtual Serial Port ............... -
Page 6: Factory Default Settings
Factory Default Settings If you aren't sure what programming options are in your scanner, or you have changed some options and want to restore the scanner to factory default settings, scan the barcode below. Restore Defaults Software Version Scan the bar code below to output the current software version of the scanner. Show Software Version Beeper Volume The beeper volume codes modify the volume of the beep the scanner emits on a... -
Page 7: Battery Level
Battery Level To check the remaining battery level, please scan the following barcode. Ensure your cursor is in a text box when scanning. Show Battery Level Vibration The scanner vibrates once when a barcode is successfully read. If you don't want the scanner to vibrate, please scan the Vibration Off barcode. -
Page 8: Keyboard Country Layout
Keyboard Country Layout Your keyboard layout default is a US keyboard. To change this layout, scan the appropriate Keyboard Country barcode below. (Please note that if the keyboard layout on your scanner doesn't match your computer's, the outputs may be incorrect. ) United States* Germany France... -
Page 9: Pairing The Scanner With Its Receiver
Upload All Stored Codes In storage mode, the scanner does not transmit data to the host device, even when it is back in range. To transmit the stored data, you need to scan the following code. Upload All Stored Codes Total Records If you wish to output the total number of barcodes scanned when in storage mode, scan Total Records. -
Page 10: Pairing The Scanner With Bluetooth Devices
Pairing the Scanner with Bluetooth Devices The scanner can be paired with Bluetooth devices such as personal computers, laptops, and tablets. Step 1: Scan the “Bluetooth HID” barcode and the “Pairing” barcode below to establish one-way communication with the scanner. Bluetooth HID Mode Pairing Step 2: Set your personal computer, laptop, or tablet so it searches for other... -
Page 11: Termination Suffixes -Enter, Tab
Termination Suffixes - Enter, Tab By default, the scanner adds a carriage return suffix to all symbologies. If you don’t want the scanner to “press” the Enter key after every scan, please scan the “None” barcode below to remove the default termination suffix. If you need the scanner to “press”... - Page 12 2. Scan the appropriate code from the digit codes below： (Example: If a barcode reads "ABC123" and you want to extract "BC1, " you should first scan the “Remove characters from the start” barcode, followed by the “1 digit” barcode. Then, scan the “Remove characters from the end” barcode, followed by the “2 digits”...
-
Page 13: Scan Modes
Scan Modes Enter Programming Mode Exit Programming mode Manual Trigger Mode A scan mode for reading barcodes by pulling the trigger. To enter Manual Trigger Mode, first scan the “Enter Programming Mode” barcode, then the “Manual Trigger Mode” barcode, and finally the “Exit Programming Mode” barcode. The same steps apply for entering Continuous Scan Mode and Sensor-activated Mode.
