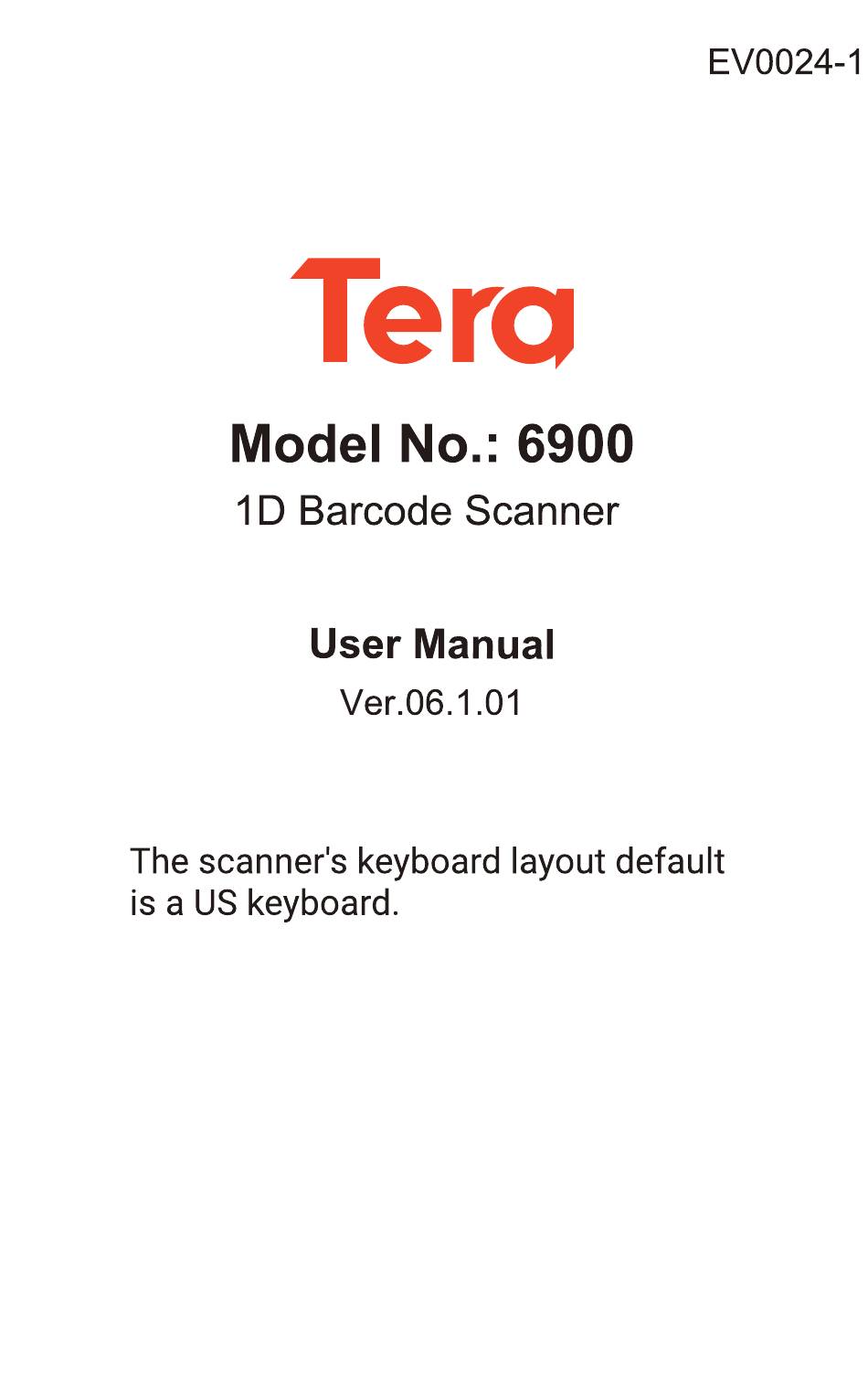

Tera 6900 User Manual

1d barcode scanner
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6900 and is the answer not in the manual?

Questions and answers

Related Manuals for Tera 6900

Summary of Contents for Tera 6900

  • Page 3: Table Of Contents

    Contents Factory Default Scanning Mode Setting Volume Setting Tune Setting USB Device Type USB Keyboard Language Uppercase and Lowercase Symbology Enable and Disable Add Prefix and Suffix Insert String Setting Hide Prefix and Suffix Terminator Setting Appendix...

  • Page 4: Factory Default

    Restore Factory Default If the scanner fails to operate due to improper configurations or other reasons, scan this barcode to restore it to factory settings. Restore Factory Default Scanning Mode Setting Trigger Mode: Hold the trigger button to scan, then release the trigger to end the scan.

  • Page 5: Volume Setting

    Volume Setting High Tune Setting High Medium USB Device Type The default is "HID Emulation Keyboard". Since most devices have integrated USB HID device drivers, there is no need to install additional software to use this scanner. HID Emulation Keyboard Simulate RS232 Serial Port IBM Table Top USB IBM Hand-Held USB...

  • Page 6: Usb Keyboard Language

    USB Keyboard Language English German French Others Uppercase and Lowercase Uppercase Lowercase Symbology Enable and Disable EAN-13 EAN13 to ISBN/ISSN EAN-8 UPC-A UPC-E...
  • Page 7 CODE 128 UCC/EAN 128 CODE 39 CODE 93 Interleaved 2 of 5 Industrial 2 of 5 Matrix 2 of 5 Codabar CODE 11...

  • Page 8: Add Prefix And Suffix

    MSI/Plessey GS1 Data Bar GS1 DataBar Limited GS1 Data Bar Expanded Reversed Barcode Prefix and Suffix Setting Add Prefix The prefix setting includes two components: one is whether to enable the prefix character, and the other is the content of the prefix character.
  • Page 9 3. Scan the "End Parameter Input" setting. If you hear "Du-Di", the setup has successed. End Parameter Input 4. Scan the “Enable Prefix” setting barcode to complete adding prefix. Enable Prefix Clear Added Prefix Clear Added Prefix Add Suffix Please set and enable the suffix as follows: 1.

  • Page 10: Insert String Setting

    setup has successed. End Parameter Input 4. Scan the “Enable Suffix” setting barcode to complete adding suffix. Enable Suffix Clear Added Suffix Clear Added Suffix Insert String Setting Users can insert one or two strings: G1 and G2, with a range of 0-16 characters in the appropriate position of the barcode data according to their needs (the length of 0 means an empty string).
  • Page 11 3. Scan the "End Parameter Input" setting barcode. If you hear "Du- Di", the setup has successed. End Parameter Input 4. Scan the setting barcode "Start setting G1 position". Start Setting G1 Position 5. Scan the parameter barcodes and enter the two-digit position parameters in sequence.

  • Page 12: Hide Prefix And Suffix

    Start Setting G2 11. According to the content to be added, refer to " Appendix 1" and corresponding setting codes to the custom the string. ("0 0" means G2 is an empty string.) 12. Scan the "End Parameter Input "setting barcode. If you hear "Du-Di", the setup has successed.
  • Page 13 3. Scan the "End Parameter Input "setting barcode. End Parameter Input 4. Scan the following two setting barcodes to insert string. 5. Scan the "End Parameter Input "setting barcode. If you hear "Du- Di", the setup has successed. End Parameter Input Hide Suffix Users can hide suffix as follows: 1.

  • Page 14: Terminator Setting

    3. Scan the "End Parameter Input "setting barcode. End Parameter Input 4. Scan the following two setting barcodes to insert string. 5. Scan the "End Parameter Input "setting barcode. If you hear "Du- Di", the setup has successed. End Parameter Input Terminator Setting Add Carriage Return Add Linefeed...

  • Page 15: Appendix 1

    Appendix 1 ASCII Chart Special Function Keys Keyboard cable /USB RS-232 Null Down Left Right PgUp PgDn Home Enter Insert Ctrl+ Delete Alt+...
  • Page 16 “ & ‘ < > Normal characters Example:ASCII “!” = “21”...
  • Page 17 Appendix 2 Parameter Barcode End Parameter Input...
  • Page 18 Appendix 3 Common Q & A The scanner does not light up. 1. The scanner is not powered. Check the power supply of the device. 2. If an incorrect cable is used, please use the cable provided by the original manufacturer. 3.
