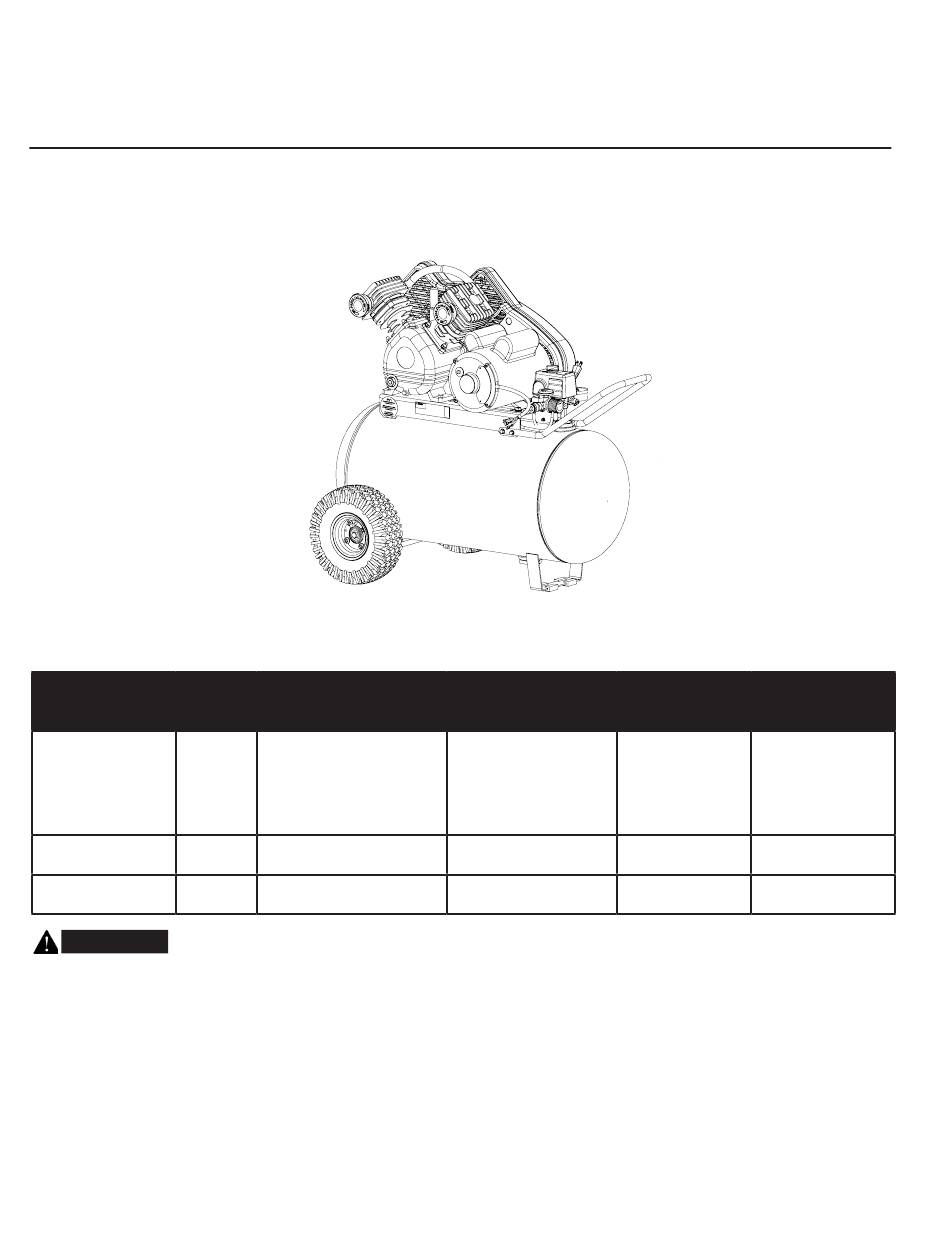

Industrial Air P1682066.MN Operator's & Parts Manual

Single stage, belt drive, electric air compressors

Advertisement

Quick Links

Operator-Parts Manual
Single Stage, Belt Drive, Electric Air Compressors
Product style and configuration may
vary.
RUNNING
MODEL NO.
H.P.
P1682066.MN
1.6
PC1682066.MN
1.6
WARNING:
Read and understand all safety precautions in this manual before operating. Failure to comply with
instructions in this manual could result in personal injury, property damage, and/or voiding of your warranty. The manufacturer
WILL NOT be liable for any damage because of failure to follow these instructions.
SPECIFICATION CHART
TANK CAPACITY
VOLTAGE/AMPS/
GALLONS
20 (75,7)
20 (75,7)
PRESSURE
PHASE
120/240-15/7.5-1
(7,23 bar)
120/240-15/7.5-1
(7,23 bar)
200-2966
Revision D
KICK-IN
KICK-OUT
PRESSURE
105
135
(9,30 bar)
105
135
(9,30 bar)
200-2966_ Rev D_8/10/16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P1682066.MN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Industrial Air P1682066.MN

  • Page 1 TANK CAPACITY KICK-IN KICK-OUT VOLTAGE/AMPS/ GALLONS PRESSURE PRESSURE PHASE RUNNING MODEL NO. H.P. P1682066.MN 20 (75,7) 120/240-15/7.5-1 (7,23 bar) (9,30 bar) PC1682066.MN 20 (75,7) 120/240-15/7.5-1 (7,23 bar) (9,30 bar) WARNING: Read and understand all safety precautions in this manual before operating. Failure to comply with instructions in this manual could result in personal injury, property damage, and/or voiding of your warranty.
  • Page 2: Table Of Contents

    TABLE OF CONTENTS SAFETY GUIDELINES ...............2-3 ELECTRICAL POWER REQUIREMENTS ..........5 GLOSSARY OF TERMS ...............3 OPERATING INSTRUCTIONS .............6 OVERVIEW ...................4 MAINTENANCE .................6-8 ASSEMBLY ...................4 SERVICE INTERVAL ................8 COMPRESSOR CONTROLS ..............4 TROUBLESHOOTING CHART .............9 MOTOR RESET AND WIRING .............5 PARTS DRAWINGS AND PARTS LISTS ........10-14 SAFETY GUIDELINES The following information relates to protecting YOUR SAFETY and PREVENTING EQUIPMENT PROBLEMS.
  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS RISK OF EYE INJURY. Always wear ANSI Z87.1 approved safety goggles when using an air compressor. Never point any nozzle or sprayer toward a person, animal or any part of the body. Equipment can cause serious injury if the spray penetrates the skin.
  • Page 4: Overview

    OVERVIEW resumes compressing air. BASIC AIR COMPRESSOR COMPONENTS The air line outlet (see E). Connect 1/4” NPT air hose to this outlet. The basic components of the air compressor are the electric motor, pump, Fig. 1 pressure switch and tank (see Fig. 1). The electric motor (see A) powers the pump.
  • Page 5: Motor Reset And Wiring

    MOTOR RESET AND WIRNING causes the motor overload protection system or circuit breaker to trip, MOTOR RESET SWITCH especially in cold conditions. WARNING: NOTE: To handle the initial electrical load of starting the air Ensure that all guards and shrouds are in compressor, a circuit breaker is recommended.
  • Page 6: Operating Instructions

    OPERATING INSTRUCTIONS NOTE: If the unit does not operate properly, SHUT DOWN BREAK-IN OF THE PUMP IMMEDIATELY, and contact a qualified service center. Check the oil level in the pump (see “Checking the Oil” in the If a pressure regulator is present on your compressor, maintenance section).
  • Page 7 MAINTENANCE should be kept tight. CHECKING THE OIL Remove the belt guard. Check the level of oil in the pump with the sight glass. The Loosen the motor mounting bolts. pump oil level must be between A and B. Do not overfill or Shift the motor to the point where the correct deflection exists underfill.
  • Page 8: Service Interval

    MAINTENANCE Shift the motor back to the point where the correct deflection exists Apply thread sealant to the check valve threads and reinstall into the (see “Drive Belt Tension Adjustment”). tank by turning clockwise. Make sure it is the same orientation as Retighten the motor mounting bolts to 130-180 in.-lbs.
  • Page 9: Troubleshooting Chart

    TROUBLESHOOTING Note: Troubleshooting problems may have similar causes and solutions. PROBLEM POSSIBLE CAUSE SOLUTION Excessive current draw Low voltage/motor overload Check that power supply is adequate and that compressor is on a trips circuit breaker or dedicated circuit. motor reset switch Drive belt tension too tight Readjust belt tension.
  • Page 10: Parts Drawings And Parts Lists

    PARTS DRAWING 200-2966...
  • Page 11 PARTS LIST Item Part No Article Qté Artículo Núm / P Cant Description 125-0208 Beltguard, outer or 1a (Fig. 1) 125-0175 Beltguard, outer, wire 061-0152 Screw, #10-14 X 3/4” or 2a (Fig. 1) 103-0073 Fastener 007-0009 V-Belt, 4L-450 146-0016 061-0238 Setscrew, 5/16”-18 x 3/8”...
  • Page 12 PARTS DRAWING PUMP - 040-0469 Specifications Weight Approx. 31 Lbs. Oil Capacity 11.35 oz / (336 ml) Lubrication Use full synthetic, non-detergent air compressor oil Max RPM 1240 NOTES: Torque to 5 lb-ft. Torque to 8 lb-ft. Torque to 9-12 lb-ft. Torque to 14-16 lb-ft.
  • Page 13 PARTS LIST Item Part No Article Qté Artículo Núm / P Cant Description 145-0486 Tube, with compression nuts 065-0107 Elbow 061-0238 Socket head cap screw, M6 x 40mm 060-0224 Washer, M6 042-0121 Head, cylinder 046-0302 Gasket, cylinder head 043-0207 Valve plate assy (includes items 6 &...
  • Page 14 PARTS DRAWING NOTES: Torque to 125-150 lb-in. PARTS LIST Item Part No Article Qté Artículo Núm / P Cant Description 032-0056 Gauge, 255# 1/8” back connect 019-0182 Regulator 065-0004 Nipple, 1/4” x 2” 136-0005 Valve, ASME 032-0025 Gauge, 300# 1/4” bottom connect 034-0226 Switch, pressure (includes items 7-9) 136-0090...
  • Page 15: Parts And Service

    PARTS AND SERVICE Replacement parts and service are available from your When needing service, please contact the nearest nearest authorized Service Center. If the need arises, authorized Service Center or call: contact Product Service as listed at right. PRODUCT SERVICE When consulting with a Service Center or Product Service, refer to the model number and serial number located on the serial label of the compressor.
