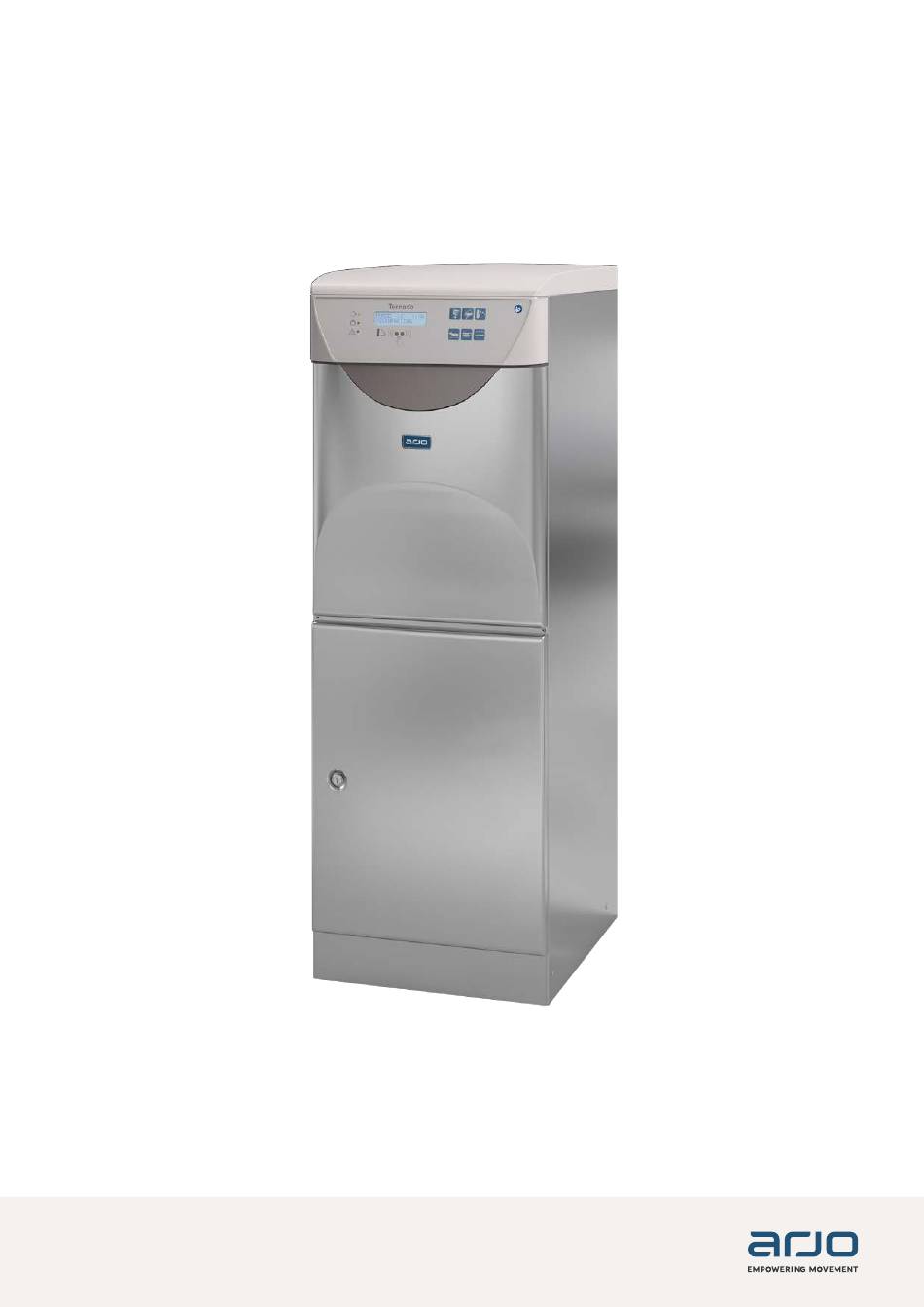

  • Page 1 INSTRUCTIONS FOR USE Tornado 6001314502_6EN • 2024-10...
  • Page 2 Mandatory to read the Instructions for Use. Design Policy and Copyright ® and ™ are trademarks belonging to the Arjo group of companies. © Arjo 2024. As our policy is one of continuous improvement, we reserve the right to modify designs without prior notice.

  • Page 3: Table Of Contents

    Contents PREFACE ...........................5 Definitions in this IFU ....................6 1 SAFETY PRECAUTIONS ...................7 1.1 Important ......................7 1.2 Isolator switch ......................8 1.3 In an emergency ....................8 2 PRESENTATION ......................9 2.1 Area of application ....................9 2.2 Models .........................9 2.3 Control panel .....................10 2.3.1 Parts (FD1800, FD1805) ..............10 2.3.2 Parts (FD1810) ...................10 2.3.3 Functions ....................11 2.4 Display options ....................11...
  • Page 4 7 TROUBLESHOOTING ....................25 7.1 List of codes .......................25 7.2 Types of codes ....................25 8 DETERGENT......................26 8.1 Using detergent ....................26 8.2 Flushing detergent .....................26 8.3 Positioning ......................27 8.4 Switching ......................27 9 WATER QUALITY ......................28 9.1 Requirements ....................28 9.2 Main factors .......................28 9.3 Recommendation ....................28 9.4 Local standard ....................28 9.5 Local standard, typical specification ..............29...

  • Page 5: Preface

    Arjo. The information in this Instructions for use describes the machine as dispatched from Arjo. There may be differences due to customization for customers or countries. Available models:...

  • Page 6: Definitions In This Ifu

    Definitions in this IFU Safety warning. Failure to understand and obey this warning may result in injury or machine damage. Hot surface. Risk of injury. Dangerous voltage. Risk of injury. Automatic door. Risk of getting stuck. Note means: This is important information for the Note! correct use of this system or device.

  • Page 7: Safety Precautions

    1 SAFETY PRECAUTIONS This machine has been designed with a number of built-in safety devices. To avoid injury, it is highly important not to bypass these safety devices. 1.1 Important • The machine is designed for connection to water only (and for steam if applicable).

  • Page 8: Isolator Switch

    • Leakage in the system, for example a worn door seal, must be rectified without delay. • Spare parts must only be obtained from Arjo’s sales companies. If a serious incident occurs in relation to this medical device, • affecting the user, or the patient then the user or patient should report the serious incident to the medical device manufacturer or the distributor.

  • Page 9: Presentation

    To meet the requirements of EN ISO 15883, the goods must be placed in the proper holder, recommended by Arjo. Goods being disinfected are exposed to 90°C for at least 6...

  • Page 10: Control Panel

    2.3 Control panel 2.3.1 Parts (FD1800, FD1805) Figure 2. Control panel Red: Error indication Economy program Green: Process Detergent* complete Normal program Yellow: Process Intensive program running Display Rim flushing * Option 2.3.2 Parts (FD1810) Figure 3. Control panel Red: Error indication Economy program Green: Process Detergent*...

  • Page 11: Functions

    2.3.3 Functions Function Yellow flashing indicator light: The process can be aborted. Yellow indicator light: The machine is running a program. The display shows the current status*, for example the cleaning phase and temperature. Green indicator light: The program is complete. The green light goes out when the door is opened and for a short time a program summary* is shown in the display, for example maximum temperature.

  • Page 12: Displayed While A Program Is Running

    2.4.1 Displayed while a program is running The display can be set to show one of the following alternatives while a program is running: • Temperature • value • value / Temperature • Remaining Time • Temperature / Remaining time •...

  • Page 13: Operating Instructions

    3 OPERATING INSTRUCTIONS WARNING! To prevent contamination, use personal protective equipment, such as gloves and protective glasses, when handling soiled waste containers and loading the goods into the flusher-disinfector. 3.1 Program overview The machine’s standard programs are described here. There may be other programs for the program buttons.

  • Page 14: Machine With Manual Door

    3.2 Machine with manual door 3.2.1 Start a program WARNING! If the machine has not been used for more than 72 hours, it is necessary to run a program with an empty chamber before using the machine to clean goods. Open the door.

  • Page 15: Machine With Automatic Door

    3.3 Machine with automatic door 3.3.1 Start a program WARNING! If the machine has not been used for more than 72 hours, it is necessary to run a program with an empty chamber before using the machine to clean goods. WARNING! Keep hands and arms away when an automatic door has been activated in...

  • Page 16: After Program Completion

    3.3.3 After program completion WARNING! Keep hands and arms away when an automatic door has been activated in order to avoid the risk of getting stuck. WARNING! The goods may be hot at the end of the program. If the temperature of the goods is above 60°C, the display shows U7.

  • Page 17: Examples Of Items And Program Selection

    3.5 Examples of items and program selection B, C Figure 4. Example of goods with economy program (A), normal program (B) and intensive program (C) B, C B, C Figure 5. Example of goods with normal program (B) and intensive program (C)

  • Page 18: Process

    4 PROCESS 4.1 Log file for machine with USB port An example of the placement of the USB port is shown below. The example shows the free-standing model. Figure 6. Example of the placement of the USB port (1) If a USB memory stick is connected it is used as a storage site for a log file.

  • Page 19: An Example Of A Log File Or Printout

    4.3 An example of a log file or printout All log files for processes and process printouts contain the same basic information, while numbers and types of phases depend on the program used. If an error takes place even the error code is included.

  • Page 20: Maintenance

    5 MAINTENANCE 5.1 Flushing chamber If limescale deposits occur, they must be removed with a proper descaler that is intended for the purpose such as Arjo Clean Neutralizer Plus. See the instructions for the agent before using it. 5.2 The outside WARNING! Do not wash the machine down with water.

  • Page 21: Service Table

    5.3.2 Service table WARNING! Maintenance may only be performed by authorized service technicians. WARNING! The machine is connected to the electricity supply and some components are live. Note! The service table is only shown for information purposes. The service table below shows recommended maintenance intervals.
  • Page 22 Measure Each year/ Every other Time* 10,000 year/20,000 (minutes) cycles cycles Check that the overflow drain connection to • the chamber is tight. Clean the inside of the flushing chamber. • Check the door and door spring. • 2.10 Replace plastic nuts M20 of rotating nozzles •...

  • Page 23: Machines That Are Not In Use

    Measure Each year/ Every other Time* 10,000 year/20,000 (minutes) cycles cycles Automatic door Check the automatic closing function (option). • Function check (at each service) 10.1 Run a complete process and be sure there are no deviations according to the periodic checkpoints.

  • Page 24: Alarm

    6 ALARM 6.1 Alarm indication WARNING! If the disinfection process is cancelled, the goods are not clean. The goods must be processed again. If the red lamp at lights up, the disinfection has been aborted. The display shows an error message, see “Troubleshooting”. 6.2 Acknowledgement of error message WARNING! Only to be carried out by authorized staff.

  • Page 25: Troubleshooting

    7 TROUBLESHOOTING 7.1 List of codes The tables below describe the error messages that can be generated as well as possible measures. Code Description Measure Lime descaler low level Top up descaler agent. Process agent low level Top up process agent (option) Rinse-aid low level Top up rinse-aid (option).

  • Page 26: Detergent

    WARNING! Follow the instructions for the container for additional instructions on using the detergent. The machine has been proven and tested with Arjo’s detergents. We recommend that you use Arjo detergents. Chemicals recommended in the Instructions for use does not •...

  • Page 27: Positioning

    8.3 Positioning The illustration below shows, for example, where to place the detergent for the free-standing model. Figure 8. Example of the placement of detergent 8.4 Switching WARNING! To avoid eye and skin damage, always use protective glasses and gloves. If contact occurs rinse with plenty of water.

  • Page 28: Water Quality

    9.3 Recommendation • Arjo recommends that water used in the pre-rinsing, washing and final rinsing phases should be of drinking quality in accordance with the guidelines. Recommended water quality is drinking water with max 5°dH.

  • Page 29: Local Standard, Typical Specification

    9.5 Local standard, typical specification A typical specification for treated water is: 5.5 to 8 Conductivity <30 µs.cm-1 <40 mg/l Maximum hardness <50 mg/l Chlorine <10 mg/l Heavy metals <10 mg/l <0.2 mg/l as P2O5 Phosphates <0.2 mg/l as SiO2 Silicates <0.25 EU/ml Endotoxins...

  • Page 30: Environmental Product Declaration

    10 ENVIRONMENTAL PRODUCT DECLARATION Stainless steel FD1800 FD1810 Total weight kg / % by weight 100/ 100 105 / 100 Mechanical parts Stainless steel 60 / 60 60 / 57.1 Steel 1 / 1 1 / 0.9 Cast iron 13 / 13 13 / 12.3 Copper 1 / 1...

  • Page 31: End Of Life Disposal

    11 END OF LIFE DISPOSAL WARNING! The product may be contaminated and has to be disinfected before recycling. Equipment that has electrical and electronic components should be disassembled and recycled per Waste of Electrical and Electronic Equipment (WEEE) or in accordance with local or national regulation.

  • Page 32: Symbol Explanation

    12 SYMBOL EXPLANATION Symbol Explanation Warning Warning, hot surface Warning, dangerous voltage Warning, risk of getting stuck Wear protective gloves Wear eye protection Refer to instruction manual/booklet - Instructions for use should be read Name and address of the manufacturer Manufacturing date Use by date Catalogue number...
  • Page 33 Symbol Explanation IP = Ingress Protection, a rating value for the protection against IP21 / IP22 / IP24 mechanical ingress and water ingress IP21 2: Protection against solid foreign objects of diameter 12.5 mm and greater 1: Protection against vertically falling water drops IP22 2: Protection against solid foreign objects of diameter 12.5 mm and greater...
  • Page 34 Figures indicate UK Approved Body supervision. UK Responsible Person & UK Importer: Arjo (UK) Ltd, ArjoHuntleigh House, Houghton Regis. LU5 5XF Is the appointed UK Responsible Person as defined in UK Medical Devices Regulations 2002 (SI 2002 No 618, as amended).

  • Page 35: Electromagnetic Compatibility

    13 ELECTROMAGNETIC COMPATIBILITY Intended environment: industrial electromagnetic environment Guidance and manufacturer’s declaration – electromagnetic emission Emmision test Compliance Guidance This equipment uses RF energy only for its internal functions. Therefore its RF emissions are very low and are not likely to cause any RF emissions CISPR 11 Group 1 interference in nearby electronic equipment.
  • Page 36 Intentionally left blank...
  • Page 37 Intentionally left blank...
  • Page 38 Intentionally left blank...
  • Page 39 AUSTRALIA FRANCE POLSKA Arjo Australia Arjo SAS Arjo Polska Sp. z o.o. Building B, Level 3 2 Avenue Alcide de Gasperi ul. Ks Piotra Wawrzyniaka 2 11 Talavera Road CS 70133 PL-62-052 KOMORNIKI (Poznań) Macquarie Park, NSW, 2113, FR-59436 RONCQ CEDEX...
