MV84X Installation Guide
The Cisco Meraki MV84X is a smart camera designed for easy deployment and configuration through the Meraki
Dashboard and cloud-enhanced edge storage. Part of the MV Smart Camera family, it eliminates the need for complex
and costly servers and video recorders, overcoming common limitations in traditional video surveillance systems.
This is a comprehensive guide for the MV84X camera, detailing its overview, power requirements, dashboard setup, and step-by-step installation instructions.
MV84X Overview

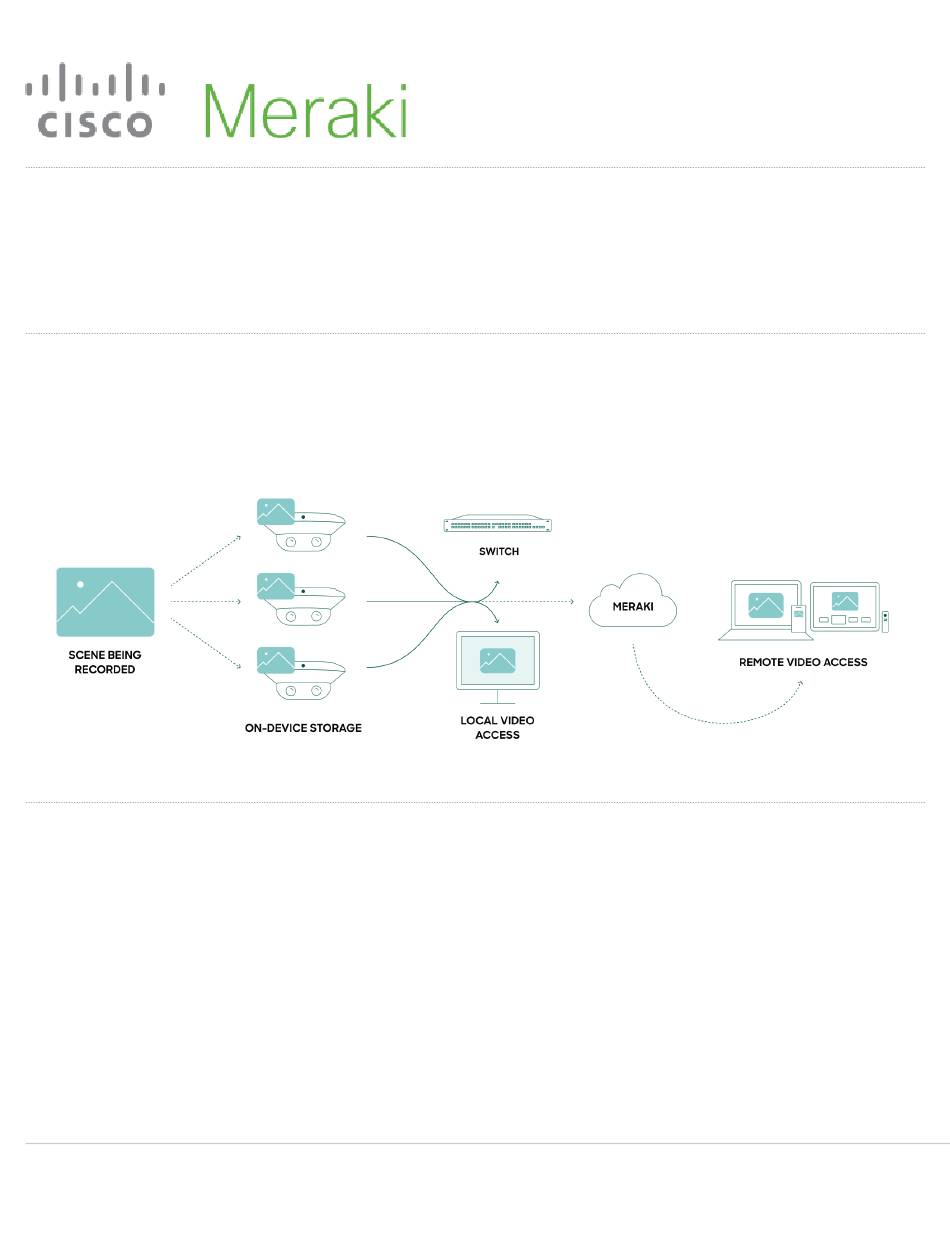

The Cisco Meraki MV84X is a multi-imager smart camera that is exceptionally simple to deploy and configure due to its integration into the Meraki dashboard
and cloud-augmented edge storage. The MV Smart Camera family eliminates complex and expensive servers and video recorders required by traditional
solutions, removing the limitations typically placed on video surveillance deployments.
What's In the Box?
The following items are included with the MV84X.
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Cisco Meraki MV84X
Summary of Contents for Cisco Meraki MV84X
- Page 1 MV84X Overview The Cisco Meraki MV84X is a multi-imager smart camera that is exceptionally simple to deploy and configure due to its integration into the Meraki dashboard and cloud-augmented edge storage. The MV Smart Camera family eliminates complex and expensive servers and video recorders required by traditional solutions, removing the limitations typically placed on video surveillance deployments.
- Page 2 Verify that all contents are present before beginning installation. Item Specification Quantity MV84X Camera Camera Ceiling Base Plate IR Shield...
- Page 3 Item Specification Quantity Installation Template M6x15 Screw M5x30 Screw M5x50 Anchor Dessicant Pack Rubber Gasket (additional) 6.3 - 8.3 mm Secure T10 Torx Screwdriver 26mm C-Socket Wrench Powering the MV84X Camera The MV84X features a 1000BASE-TX Ethernet port and requires 802.3bt Type 3 PoE++ for operation. Route the Ethernet cable from an active port on a Type 3 PoE++ switch or injector.
- Page 4 Check and Configure Firewall Settings If a firewall is in place, it must allow outgoing connections on particular ports to IP addresses. The most current list of outbound ports and IP addresses for your organization can be found under Help > Firewall Info on the dashboard. DNS Configuration Best Practices for LAN Streaming Each camera will generate a unique domain name for secured direct streaming functionality.
- Page 5 • Ensure the screws remain securely in their slots so they don’t fall out during the following steps. Step 2: Rotate and Remove the Dome Cover • After partially loosening the eight perimeter screws in Step 1, gently rotate the dome cover in the direction indicated by the arrow. •...
- Page 6 Step 3: Lift the Dome Housing • After rotating the dome in Step 2, carefully lift the dome housing straight up, as shown by the green arrows.
- Page 7 • The dome is secured to the camera using a cable. Place the dome on the side while keeping the cable attached. • Verify that the internal assemblies (imagers, lenses, etc) remain secure and unobstructed. Important: Avoid touching sensitive components inside the camera. Smudges or debris on the lenses can impact video quality. Step 4: Unlock and Rotate the Camera Base •...
- Page 8 • Turn the camera assembly in the direction of the green arrow to completely disengage the camera from the base plate. Step 5: Detach the Mounting Plate...
- Page 9 • After completing the previous unlock/rotation step (Step 4), ensure the base is in the “unlock” position. • Separate the mounting plate (the large circular piece) away from the main camera assembly, as indicated by the upward arrows. • Place the mounting plate aside safely.
- Page 10 Step 6: Remove or Disassemble the Cable Gland...
- Page 12 • Locate C-Socket Nut on the camera base, this contains the cable gland assembly. • Unscrew the C-socket nut from the base of the camera. Use the provided wrench as needed. • Remove the seal basket (also known as a compression or seal ring) and the rubber gasket. Keep these pieces safe and organized as they will be used later for reinstallation.
- Page 13 Step 7: Mount the Plate and Route the Cable...
- Page 15 • Prepare the Cable Opening ◦ Ensure the hole in the ceiling or wall is large enough for your cable and connectors (e.g., RJ45 plug). ◦ If using anchors, insert them into pre-drilled holes in the ceiling or wall. • Feed the Cable ◦...
- Page 16 Step 8: Position the Camera Body...
- Page 18 • Hook the support cable on the camera assembly into the built-in clamp on the underside of the mounting plate (highlighted in the inset image). • Guide the Ethernet cable through the opening in the camera assembly. ◦ Ensure there is enough slack to comfortably reach the camera’s port without stressing the cable. Step 9: Reattach the Camera Assembly •...
- Page 19 Step 10: Reassemble the Cable Gland • Gather the top cap, compression ring, and bottom insert (the parts you removed earlier in Step 6). • One by one, guide the components up the cable in the correct order: ◦ The bottom rubber gasket. ◦...
- Page 20 Step 11: Power On and Verify Network Connection • Align the RJ45 connector with the camera’s Ethernet port. ◦ Push it in firmly until you hear or feel the latch click into place. • Ensure the power source is Type 3 PoE++ (802.3bt). •...
- Page 21 Step 12: Adjust the Camera Angle and Orientation...
- Page 23 • Once the live view is available, the lenses can now be correctly aimed as needed by following these steps: ◦ Move the camera imager vertically to capture more ceiling or floor as needed. ◦ Rotate the lens horizontally on the 360 track to aim the lenses at the areas of interest. ◦...
- Page 24 Step 13: Replace the Desiccant Packets • The MV84X ships with pre-installed desiccant packs to ensure the camera is moisture-free during transit and installation, these packs must be removed...
- Page 25 and replaced with a fresh set of desiccant packs provided in the box. • Remove the two desiccant packs and identify the designated spots inside the camera assembly where the desiccant packets should be placed. • Find the two new desiccant packs and remove it from its silver colored protective pouch. ◦...
- Page 26 Step 14: Reattach the Dome Cover • Hold the dome cover (the large outer shell) and position it so the alignment markers match up with the camera assembly. • You will see small arrows on the dome and camera base indicating the correct orientation. •...
- Page 27 • Using the T10 torx security-bit screwdriver, turn each screw clockwise until it’s snug. • Tighten them in a star or alternating pattern to ensure even pressure (e.g., top-left, then bottom-right, etc.). Avoid Over-Torquing. • Stop once you feel moderate resistance as over-tightening can strip threads. •...
- Page 28 Step 15: Attach the IR Shield...
- Page 29 • Hold the Infrared (IR) shield below the camera dome, orienting it so the cutout matches the dome’s contours (Cisco logo). • Slide or push the shield onto the dome until it seats snugly around the camera housing. ◦ You should hear four clicks from the corner of the IR Shield.
