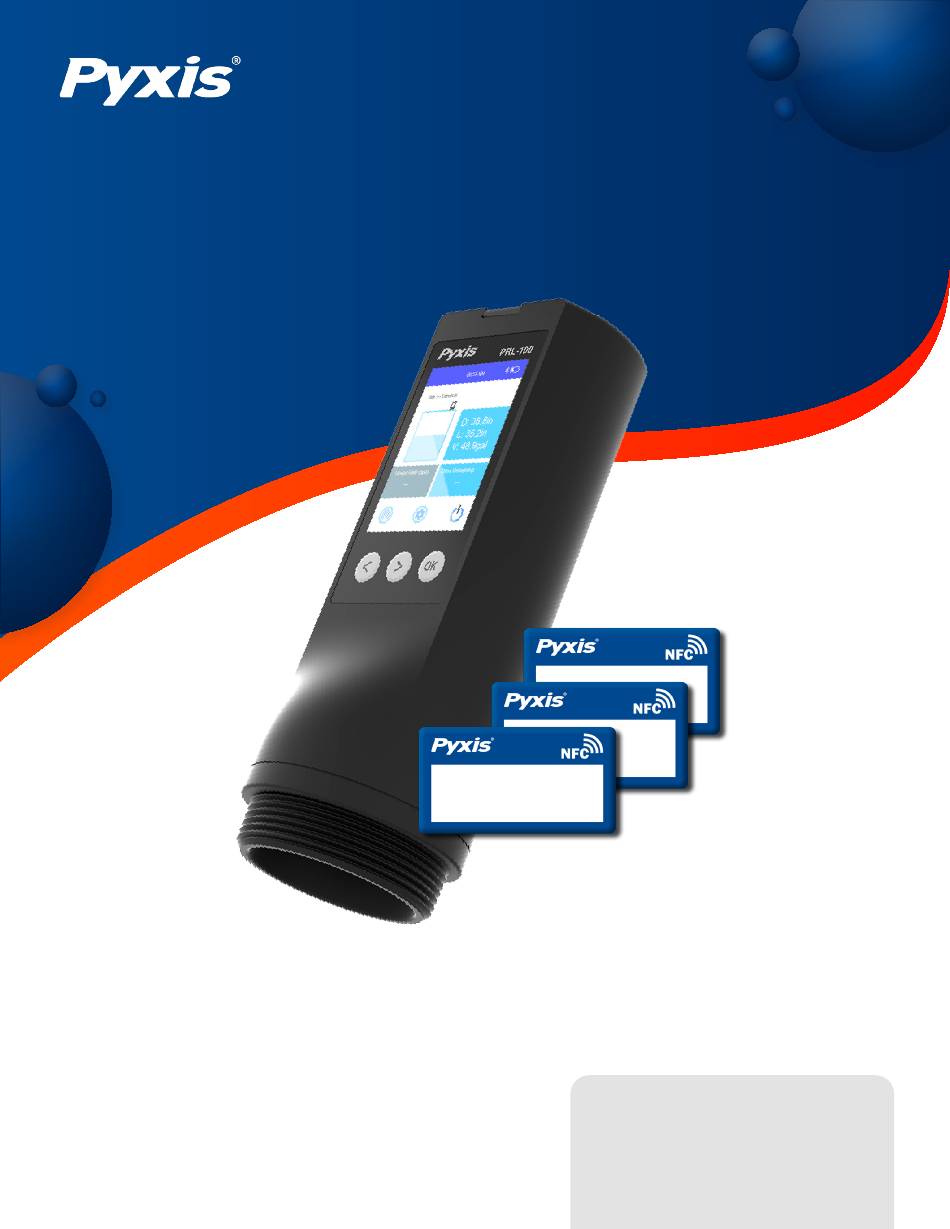

- Page 1 PRL-100 PERSONAL Radar Level Sensor Near-Field Communication Tag Scanner with LoRa Capability Pyxis Lab, Inc. 21242 Spell Circle Tomball, TX 77375 USER GUIDE +1 (866) 203-8397 www.pyxis-lab.com...
- Page 2 ® INVENTORY TRACKING with PRL-100 The PRL-100 personal radar level sensor is perfect for tracking chemical inventory. It quick- ly measures levels in about 10 seconds and lets you identify each tank or container with an NFC (Near Field Communications) tag. It also provides key data, including chemical usage rates and days remaining before the tank is empty.
- Page 3 2.0 app ® ® and the PRL-100. You can program tank or container information into the NFC tag using the uPyxis® 2.0 app before taking a level measurement. To prepare your NFC tag, open the uPyxis 2.0 app on your smartphone, tap the ‘Tools’...
- Page 4 PREPARING YOUR NFC TAG, Cont. The app will display NFC Card is Empty if this is a new NFC tag, otherwise data already saved to the tag will be read out and displayed on the app. Fig 3. Prepare NFC Tag Fig 4.
- Page 5 Please scan the NFC tag every time before making a level measurement. Simply hold the head of the PRL-100 close to the tag and the PRL-100 will automatically read the tank/con- tainer information as shown in the figure below. Click the ‘OK’ button to confirm the tank settings and continue with the reading.
- Page 6 Take a Level Measurement Hold the PRL-100 with one hand and place it vertically against the top surface of the tank if the tank is made of plastic such as PVC, PP or HDPE. The PRL-100 will display an indica- tion...
- Page 7 Take a Level Measurement, Cont. As shown in Figure 11, the PRL-100 has a thread on the bottom of the device. If the tank you are monitoring is made of a metal, such as stainless steel, make sure to screw the PRL- 100 into the top of the tank for proper measurements.
- Page 8 ‘Read Last 100 Data Records’ to only read the last 100 data points as shown in Figure 16. Click ‘Export’ to share the readout data as a .CSV file through email or any other apps. Fig 15. Read Log Info Fig 16. Read Log Data © 2025 Pyxis Lab, Inc.
