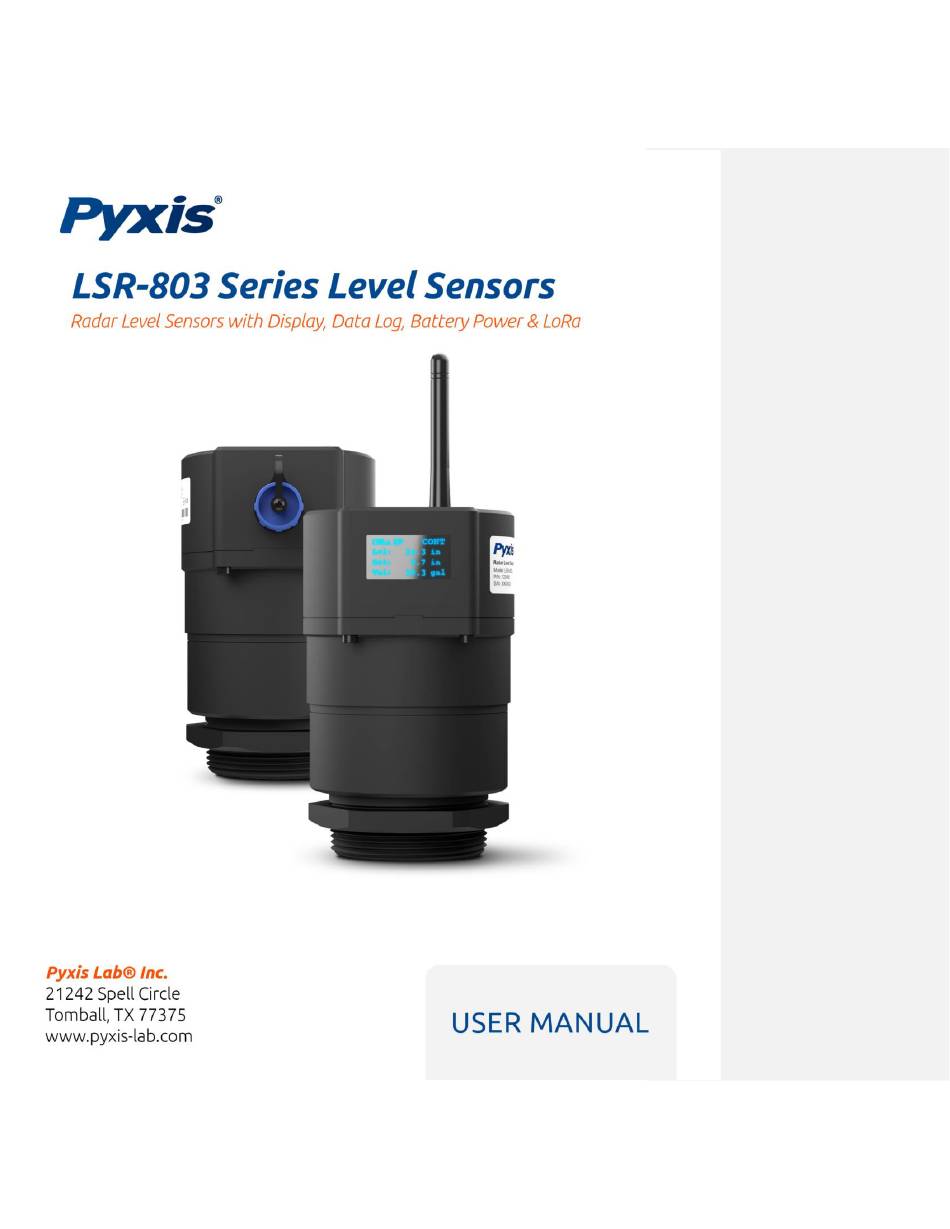

  • Page 1 LSR-803 Series Sensor Operation Manual October 15, 2023 Rev. A...
  • Page 2 A Repair Material Authorization Number (RMA) must be obtained from Pyxis Technical Support before any product can be returned to the factory. Pyxis will pay freight charges to ship replacement or repaired products back to the customer. The customer shall pay freight charges for returning products to Pyxis. To receive an RMA you can generate a request on our website at https://www.pyxis-lab.com/request-return-...

  • Page 3: Table Of Contents

    Table of Contents Introduction ............................4 Specifications ............................4 Unpacking Instrument ........................... 5 Standard Provided Accessories ....................5 Optional Accessories ........................5 Installation ............................. 6 Battery Installation or Replaced ....................6 Wiring ............................7 Tank Top Installation and Precautions ..................8 Instrument Overview ..........................

  • Page 4: Introduction

    RS485 and BlueTooth 5.0®. The LSR-803L is also equipped with LoRa (Long Range Radio) digital output for long-distance wireless level sensor data access. The LSR-803 Series has a 1.3” OLED display and 4 buttons for quick configuration and can be wirelessly configured via the Pyxis uPyxis®...

  • Page 5: Unpacking Instrument

    Remove the instrument and find the standard accessories from the shipping container as listed below. Inspect each item for any damage that may have occurred during shipping. Verify that all accessory items are included. If any item is missing or damaged, please contact Pyxis Lab Customer Service at service@pyxis-lab.com or by phone at 1-866-203-8397.

  • Page 6: Installation

    4.1 Battery Installation or Replaced The LSR-803 series sensor may be powered by four (4) AA alkaline batteries if not being used in a 24 VDC powered format from a controller. It is very important that you do not use rechargeable nickel cadmium (NiCad) or lithium batteries.

  • Page 7: Wiring

    4.2 Wiring The LSR-803 Series level sensors can be powered by a 24V DC power supply from any standard controller, PLC or DCS. The sensors offer both 1x 4-20mA and 1x RS-485 Modbus outputs. The 24V DC negative (black wire) and 4-20mA- wire are internally connected from the LSR-803 Series sensor therefore it is unnecessary to connect the green to the 4-20 mA negative terminal in the controller.
  • Page 8 4.3 Dimensions LSR-803 Dimension LSR-803L Dimension Figure 2. LSR-803 Series Dimensions, inch (mm)

  • Page 9: Tank Top Installation And Precautions

    The sensor has a 1.97 inch (5 cm) dead zone (DZ). Raise the probe to avoid the DZ as needed. • Do not install in a location which will cause the microwave to be obstructed. Top of Tank Installation Suggestions Figure 3. LSR-803 Series Installation Illustration...
  • Page 10 The following mounting kits are available as optional accessories (sold separately) for a variety of installation formats, ideal for portable/replaceable tank and drum liquid level monitoring. For the LSR Series Mounting Kit Installation Guide please contact service@pyxis-lab.com WALL Mount Kit LSRMB-W001 (P/N 24658) Wall Mounting for LSR-803 Series...
  • Page 11 HANGING Mount Kit LSRMB-H002 (P/N 29634) Hanging (Suspended) Mounting for LSR-803 Series...
  • Page 12 BELT Mount Kit LSRMB-B001 (P/N 23220) Belt Mounting for LSR-803 Series on Drum or Tote...

  • Page 13: Instrument Overview

    5 Instrument Overview 5.1 LED Indicators The LED indicators on the top of the sensor (Figure 4) are used to indicate sensor status and BlueTooth 5.0® connection status. LED Status Green LED Power Supply is ON and Sensor is running Power Supply is OFF or in Sleep Mode Blue LED BlueTooth 5.0®...

  • Page 14: Function Button

    5.2 Function Button Power Button: • Power On: Hold the power button for 1 second. • Power Off: Hold the power button until the Power Status Indicator blinks. • Display Wakeup: Hold the power button for 1 second to relight OLED display (Only power button has this function) NOTE: Power On/Off function is only for Battery-Powered mode, if external 24V power supply is used, the sensor will power up automatically.

  • Page 15: Oled Display

    Strength Indicator of Received Radar Echo Signal Gallon 1.0h Measurement Interval = 1 Hour Inches FULL Liquid Level Reaches Highest Setting Value Product MAC Address BTSV Bluetooth Product Firmware Federal Communications Commission Error Code NOTE - The LSR-803 series contains Transmitter Module FCC-ID:2BAJ2-LSR...

  • Page 16: Setup With Upyxis 2.0 Mobile & Desktop Apps

    LS-803 series sensor, the uPyxis 2.0 APP will do the pairing. *NOTE* Make sure the LSR-803 series is in Peripheral (P) Mode if you desire to configure the sensor. For tank level reading only, the unit may remain in Beacon (B) Mode.

  • Page 17: Parameter Setting Via Upyxis Mobile App

    Parameter Setting via uPyxis Mobile App There are three-tab pages on the main screen as showed below. After connected, Mobile App will display Trend Chart screen. User can click on Overview tab to check more measurement information. And Configuration Tab is for user to change the settings of the sensor if needed. Figure 6.
  • Page 18 Figure 7. Sensor Configuration...

  • Page 19: Install Upyxis Desktop App

    Connect the sensor to a Windows computer via Windows System Bluetooth (Win10 or above) according to the following steps: Make sure the LSR-803 series is in Peripheral (P) Mode if you desire to configure the sensor. For tank level reading only, the unit may remain in Beacon (B) Mode.
  • Page 20 Figure 9. Connect uPyxis desktop app to LS-803 Series Radar Level Sensor Figure 10. uPyxis Live Display After Connection to LSR-803L Series Sensor...

  • Page 21: Parameter Setting Via Upyxis Desktop App

    *NOTE* Please make sure that the difference between the installation height and the maximum level height is greater than 1.97 inches, the sensor dead zone. For horizontal or other tanks that have a non-uniform cross section, please contact Pyxis Technical Support team (service@pyxis-lab.com) for assistance.
  • Page 22 Figure 11. Illustration of terms and tank capacity setup Figure 12. Display Unit Dropdown Selection...
  • Page 23 Figure 13. Click apply settings button to save the settings Click Reading menu to display real-time measurement data in a trend chart (Figure 14). Figure 14. Level Trend Chart...

  • Page 24: Ma Output Setup

    Figure 15. Firmware Upgrade 6.7 4-20 mA Output Setup The 4-20 mA output of the LSR-803 series sensor will be scaled as outlined below following user configuration via uPyxis. 4 mA = (Tank is Empty) = (Level is 0) = (Distance is Installation Height), 20 mA = (Tank is Full) = (Level is maximum height) = (Distance is Installation Height –...

  • Page 25: Communication Using Modbus Rtu

    The LoRa gateway acts as a bridge between the sensor and the Internet or Controller, and it can communicate with many sensors at the same time. Pyxis Lab LoRa embedded 4G Gateway is currently in the final stages of development. Contact service@pyxis-lab.com...

  • Page 26: Monitoring Reagent Consumption

    The values on the screen are refreshed during the filling process. When liquid level is higher than the max height minus 5cm, the screen will begin blinking to remind the user that the filling process is near completion. The blinking will stop after 1 minute automatically or if the liquid level is lower than the max height minus 10cm.

  • Page 27: Regulatory Appoval

    L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible Contact Us Pyxis Lab, Inc. 21242 Spell Circle Dr. Tomball, TX 77375 USA www.pyxis-lab.com / service@pyxis-lab.com...
