Symphony SYK-3001 Setup Instructions

10' x 30' portable display

Advertisement

© 2025
Order #XXXXX

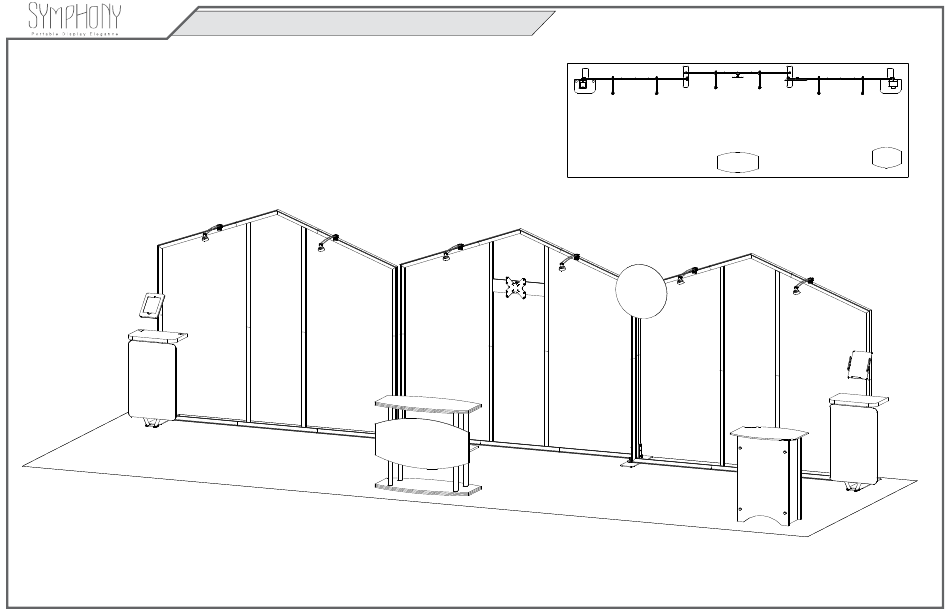

SYK-3001 - 10' x 30' Portable Display
10'
30'
Plan View
SETUP INSTRUCTIONS
If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SYK-3001 and is the answer not in the manual?

Questions and answers

Summary of Contents for Symphony SYK-3001

  • Page 1 © 2025 Order #XXXXX SYK-3001 - 10’ x 30’ Portable Display 10’ 30’ Plan View SETUP INSTRUCTIONS If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com...
  • Page 2: Plan View

    © 2025 Order #XXXXX Plan View = 1 sq foot...
  • Page 3: General Setup Instructions

    © 2025 Order #XXXXX General Information General Setup Instructions WARNING - Read entire setup instruction manual prior to unpacking parts and pieces. - The setup instructions are created specifically for this configuration. - Setup instructions are laid out sequentially in steps, including exploded views with detailed explanation for assembly.
  • Page 4 © 2025 Order #XXXXX TSP49 Frame Assembly Slide connector across seam of extrusions. Disassembly Tighten all knobs. Straight Connection 1) Loosen all knobs. When assembling frame, first attach all straight Straight Connector 2) Slide connectors off of one extrusion. connectors, then attach corner connectors.
  • Page 5 © 2025 Order #XXXXX SEG Installation The Perfect Fit SEG Graphic Installation in 3 Steps STEP 1: Attach Corners STEP 2: Attach Middle STEP 3: Attach Sides Always insert graphic into each alternate corner, then into the sides of the frame. Otherwise the graphic will not fit into the frame correctly.
  • Page 6 © 2025 Order #XXXXX Case Packing Top View of Each Level 8,10 11,11 12,12 Graphics Counter Legs Lights Setup Hardware Workstation Counter Graphic iPad Mount Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 (Bottom level) Crate 1 of 5...
  • Page 7 © 2025 Order #XXXXX Case Packing Top View of Each Level 8,10 11,11 12,12 Graphics Lights Setup Hardware Monitor Mount Level 1 Level 2 Level 3 Level 4 (Bottom level) Crate 2 of 5...
  • Page 8 © 2025 Order #XXXXX Case Packing Top View of Each Level 8,10 11,11 12,12 Graphics Counter Floating Legs Lights Graphic Setup Hardware Workstation Counter Graphic Literature Tray Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 (Bottom level) Crate 3 of 5...
  • Page 9 © 2025 Order #XXXXX Case Packing Top View of Each Level Shelf Left & Right Front Panel DoorPanel Side Shelf Counter Top Panels Supports Floor Standoffs & Key Level 4 Level 5 Level 1 Level 2 Level 3 (Bottom level) Crate 4 of 5...
  • Page 10 © 2025 Order #XXXXX Case Packing Top View of Each Level Setup Hardware Graphic Counter Floor Shelf Legs Legs Level 1 Level 2 Level 3 Level 4 (Bottom level) Crate 5 of 5...
  • Page 11: Front View

    © 2025 Order #XXXXX Left Backwall Frame Assembly Item Qty. Description Steps: 45”h TSP49 Vertical Extrusion Refer to the Tool-less Frame Assembly general information page. 30.091”h TSP49 Vertical Extrusion 45”h TSP49 Vertical Extrusion 1) Assemble vertical extrusions [1-2], [3-4], [11-12] & horizontals [5-6-7], [8-9-10] 30.091”h TSP49 Vertical Extrusion together, using Tool-less Spline Connectors...
  • Page 12 © 2025 Order #XXXXX Middle Backwall Frame Assembly Item Qty. Description Steps: 45”h TSP49 Vertical Extrusion Refer to the Tool-less Frame Assembly general information page. 30.091”h TSP49 Vertical Extrusion 45”h TSP49 Vertical Extrusion 1) Assemble vertical extrusions [1-2], [3-4], [11-12] & horizontals [5-6-7], [8-9-10] 30.091”h TSP49 Vertical Extrusion together, using Tool-less Spline Connectors...
  • Page 13 © 2025 Order #XXXXX Right Backwall Frame Assembly Item Qty. Description Steps: 45”h TSP49 Vertical Extrusion Refer to the Tool-less Frame Assembly general information page. 30.091”h TSP49 Vertical Extrusion 45”h TSP49 Vertical Extrusion 1) Assemble vertical extrusions [1-2], [3-4], [11-12] & horizontals [5-6-7], [8-9-10] 30.091”h TSP49 Vertical Extrusion together, using Tool-less Spline Connectors...
  • Page 14 © 2025 Order #XXXXX Frames Connection Steps: Base Plate Attachment 1) Connect left & right frames to base plates of middle frame, 1) Place key hole over bolt as shown. See Base Plate Attachment detail. on panel & slide down. 2) Twist knob to secure connection.
  • Page 15 © 2025 Order #XXXXX SEG Graphics Steps: Refer to the SEG Installation general information page. 1) Apply SEG graphics to front of assembled frames as shown. When assembled S E G G ra ph ic S E G G ra ph ic S E G G ra ph ic Step 5 of 10...
  • Page 16: Top View

    © 2025 Order #XXXXX Backwall Attachments Steps: Workstation Bracket Attachment 1) Attach Workstation Mounting Bracket Hook the Mounting Bracket Slide bracket forward, then Tighten thumb screws to to backwall vertical as shown. over the vertical extrusion. down onto V4 connector. secure connection to inside Workstation Bracket Attachment detail.
  • Page 17 © 2025 Order #XXXXX Backwall Attachments (cont’d) iPad Swivel Mount Attachment Slide bracket over Tighten knobs of V4 connector Attach iPad Mount to angled V4 connector on to secure bracket in place. extrusion of bracket; tighten vertical extrusion. knob to secure lock. Bracket Slide Bracket...
  • Page 18 © 2025 Order #XXXXX Backwall Attachments (cont’d) Steps: Monitor Mount Attachment 1) Attach Monitor Mount to backwall horizontal as shown. A ttach Monitor Mount Monitor Mount Attachment detail. back piece to extrusion 2) Connect Floating Graphic to backwall using using bolts & wing nuts. brackets.
  • Page 19 © 2025 Order #XXXXX SYM-406 Counter Assembly Steps: 1) Attach pins at bottom interior of side panels. Note: Pins are designed to be slightly angled. 2) Use screw caps to secure side panels to front & back panels. 3) Slide floor into the bottom of assembled pedestal base. The floor will sit on pins of the side panels. 4) Connect shelf supports with Velcro inside of panels, then place shelf on top of supports.
  • Page 20 © 2025 Order #XXXXX SYM-411 Counter Assembly Item Qty. Description Steps: 16.732”h aluminum Leg (lower) Note: Assemble counter upside-down. 16.732”h aluminum Leg (lower w/ Velcro) 16.732”h aluminum Leg (upper) 1) Attach upper legs to underside of Counter Top. Twist to tighten. 16.732”h aluminum Leg (upper w/Velcro) 2) Connect lower Legs through Counter Shelf to upper Legs, as shown.
