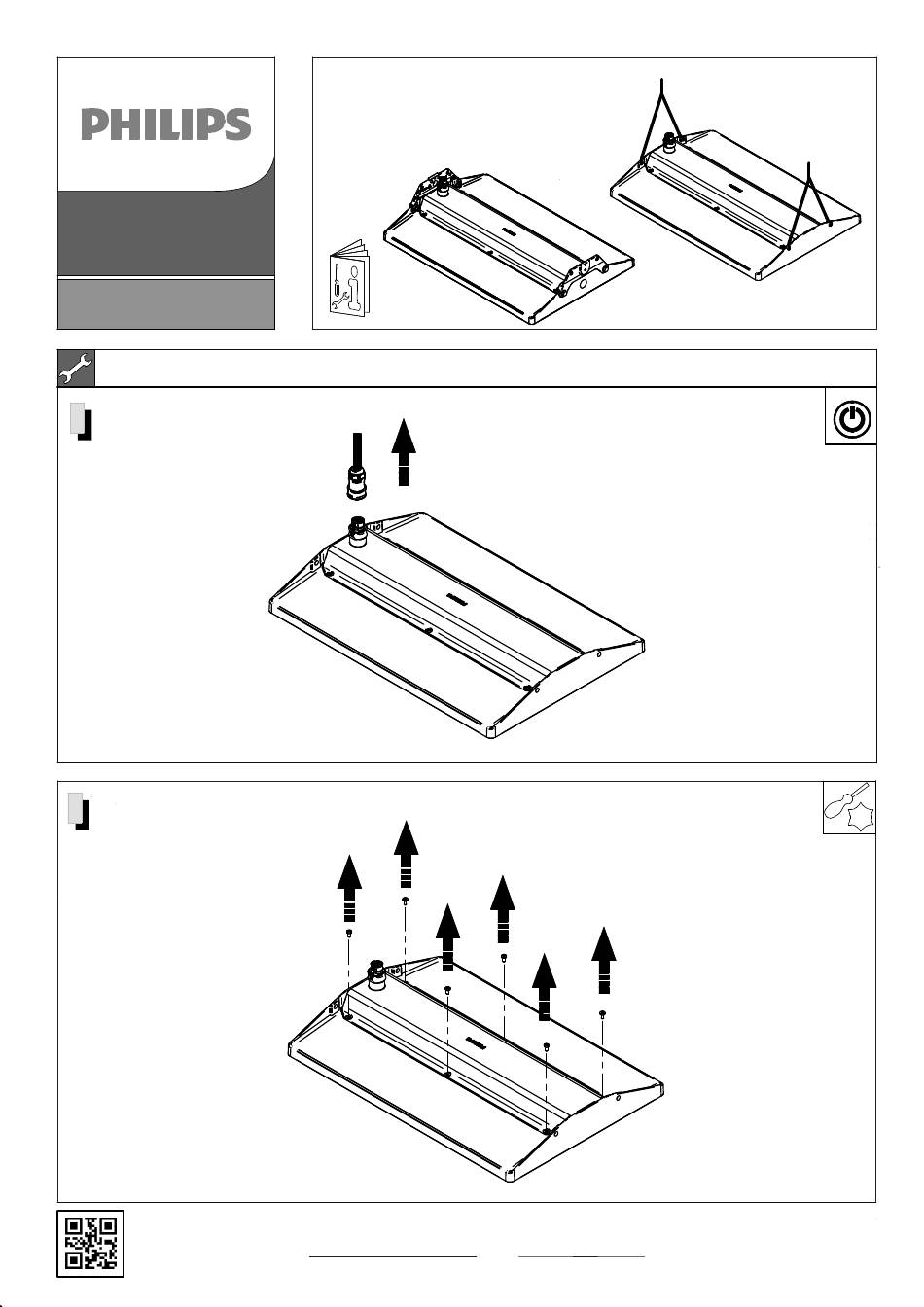

GentleSpace gen4
Disassembly instruction
BY580P, BY581P, BY580X, BY581X
BY582P, BY583P
Driver replacement
1
Disconnect the supply cable
2
Unscrew the cover screws - 6 pcs
511 - 444316028841
2024-10
© Signify Holding
All rights reserved
Bracket version
1/10
Suspended version
For screwing back
please use torque : 3Nm
Printed in Hungary
Data subject to change without notice
Keep for future reference: www.philips.com/lighting
OFF
T
25
Advertisement
Related Manuals for Philips GentleSpace gen4
Summary of Contents for Philips GentleSpace gen4
- Page 1 Unscrew the cover screws - 6 pcs For screwing back please use torque : 3Nm 511 - 444316028841 Printed in Hungary 2024-10 Data subject to change without notice © Signify Holding 1/10 Keep for future reference: www.philips.com/lighting All rights reserved...
- Page 2 Remove driver cover Disconnect wires from the driver Use thin pin for disconnecting the wires LED+ LED+ LED- LED- 2/10...
-
Page 3: Led Replacement
Remove driver screws - 2 pcs, and the driver For screwing back please use torque : 1,2Nm For the assembly, please follow the steps backward LED replacement Remove the glass screws - 6pcs For screwing back please use torque : 2Nm 3/10... - Page 4 Note: Remove the glass Place cover on a flat and clean surface to avoid any breakage of scratches For the reassembly the following components, do not forget to replace the old washers with the new ones. These components are included in the spare parts. Remove the optics screws - each optic has 8 screws For screwing back please use torque : 1,2Nm...
- Page 5 Remove the optics - For BY580P, BY580X - 2 pcs For BY581P, BY581X - 4 pcs Note: Do not use any sharp objects to lift optics Disconnect all the LEDs wires 5/10...
-
Page 6: Spare Parts
Note: Remove the LEDs For BY580P, BY580X- 2 pcs Do not use any sharp For BY581P, BY581X - 4 pcs objects to lift LEDs For the assembly, please follow the steps backward Spare parts For the latest Service parts list, always refer to Signify Service tag via QR code on the luminaire. Attention BY582P, BY583P (ATEX 2/22) versions are not allowed to be serviced by customer at location. - Page 7 Informați-vă cu privire la sistemul local de colectare, separare și Please inform yourself about the local waste disposal, separation and eliminare a deșeurilor pentru produsele electrice și electronice și collection system for electrical and electronic products and packaging. ambalajele acestora. Acționați în conformitate cu regulile locale și nu Please act according to your local rules and do not dispose your old eliminați produsele vechi și ambalajele împreună...
- Page 8 Hold dig orienteret om den lokale affaldsordning, -sortering og - Zistite si informácie o miestnej likvidácii odpadu, systéme separovaného indsamling for elektriske og elektroniske produkter og emballage. Følg zberu elektrických a elektronických výrobkov a obalov. Postupujte v de lokale regler, og bortskaf ikke dine udtjente produkter og emballage súlade s miestnymi predpismi a nevyhadzujte staré...
- Page 9 The light source and/or control gear and/or the external flexible cable contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person. La fuente de luz/o el driver / o el cable flexible contenido en la luminaria solo podrá ser sustituido por el fabricante o su agente de servicio o por una persona cualificada.
- Page 10 The information presented in this document is not intended as any commercial offer and does not form part of any quotation or contract. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V..
