Outdoor PIR Motion Sensor Camera (VST-894)
VST-894 is an outdoor passive infrared (PIR) motion sensor camera. It is capable of sending wireless signals and captured
images (picture quality of up to 1280 x 720 pixels) to the Control Panel upon movement detection.
Featuring night illumination capability, with UV resistant housing, and waterproof to IPX5 standard, VST-894 is ideal for
backyards, lawns, gates, outdoor corridors and hallways.
The outdoor PIR Camera is designed to give a typical detection range of 12 meters by 90 degrees wide. The flexible PIR
distance limit is adjustable to 5 levels (12M, 8.5M, 6M, 3.5M, 2.5M); the suggested mounting height is 0.8-1.2M. Featuring pet
immunity, the PIR Camera can prevent false alarms triggered by pets or small to medium size animals (up to 25 kg).
Besides, VST-894 is designed with the digital proximity detector. The anti-masking feature allows for detection of any attempts
to blind the detector by placing objects in its field of view.
VST-894 is also compatible with Climax's Repeater RP-29/Router RMB-29, which can further extend the RF communication
range into hard-to-reach areas.
The VST-894 Series includes the following models:
VST-894 – PIR motion sensor camera with flash LED
VST-894-IL – PIR motion sensor camera with Infrared LED
I
I
d
d
e
e
n
n
t
t
i
i
f
f
y
y
i
i
n
n
g
g
t
t
h
h

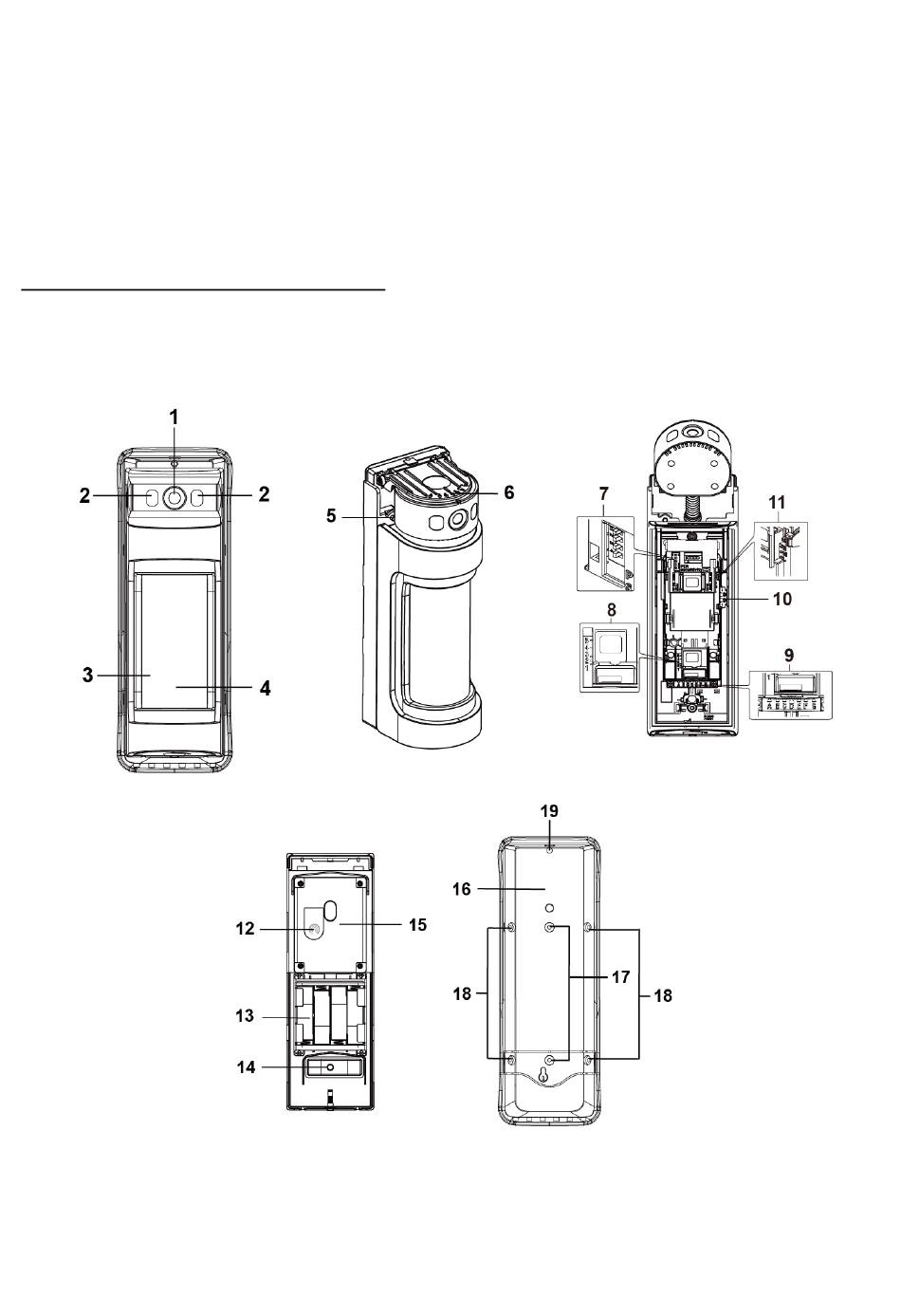

Front View
1. PIR Camera Lens
2. Flash LED / Infrared LED
The Flash LED (VST-894) or Infrared LED (VST-894-IL) delivers sufficient light for image capture under low lighting
condition.
3. IR LED Indicator (Red)
4. IR Sensor
The sensor is intended to detect moving objects.
e
e
P
P
a
a
r
r
t
t
s
s
(Camera face cover removed)
Back View
Side View
1
Internal View
Advertisement
Related Manuals for Climax VST-894
Summary of Contents for Climax VST-894
- Page 1 Outdoor PIR Motion Sensor Camera (VST-894) VST-894 is an outdoor passive infrared (PIR) motion sensor camera. It is capable of sending wireless signals and captured images (picture quality of up to 1280 x 720 pixels) to the Control Panel upon movement detection.
- Page 2 11. PIR Sensitivity Selector 12. Test & Learn Button - Press and hold the button for 3 seconds to send a learn code, and then release the button when VST-894 LED Indicator (Red) lights up. - Press the button once to send a learn code to the repeater/router.
- Page 3 Please refer to the DIP Switch Settings and Remote Settings sections for details. Under normal operation mode, when a masking event is detected, and the masking condition lasts for 3 minutes, VST-894 will send a masking alarm signal to the Control Panel to notify user of the masking condition. ...
- Page 4 PIR Area Direction & Camera Direction Adjustment The angles of both the camera module and the IR sensor can be adjusted in 7 levels from A to G. The angle of the camera and the angle of the PIR sensor must be consistent to ensure optimum coverage. For ...
- Page 5 Dip Switch Settings & PIR Sensitivity Setting The functions of each DIP Switch and the PIR sensitivity selector are listed in the tables below. After Dip Switch and PIR sensitivity settings are changed, please remove batteries, and then re-insert batteries to power on the PIR Camera. The device will operate with new settings after re-powered on.
- Page 6 Put the Control Panel into learning mode; refer to Control Panel manual for details. Press and hold the Test button for 3 seconds to send a learn code, and then release the button when VST-894 Red LED lights up. The LED will be on for 20 seconds at most, indicating the PIR Camera is in learning mode.
- Page 7 Use the panel’s Edit Device function to change PIR Camera area setting. Press and hold the Test button for 3 seconds on the PIR Camera to send a signal to the panel, and then release the button when the VST-894 Red LED lights up. ...
- Page 8 1) Assemble the PIR Camera and tighten the flat-tailed top fixing screw. 2) Align the arc part of the Mylar tape to the arc part of the bottom of VST-894; apply the Mylar tape to the bottom to provide stronger hold and fixation.
- Page 9 1) Use the mounting bracket as a template to drill 4 holes into the surface of the corner. 2) Push in the wall plugs and screw the mounting bracket on the wall. 3) Hook VST-894 on the hooks of the mounting bracket and push downwards until you hear a click sound. <...
- Page 10 It is recommended to install the PIR Camera in the following locations: At a height of 0.8 to 1.2 m (2′7″ to 4′) above ground level, where an intruder would normally move across the PIR Camera’s field of view. When installed in the corner (45 degrees), the PIR &...
- Page 11 Please install the PIR Camera straight up. Do not tilt it. Do not install the motion sensor camera at places where objects such as trees and laundry are moved by the wind, which may block the motion sensor camera’s field of view. Clear all light-reflecting surfaces from the detection area, as well as water puddles.
