Outdoor PIR Motion Sensor Camera 862EX-F1

862EX-F1 is a passive infrared (PIR) motion sensor camera. It is capable of sending wireless signals and captured images
(picture quality of up to 640 x 480 pixels) to the Control Panel upon movement detection.
The PIR Camera is designed to give a typical detection range of 12 meters when mounted at 2 meters above ground.
The Camera also features night illumination capability and F1 technology that accelerates signal transmission speed.
I
d
e
n
t
i
f
y
i
n
g
t
h
I
d
e
n
t
i
f
y
i
n
g
t
h

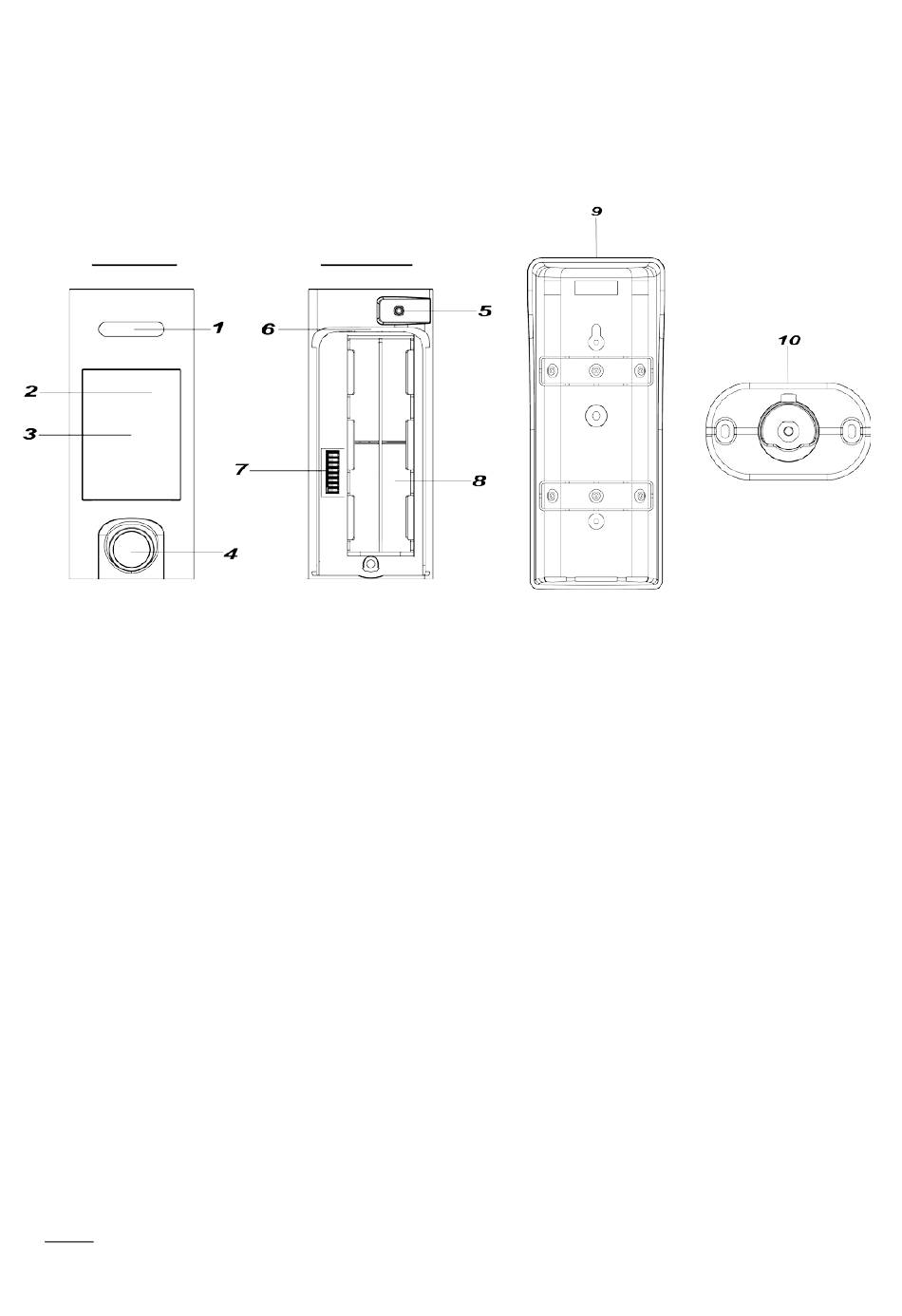

Front View
1. Infrared LED
The Infrared LED is activated when the PIR Camera is triggered under low light condition to allow picture capture in
the dark.
2. LED Indicator (Red)
The LED indicator is used to indicate the system status.
3. IR Sensor
The sensor is intended to detect moving objects.
4. PIR Camera Lens
5. Test&Learn Button
-Press and hold the button for 3 seconds to send a learn code, and then release the button when Red LED lights up.
-Press the button once to enter test mode for 10 minutes.
6. Internal Tamper
7. DIP Switch Block
There are 8 DIP Switches for setting the function & detection sensitivity levels.
8. Battery Compartment
9. Mounting Bracket
10. Rotating Holder
L
E
D
I
n
d
i
c
a
t
o
r
L
E
D
I
n
d
i
c
a
t
o
r
When enabled, the LED Indicator will light up in the following conditions:
When the Tamper Switch is triggered, the LED will flash for 6 times to indicate it is transmitting "Tamper" signal.
When the PIR Camera is in fault conditions (tamper open or low battery condition persists), each time it transmits a
detected movement, the LED will flash for 6 times.
After the Test button is pressed once to enter Test Mode, the LED will flash for 60 seconds to indicate that the PIR
motion sensor camera is warming up.
In Test mode, the LED will turn on for 2 seconds whenever a movement is detected.
<
N
O
T
E
>
<
N
O
T
E
>
The LED indicator can be enabled by setting the DIP Switch2 to ON position. Please refer to DIP Switch Position
Table for details.
e
P
a
r
t
s
e
P
a
r
t
s
Inside View
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 862EX-F1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Climax 862EX-F1

  • Page 1 Outdoor PIR Motion Sensor Camera 862EX-F1 862EX-F1 is a passive infrared (PIR) motion sensor camera. It is capable of sending wireless signals and captured images (picture quality of up to 640 x 480 pixels) to the Control Panel upon movement detection.
  • Page 2   When the alarm system is armed, the PIR Camera will capture 1, 3 or 6 alarm images in 640 x 480 or 320 x 240 resolutions (programmable from Control Panel) upon movement detection. You can also manually request the PIR Camera to take a picture through the Control Panel.
  • Page 3 Push in the plugs and fix the mounting bracket on the wall with the screws (Picture2). Mount 862EX-F1 with the hooks of the mounting bracket latched on the back cover of the 862EX-F1, and then push downwards until you hear a click sound (Picture3).
  • Page 4 2) Fix the mounting bracket on the swivel ball with the fixing screw secured through the foolproof design hole (Picture5). 3) Mount 862EX-F1 with the hooks of the mounting bracket latched on the back cover of the 862EX-F1, and then push downwards until you hear a click sound (Picture6).
  • Page 5 The PIR Camera has a detection range of 10M when mounted 2m above ground. < > < >   When PIR Camera is mounted with rotating holder, it will not have the regular detection area (as in below diagram), or the typical pet immue range. 862EX-F1 Detection Range...
  • Page 6 Limitations:  Do not install the PIR Camera completely exposed to direct sunlight.  Do not install in areas with rapid change of temperature, e.g. air conditioner, heater.  Avoid large obstacles in the detection area.  Do not point directly at sources of heat, such as fires and boilers, or install above radiators. ...
