AUDAC MBK106V Installation Manual

MBK106V
The MBK106V mounting bracket is specially designed for mounting the VEXO106 speaker. This optional clever
U-brackets allow the easy installation of the VEXO106 both horizontally and vertically. Thanks to the dual slotted
design, the VEXO106 can be mounted two different positions. The rear slot provides an installation closer to the
mounted surface that gives clear and neat impression.

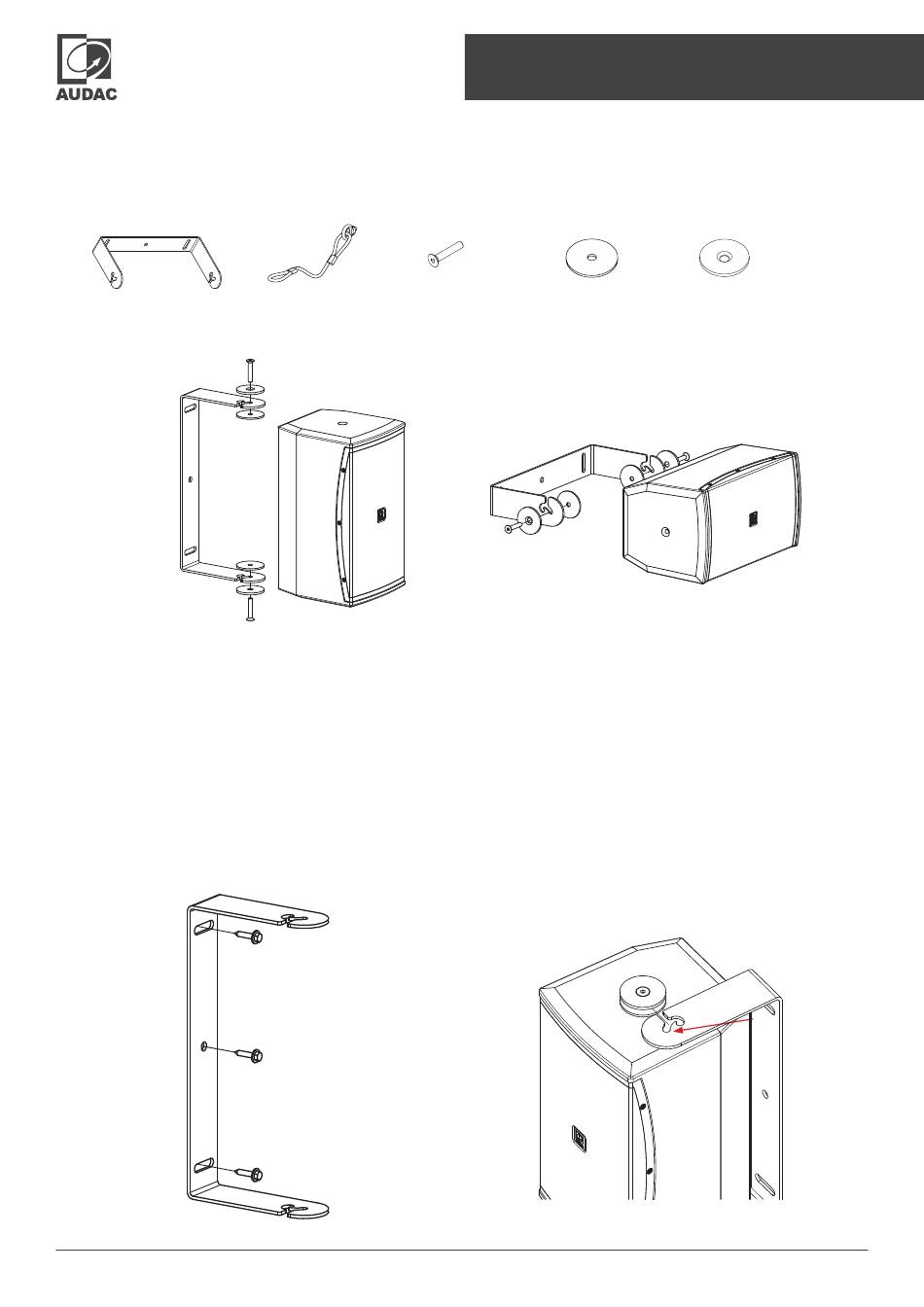

Included hardware:
U-bracket
Installation:
Step 1:
Mount the U-bracket at a designated location on the wall
or ceiling.
The screws are inserted into the holes provided on the
bracket. Use the correct fasteners for the surface on
which the bracket is to be mounted.
Caution:
Choose fasteners that are consistent with all local build
codes and requirements to support the weight of the
loudspeaker.
MBK106V installation manual - V1.0
M8 screws with
Drop safety wire
washers
Installation manual
x2
x2
Rubber washer
Step 2:
Insert the M8 bolts through the rubber and metal washers
and into the center threaded holes (top and bottom).
The U-bracket will be placed between those rubber
washers and speaker should be placed to the desired slots.
The bolts should stay up just high enough so that the
intended slot in the bracket can be hooked in. Place the
speaker in the correct position and tighten both M8 bolts.
Attach the drop safety wire to one of the M10 flying points.
The other end of the wire is attached to a separate mounting
point on the wall.
Place the VEXO106 in your desired pitch angle and tighten
the bolts.
x2
Metal washer
1
