AUDAC MBK1 V Series Installation Manual

MBK1xxV
The MBK1xxV mounting bracket is specially designed for mounting the VEXO series speakers. These optional clever U-brackets
allow the easy installation of the VEXO series both horizontally and vertically, thanks to a provided slot the VEXO series speaker will
glide easily and safely into the bracket making installation a piece of cake.

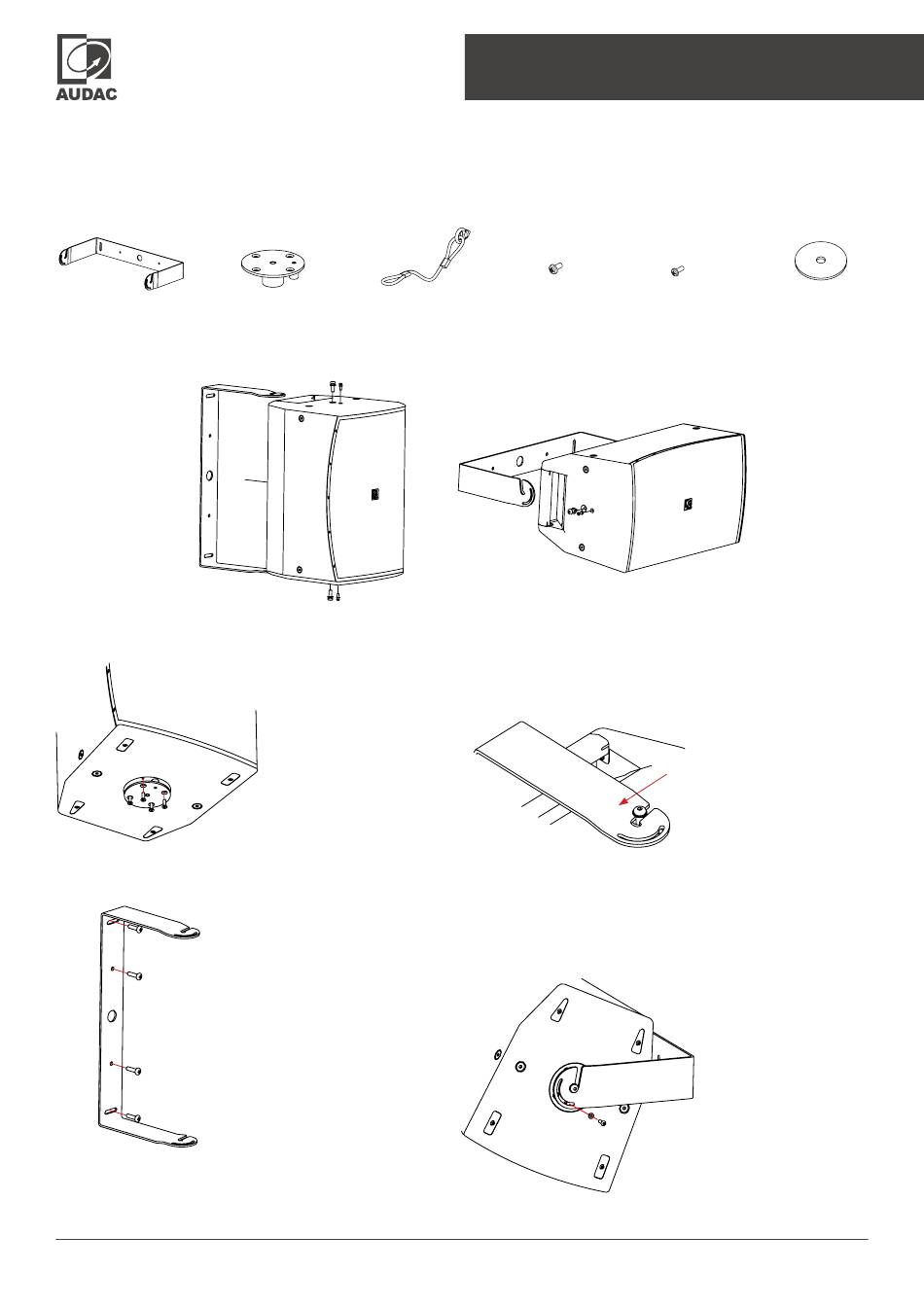

Included hardware:
U-bracket
M10 flange for bottom
Installation:
1
Drop safety wire
Step 1:
The pole flange adapter in
the bottom of the speaker
has to be replaced with a
screw flange adapter. This
is included with the optional
brackets. Attach with the
M6 screws.
Step 2:
Mount the U-bracket at a
designated location on the
wall or ceiling.
The screws are inserted
into the holes provided
on the bracket. Use the
correct fasteners for the
surface on which the
bracket is to be mounted.
Caution: choose fasteners
that are consistent with
all local build codes and
requirement to support the
weight of the loudspeaker.
Installation manual
x2
M10 screws with M6 screws with
washers
washers
MBK1xxV installation guide
x2
x2
Rubber washer
Step 3:
Insert the large (M10) bolts
into the center threaded
holes (top and bottom).
These should stay up just
high enough so that the
intended slot in the bracket
can be hooked in.
Put the speaker in the
correct position and
tighten both M10 bolts.
Attach the drop safety wire
to one of the M10 flying
points. The other end of
the wire is attached to a
separate mounting point
on the wall.
Step 4:
Add the additional (small)
safety/ positioning bolts.
This is placed in the
rotation slot of the bracket.
Place the VEXO1xx in
your desired pitch angle
(-90° - 35°) and tighten the
bolts.
