INSTRUCTIONS FOR THERMOWELD GROUNDING CONNECTIONS - TYPES CX-4, CX-8 & CX-10
CX-8 & CX-10
1. For CX-8, insert end of the cable into the mold
making sure the end of the cable is to the center of
the tap hole. For CX-10, place cable into mold. Do
not cut cable on CX-10 molds.
2. Follow instruction on reverse side of this sheet for
welding instructions. To prevent leakage of molten
metal, use packing material around cable opening(s)
in mold. Caution: Do not allow packing material to get
into weld cavity, as this will cause poor welds and
spewing of weld metal.

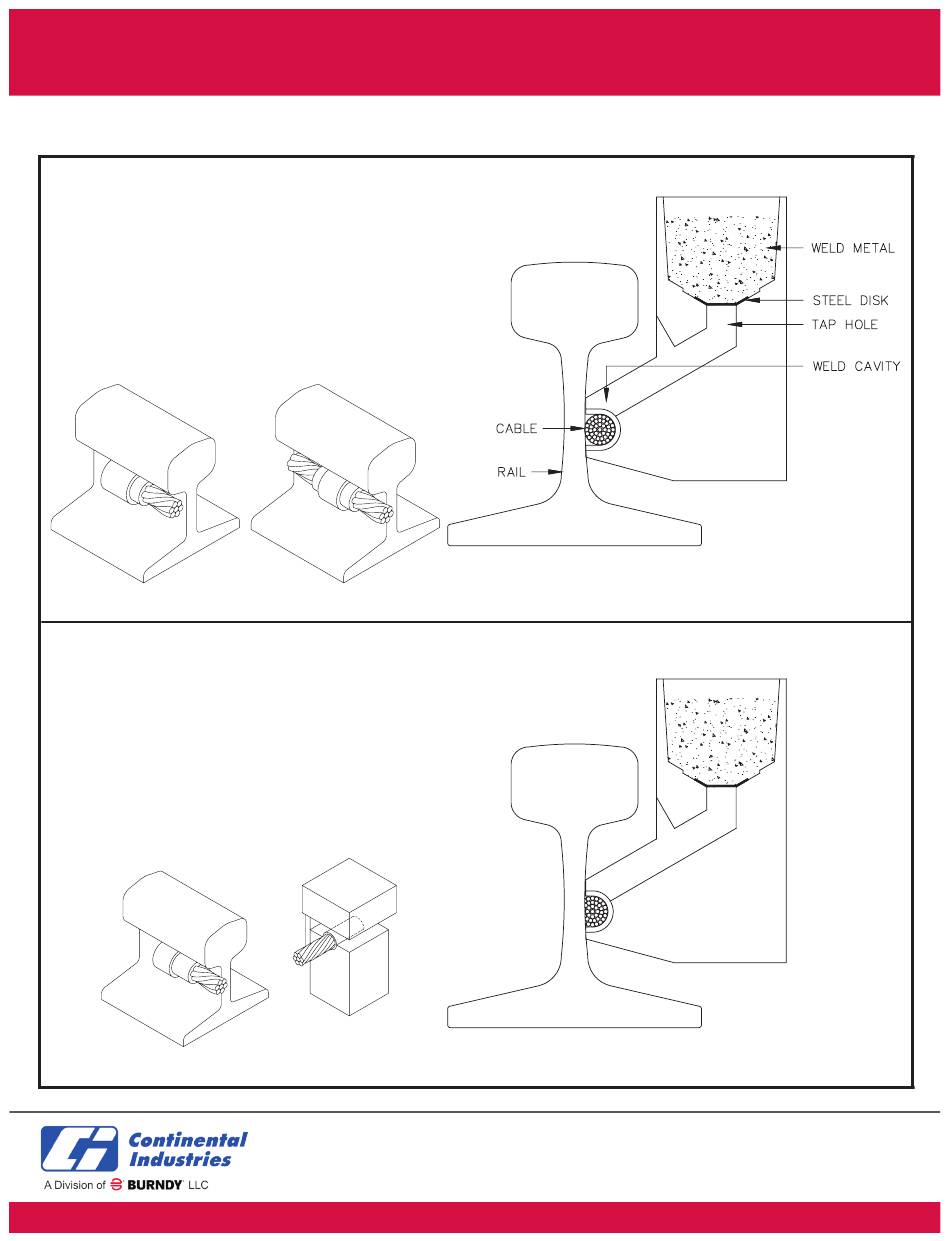

CX-8
CX-4
1. Place sleeve on the end of the cable
allowing cable to extend past end of
sleeve 1/8" and place into the hammer die.
2. Strike the lid of the hammer die with a
hammer to form the end of the cable.
3. Insert formed end of the cable into the
mold, making sure the end of the cable is
to the center of the tap hole.
4. Follow instruction on reverse side of this
sheet for welding instructions.
+1 (918) 627-5210 • 1-800-558-1373 • WWW.THERMOWELD.COM
ELECTRICAL GROUNDING • CATHODIC PROTECTION • ELECTRIC UTILITY • RAIL
®
CX-10
HAMMER DIE
Tel. +1.800.558.1373
Tel. +1.918.627.5210
www.thermoweld.com
The Contractors Choice
ECN 2552 REV "F" 03/05/13
