Burndy Continental Industries thermOweld CS-21 Instructions

thermOweld

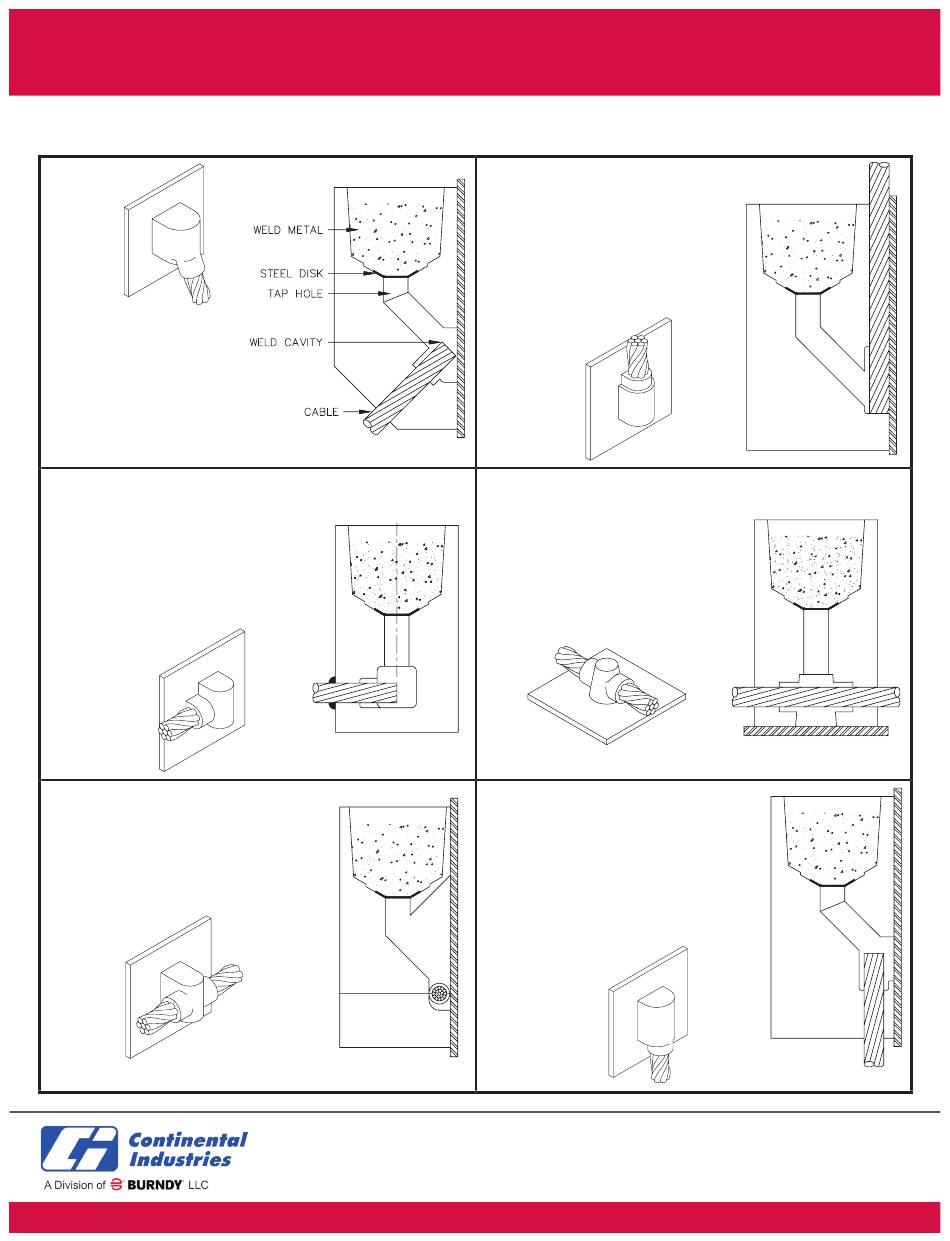

INSTRUCTIONS FOR THERMOWELD GROUNDING CONNECTIONS - CABLE TO CAST IRON
CS-28
Insert cable into the mold
until it touches the surface
being welded. Secure to
surface using 40-0106-32 chain
clamp or a C Clamp. See section
on preparation of cast iron before
welding.
CS-21
Place end of cable under the center
line of the tap hole. Secure to surface
using 40-0106-41 chain clamp or a
C Clamp. Pack cable opening with
packing material when necessary.
See section on preparation of cast
iron before welding.
CS-43
Place cable in mold and secure to
surface using a C Clamp. See section
on preparation of cast iron before
welding.
+1 (918) 627-5210 • 1-800-558-1373 • WWW.THERMOWELD.COM
ELECTRICAL GROUNDING • CATHODIC PROTECTION • ELECTRIC UTILITY • RAIL
®
The Contractors Choice
CS-30
For 4/0 cable and smaller, insert
cable in mold all the way to the
bottom of the weld cavity. For
250 MCM and larger cable, place
end of cable to center of tap hole.
See section on preparation of cast
iron before welding.
CS-42
Place cable in mold and hold
down on mold cover to prevent
from tipping. If welding to pipe,
use 40-0106-37 chain clamp.
See section on preparation of
cast iron before welding.
CS-29 & CS-45
Place end of cable at bottom of tap
hole. Secure mold to surface using
40-0106-32 or a C Clamp. See section
on preparation of cast iron before
welding. NOTE: Packing material is
required on type CS-29 for 1/0 and larger
cable to prevent leakage between cable
and steel surface.
Tel. +1.800.558.1373
Tel. +1.918.627.5210
www.thermoweld.com
ECN 2552 REV "E" 03/06/13 34-5381-69
